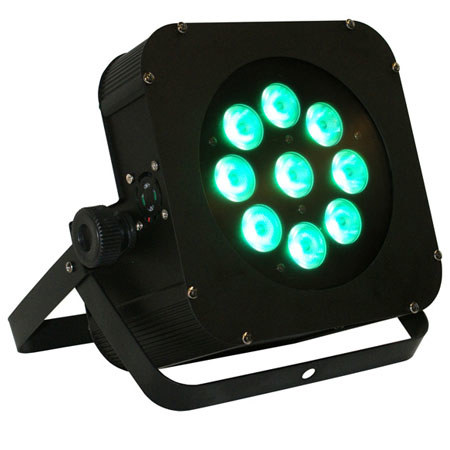

Blizzard Lighting The Puck3 Unplugged, 9x 3-Watt TRI-Color LED, 3/6 DMX Channels

Blizzard Lighting
SKU: BLPUCK3UNP MFR: PUCK3UN
Blizzard Lighting Puck3: Picture 1 thumbnail Blizzard Lighting Puck3: Picture 2 thumbnail Blizzard Lighting Puck3: Picture 3 thumbnail Blizzard Lighting Puck3: Picture 4 thumbnail Blizzard Lighting Puck3: Picture 5 thumbnail Blizzard Lighting Puck3: Picture 6 thumbnail Blizzard Lighting Puck3: Picture 7 thumbnail
30% Off

Our Price

$349.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Blizzard Lighting Puck3

The Puck3 Unplugged features all of the same great features as the Puck 3NX with the addition of an internal rechargeable, field-replaceable lithium-ion battery system.

Redesigned from the ground up to be brighter, lighter, stronger and smarter than the original Puck3, the Puck3 Unplugged builds on the original's runaway success and adds more of everything that made The Puck3 so popular! With about 10% more output thanks to optimized electronics and optics, quieter fans and extra protection for the fixture's 9x 3-watt Edison Edixeon Tri-Color LEDs, the Puck3 Unplugged offers a ton of features! Plus, it retains the DMX layout of the original Puck3 as well as its input/output setup for easy interoperability!

And, take full advantage of Blizzard's wiCICLE wireless DMX system without the need for external power thanks to the wiCICLE enabled DMX jacks! An innovative design provides power to the system directly from the fixture's DMX jack, meaning even fewer cords and less setup time.

An LED control panel and power daisy chain connectors make it flexible and perfect for uplighting, concerts, truss warming and virtually anywhere you need lots of color for notalotta green!

The Puck3 Unplugged features 3 and 6-channel control modes which means it works great with any type of controller, including popular 3-channel easy controllers. Plus, the built-in 4 character/4 button LED control panel allows total control over the fixture, including sound active and standalone modes, display invert and service hour readout.

Blizzard Lighting Puck3 Features

  • Superior color mixing via 9x 3-watt TRI-Color LEDs
  • Variable electronic strobe
  • Variable electronic dimmer
  • Built-in automated programs via DMX and master/slave
  • Built-in sound active programs
  • Full color mixing in standalone and master/slave
  • RGB Dimming (3-Channel) and extended (6-Channel) DMX modes
  • Ultra Long-life intelion Lithium-Ion Battery System
  • Durable acrylic lens protector for added LED protection
  • 4-Button LED control panel for easy programming
  • Light source: 9x 3-watt TRI-Color Edison Edixeon LEDs
  • Dual bracket for flexibility in mounting
  • Power outlet for fixture linking (MAX 3A at 120VAC)
  • Ultra-quiet fan for cool operation all night long
  • wiCICLE Enabled functionality allows plug-and-play operation with wiCICLE Brand Wireless DMX system

Blizzard Lighting Puck3 Specifications

Operating Voltage
90-230VAC, 50-60 Hertz
Fuse
2A 250V
Power Consumption
35W
Light Source
LED 9x 3-watt TRI-Color LED's 60K hrs.
Optical Beam Angle
25 deg.; 29 deg. field
Luminous Intensity
7,160 Lux at 1m (Full White)
Red 1,550 Lux at 1m
Green 2,250 Lux at 1m
Blue 2,930 Lux at 1m
Max. Operating Temperature
104 degrees F (40 degrees C) ambient
Protocol
USITT DMX-512
DMX Channels
3 or 6 (User Selectable)
Input
3-pin XLR Male
Output
3-pin XLR Female
Other Operating Modes
Standalone, Master/Slave, Sound Active, Color Preset, Standalone color mixing
Battery Type/Rating
Intelion Field-replaceable Lithium-Ion, 22.2V 6300mAh
