Blackmagic Design UltraStudio 4K Thunderbolt 2 External 1RU Rack Mount & Table-Top I/O Device Box, 2x 20Gb/s Thunderbolt 2 Ports

SKU: BMDBKULSR4K2 MFR: BDLKULSR4K2
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$995.00 List Price

Our Price

$945.25 $37 per week
Free Expedited Shipping
Qty:
Add to Wishlist In Stock

About the Blackmagic Design UltraStudio 4K

The BlackMagic Design UltraStudio 4K Thunderbolt 2 is an external 1RU/table-top I/O device with two 20Gb/s Thunderbolt ports. It captures DCI 4K 4:2:2 or UHD 4K YUV 4:2:2 by single-link 6G-SDI up to 30p and by dual-link 6G-SDI from 50p to 60p; 1080p RGB 4:4:4 by single-link 3G-SDI; 1080p 4:2:2 by single-link HD-SDI; 1080p 4:4:4 by dual-link HD-SDI; and DCI/UHD 4K 4:2:2 by HDMI. 4K can be input/output compressed and uncompressed. The SDI inputs also support dual-channel 2D/3D stereoscopic workflows. UltraStudio 4K is capable of hardware-based HD down/up/cross conversion.

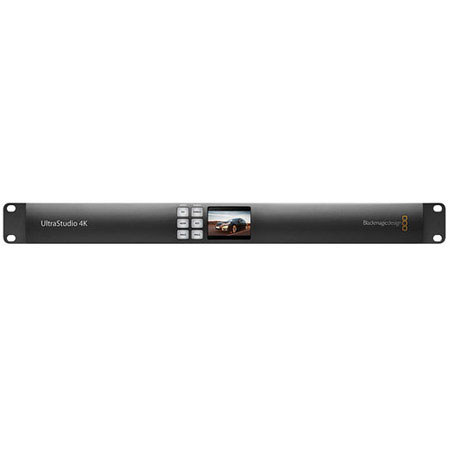

The other connections are Component and Composite on BNC, 2-channel analog audio on XLR, 2-channel AES/EBU audio on BNC, timecode input and output on XLR, Blackburst and Tri-Sync and RS-422 deck control. A color LCD and six quick-access video and audio input buttons are built in on the front panel.

Blackmagic Design UltraStudio 4K Includes

  • BlackMagic Design UltraStudio 4K Thunderbolt 2 External 1RU Rack Mount & Table-Top I/O Device Box
  • Software CD (Media Express, Disk Speed Test, LiveKey, BlackMagic Design System Preferences, BlackMagic Design Driver on Mac OS X )
  • BlackMagic Design 3 Year Warranty

Blackmagic Design UltraStudio 4K Features

  • UltraStudio 4K Thunderbolt 2 supports popular compressed video formats such as ProRes and DNxHD as well as 10-bit uncompressed video. When working with uncompressed video all captured images are a perfect pixel-for-pixel clone of the source without any quality loss
  • UltraStudio 4K Thunderbolt 2 features built-in 6G-SDI connections that operate at four times the speed of regular HD-SDI, meaning you can capture Ultra HD and 4K with only one BNC cable instead of four.
  • UltraStudio 4K Thunderbolt 2 also supports dual stream 3D with capture and playback of two independent channels.
  • Thunderbolt ensures low latency and highly accurate time synchronization for high quality capture and playback. UltraStudio 4K Thunderbolt 2 features 20Gb/s Thunderbolt 2 with loop thru and dual link 6G-SDI, the combination perfect for 3D stereoscopic workflows, Ultra HD and DCI 4K.

Blackmagic Design UltraStudio 4K Specifications

SDI Video Input 2x 10-bit SD/HD/Ultra HD/4K (2D/3D switchable)
Supports 3 Gb/s and 6 Gb/s dual link 4:2:2/4:4:4
4K and 1080p formats supported:
DCI / UHD 4K 4:2:2 by single-link 6G-SDI
1080p RGB 4:4:4 by single-link 3G-SDI
1080p 4:2:2 by single-link HD-SDI
1080p 4:4:4 by dual-link HD-SDI
SDI Video Loop 2x reclocked, 10-bit SD, HD, 3G-SDI, 6G-SDI
SDI Video Output 2x 10-bit SD/HD/3G/Ultra HD/4K (2D/3D switchable)
Supports 3 Gb/s and 6 Gb/s dual link 4:2:2/4:4:4
4K and 1080p formats supported:
DCI / UHD 4K 4:2:2 by single-link 6G-SDI
1080p RGB 4:4:4 by single-link 3G-SDI
1080p 4:2:2 by single-link HD-SDI
1080p 4:4:4 by dual-link HD-SDI
Analog Video Input 1x Component YUV on 3 BNCs
1x Composite on 1 BNC
Analog Video Output 1x Component YUV on 3 BNCs
1x composite on 1 BNC
HDMI Video Input 1x HDMI type A connector including 3D frame packing, Ultra HD and 4K support
4K format supported:
DCI 4K 4:2:2 by HDMI
HDMI Video Output 1x HDMI type A connector including 3D frame packing, Ultra HD and 4K support
4K format supported:
DCI 4K 4:2:2 by HDMI
Analog Audio Input 2 channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connections
Analog Audio Output 2 channels of professional balanced analog audio via XLR connectors
AES/EBU Audio Input 2 channels unbalanced with sample rate converter on BNC connectors
AES/EBU Audio Output 2 channels unbalanced with sample rate converter on BNC connector
SDI Audio Input 8 channels embedded in SD
16 channels embedded in HD
16 channels embedded in Ultra HD and 4K
SDI Audio Output 8 channels embedded in SD
16 channels embedded in HD
16 channels embedded in Ultra HD and 4K
HDMI Audio Input 8 channels embedded in SD, HD, 2K, Ultra HD and 4K
HDMI Audio Output 8 channels embedded in SD, HD, 2K, Ultra HD and 4K
Timecode Input 1x XLR for LTC input
Timecode Output 1x XLR for LTC output
Sync Input Blackburst in SD or Tri-Sync in HD
Device Control Sony compatible RS-422 deck control port
Serial ports Tx/Rx direction reversible under software control
Computer Interface 2x Thunderbolt 2
Supported Codecs AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4
Supported Applications: 1 Apple Final Cut Pro X, Adobe Premiere Pro, Avid Media Composer, Adobe After Effects, Nuke - The Foundry, DaVinci Resolve, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, Adobe Photoshop, Avid Symphony, Avid News Cutter, Tools On Air just:in / live:cut / just:play / just:live, Softron OnTheAir Video/ MovieRecorder / OnTheAir CG, Flash Media Encoder
Supported Applications: 2 Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidcaster Pro / Studio / Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Harris Infocaster
Internal Software Upgrade Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
4K Format Support: SDI 3840x2160p/23.98, 3840x2160p/24, 3840x2160p/25, 3840x2160p29.97, 3840x2160p30, 3840x2160p50, 3840x2160p59.94, 3840x2160p60, 4096x2160p23.98, 4096x2160p24, 4096x2160p25, 4096x2160p29.97, 4096x2160p30, 4096x2160p50, 4096x2160p59.94, 4096x2160p60
4K Format Support: HDMI 3840x2160p/23.98, 3840x2160p/24, 3840x2160p/25, 3840x2160p29.97, 3840x2160p30, 4096x2160p23.98, 4096x2160p24
HD Format Support: SDI 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080p50, 1080i59.94, 1080p59.94, 1080i60 and 1080p60
HD Format Support: HDMI 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080p50, 1080i59.94, 1080p59.94, 1080i60 and 1080p60
SD Format Support SDI: 625/25 PAL, 525/29.97 NTSC
HDMI: 625/25 PAL, 525/29.97 NTSC
Compliance SDI: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M level B, ITU-R BT.656 and ITU-R BT.601
HDMI: HDMI 1.4b
SDI Video Sampling HD and 4K at up to 30p at 4:2:2 and 4:4:4
(anything above 30p in either HD or UHD will be sampled at 4:2:2)
Color Precision SDI / HDMI: 10-bit
SDI Color Space REC 601, REC 709
SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit
SDI Metadata Support VITC read for 3:2 pulldown removal
VANC capture and playback using up to 3 lines of video in file
HD RP188
Closed captioning
HDMI Resolution Pixel for pixel up to 4K resolutions
HDMI Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Colorspace Conversion Hardware based real-time
3D Processing Dual stream and frame packed capture and playback
HD Down Conversion Built in, high quality hardware down converter outputs HD-SDI on SDI A output, SD-SDI on SDI B output and Composite and S-Video when working in HD video formats on playback. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
HD Up Conversion Built-in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 pillarbox and 16:9 zoom. HD outputs via HD-SDI, HDMI and component analog.
HD Cross Conversion Built in, high quality hardware cross conversion from 720HD to 1080HD and 1080HD to 720HD on playback.
Real Time Effects Apple Final Cut Pro internal effects
Adobe Premiere Pro Mercury Playback Engine effects
Avid Media Composer internal effects
System Requirements Mac with Thunderbolt or Thunderbolt 2 and OS X 10.8 Mountain Lion, OS X 10.9 Mavericks, or later
Power 1x built-in international AC power supply with IEC C14 inlet 120-240 V, 50-60 Hz
Operating Temperature 32 to 104deg.F (5 to 40deg.C)
Storage Temperature -4deg. to 113deg.F (-20 to 45deg.C)
Relative Humidity 0 to 90% non-condensing
Safety Compliance FCC, CE, C-Tick
Dimensions 19 x 5.59 x 1.73" (48.2 x 14.2 x 4.4 cm)
Weight 3.7 lbs (1.68 kg)
