Blackmagic Design

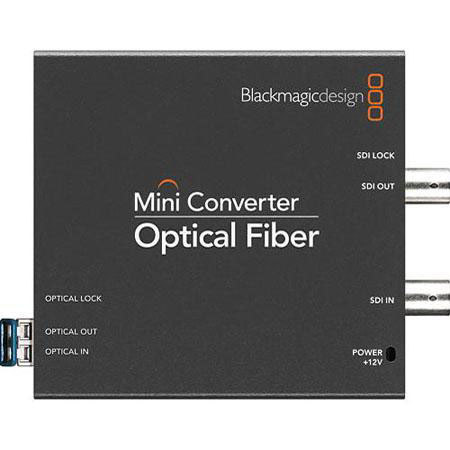

Blackmagic Design Mini Converter Optical Fiber, SDI to HDMI Video with Embedded HDMI Audio, Plus Balanced AES/EBU or Analog Audio

SKU: BMMCOF MFR: CONVMOF
Buy together and save
Save up to $299.99 with bundle.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$295.00 List Price

Our Price

$280.25 $11 per week
Free Expedited Shipping
Qty:
Add to Wishlist In Stock

About this item

BlackMagic Design Mini Converter SDI to HDMI converts from SDI to HDMI video with embedded HDMI audio, plus balanced AES/EBU or analog audio. Imagine using big screen televisions and video projectors for broadcast video monitoring! Now you can easily connect HDMI displays to SDI based equipment.

Key Features

  • Auto Switching SD and HD: Mini Converters instantly switch between standard definition and high definition video formats and changeover is automatic when the video input changes.
  • Redundant SDI Input: Mini Converters feature a unique redundant input for mission critical tasks such as broadcast or live events.
  • New 3 Gb/s SDI Technology: Only Mini Converters include the latest 3 Gb/s SDI technology and upgrades can be loaded via the built in USB connection for future video format compatibility.
  • Built in AES/EBU or Analog Audio: Standard 1/4 inch jacks are built in for balanced analog or AES/EBU audio.
  • High Quality: Mini Converters are built to highest quality standards with low SDI jitter so you get the longest SDI cable lengths combined with multiple internal power supplies for ultra low noise broadcast quality analog video and audio.
  • International Power Supply: Unlike other converters, a universal power supply is included with international socket adapters for all countries.

Technical Specs

SDI Video Input Switchable between SD, HD and 3 Gb/s SDI.
SDI Redundant Input Automatically switches over if main SDI input is lost.
SDI Video Outputs Automatically matches the SD, HD and 3 Gb/s SDI video input.
Multi Rate Support Auto detection of HD or standard definition SDI inputs.
Updates and Configuration Via USB 2.0 high speed. (480 Mb/s)
Re-clocking Yes
Analog Audio 2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
AES/EBU Digital Audio 2 channels of professional balanced digital with standard 1/4 inch jack connections.
HDMI HDMI out
Analog Video None
SDI Format Support 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI.
SDI Video Sampling 4:2:2
SDI Video Rates SDI video connections are switchable between standard definition and high definition.
SDI Color Precision 4:2:2
SDI Color Space YUV
SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit.
SDI Auto Switching Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI.
Analog Format Support 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
Analog Color Precision 4:2:2
Analog Color Space YUV
HDMI Format Support 625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC, 1080p23.98/24, 1080i50, 1080i59.94/60, 720p50 and 720p59.94/60.
HDMI Color Precision 4:2:2 and 4:4:4
HDMI Color Space YUV and RGB
Copy Protection For legal reasons, capture devices from Blackmagic Design are designed not to capture, convert or transmit video or audio from copy-protected sources, e.g. video devices using HDCP.
Format Conversion None
110 Volt Power Consumption 82 mA
220 Volt Power Consumption 41 mA
Software Control Mac OS X and Windows software upgrade via USB.
Settings Control Mini Switches or USB software.
Firmware Upgrade Via included firmware updater application.
Power Supply +12V universal power supply included with international socket adapters for all countries. Cable tie point.
