Blackmagic Design

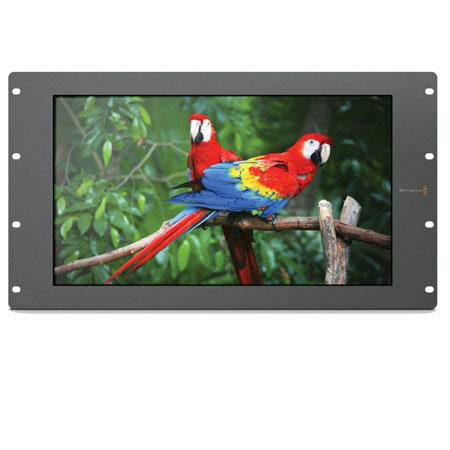

Blackmagic Design SmartView HD 17" Rackmount Monitor, Ethernet Control, USB 2.0

SKU: BMSVHD MFR: HDL-SMTVHD
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$895.00 List Price

Our Price

$850.25
Free Shipping
Qty:

Add to Wishlist In Stock

About this item

BlackMagic Design SmartView HD features an amazing 17" LCD screen that lets you monitor SD, HD and 3Gb/s SDI video in full resolution HD. Just as impressive is its ultra slim, 6RU rack mountable design. Only an inch thick, it's the perfect size for all your SDI monitoring needs. What's more, SmartView HD can be conveniently adjusted from your computer via Ethernet.

Key Features

  • Large 17 inch LCD display in a 6 rack unit size chassis, less than 1 inch thick
  • SDI/HD-SDI/3G-SDI input with re-clocked loop outputs
  • Ethernet input with loop output for connecting to computers for central adjustments
  • Tally input allows red, green or blue tally indication
  • Control software panel included free for Windows and Mac OS X
  • Ideal for use in broadcast, post production and camera monitoring for switchers

Technical Specs

SDI Video Input Switchable between SD, HD and 3 GB/s SDI. Reclocked loop through output
Multi Rate Support Auto Detection of 2K, HD or standard definition inputs
Updates and Configuration Via USB 2.0 high speed (480 Mb/s
Ethernet 10/100 BaseT with loop though
Tally 9-pin D connector
SDI Format Support 525i59.94, 625i50, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98,1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97,1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080p/23.98, 2048x1080p/24, 2048x1080p/25,2048x1080PsF/23.98, 2048x1080PsF/24, 2048x1080PsF/25, 2048x1556PsF/23.98, 2048x1556PsF/24,2048x1556PsF/25
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M
SDI Color Space REC 601, REC 709
SDI Auto Switching Automatically selects between SD, HD and 3 Gb/s SDI
Video Sampling 4:2:2 and 4:4:4
Color Precision 6-bit
Software Control Mac OS X and Windows
Settings Control Via USB or Ethernet
Rack Height 6 Rack Units
Displays 1
Display Size 17.3" diagonal
Display Element TFT Active Matrix LCD
Display Resolution 1920 x 1080 pixels
Response 12ms
Contrast Ratio Typically 650:1
Color Depth 262,144 Colors
Display Orientation Displays can rotate upside down for optimum viewing angle
Firmware Upgrade Via included firmware updater software
Power Supply 12V universal power supply included with international socket adapters for all countries
Power Consumption 20 Watts
Operational Voltage Range 12V - 15V
