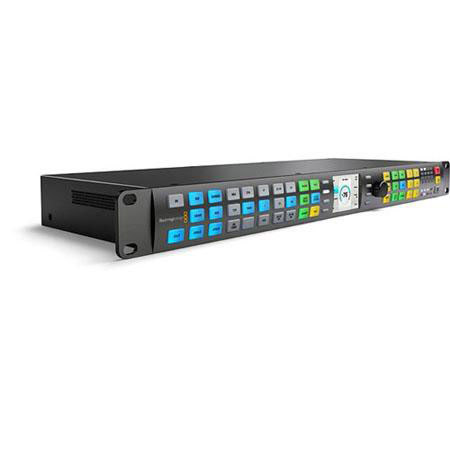

BlackMagic Design Teranex 3D Processor

SKU: BMT3DP MFR: TERANEX3D444
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$3,995.00 List Price

Our Price

$3,795.25
Free Shipping
Qty:

Add to Wishlist In Stock

About the Blackmagic Design TERANEX3D444

The BlackMagic Design Teranex 3D Processor features patented processing technology for the highest quality conversion between video standards, frame rates and resolutions. The incredible power of Teranex processing includes; Up Conversion, Down Conversion, SD/HD Cross Conversion, SD/HD Standards Conversion, Cadence Detect and Remove, Noise Reduction, Adjustable Scaling, Aspect Radio Conversion, Smart Aspect, Converts Timecode, Includes 16 Channel Audio, 3D Camera Align, 3D Dual Channel Standards Conversion, 3D Simulation.

When working in high end formats such as 4:4:4 and 3D, the Teranex 3D Processor includes dual SD/HD and 3 Gb/s SDI input and output for dual link 4:4:4 as well as single link 3 Gb/s SDI 4:4:4. The dual channels also allow true full resolution left and right eye 3D processing where both eyes are converted at the same time in perfect sync! When running true full resolution dual stream 3D, the HDMI connection and Thunderbolt capture and playback support dual stream 3D via the single cable.

Blackmagic Design TERANEX3D444 Includes

  • BlackMagic Design Teranex 3D Processor
  • Software Bundle
  • BlackMagic Design 1 Year Limited Warranty

Blackmagic Design TERANEX3D444 Features

  • High Quality De-interlace: Teranex quality starts with one of the world's highest quality and most precise de-interlacers. Teranex features proprietary and patented PixelMotion de-interlacing algorithms so you get improved image quality by maintaining vertical resolution
  • Up Conversion: When converting from NTSC or PAL SD up to 720HD or 1080HD, Teranex is perfect because it features a wide range of aspect ratio options and multi-direction diagonal filters so "jaggies" are eliminated and you get clean HD looking images!
  • Down Conversion: Teranex down conversion allows amazing SD feeds from your HD sources. 1080HD and 720HD video sources, combined with the de-interlace and multi-direction diagonal filters, give you great SD images with a range of aspect choices
  • SD/HD Cross Conversion: Often work is completed in the native film frame rate of 23.98 or 24 fps and then broadcast in 25 or 29.97 fps. Teranex converts between frame rates such as these, adding and removing cadence as required. Move between video and film worlds with ease
  • SD/HD Standards Conversion: Linear standards conversion is easy with the powerful SIMD processor which can analyze and calculate pixels between frames as easily as anywhere in the frame! This is why Teranex performs the world's best linear standards conversion available!
  • Cadence Detect and Remove: Teranex is unique because it can automatically remove cadence (3:2 pulldown) from video when converting 24 fps, even when the footage has been previously edited and suffers from flash fields. That's perfect for mastering clean online content!
  • Noise Reduction: Remove unwanted noise from transmission links, videotape, or even camera sources. Teranex includes award winning temporal recursive noise reduction. Reducing noise allows more efficient video compression when authoring content!
  • Adjustable Scaling: For times when you need to adjust images with complete freedom, Teranex includes fully adjustable scaling. Use adjustable scaling when you need to set custom aspect ratios, or even for reframing shots to remove image edge artifacts
  • Aspect Ratio Conversion: Teranex supports a wide range of aspect ratios, including variable and fixed aspect ratios as well as active fill. Also included is the proprietary Smart aspect that warps images from 4:3 to 16:9 without visible stretching of the image that normally occurs
  • Audio, Timecode and Subtitles: Video includes a lot more than images and Teranex also supports conversion of up to 16 audio channels plus timecode and closed caption VANC data. This means timecode matches during conversion to the 0 frames and subtitles are retained
  • Dual Channel 3D and 4:4:4: When working in high end formats such as 4:4:4 and 3D, the Teranex 3D model includes dual SD/HD and 3 Gb/s SDI input and output for dual link 4:4:4 as well as single link 3 Gb/s SDI 4:4:4
  • Advanced 3D Tools: The Teranex 3D Processor includes powerful 3D processing that allows you to move to 3D without breaking the bank! You get full resolution dual stream 3D format and frame-rate conversions plus decoding and encoding of 3D streams
  • 3D Processing: The Teranex 3D Processor includes dual SDI channels so it allows all video conversion to be locked together perfectly between channels. Only Teranex lets you process both left and right eyes in full resolution and in absolute sync
  • 3D Conversions: With so many types of 3D formats available, it's vital to be able to convert between them quickly and easily. The Teranex 3D model lets you convert using dual stream full resolution, side by side and top and bottom 3D formats with ease
  • 3D Simulation: Take 2D feeds into a 3D live production, or convert 2D content into 3D with the Teranex 3D simulator! The patent pending 3D simulator will convert any SD or HD content into amazing dual stream 3D that needs to be seen to be believed
  • 3D Camera Align: The 3D camera align feature of the Teranex 3D Processor lets you frame sync even unlocked left and right eye signals and fix geometry errors in the camera rig. You can even correct the alignment of two consumer cameras for incredible 3D images

Blackmagic Design TERANEX3D444 Specifications

SDI Video Input 2 x 10-bit SD, HD, 3Gb/s HD and 2K switchable. Usable as dual link HD-SDI for 4:2:2 or 4:4:4 connection or 3 Gb/s for HD-SDI 4:4:4 or 2K. Also usable for dual stream 3D HD-SDI
SDI Video Loop 2 x reclocked 10-bit SD, HD, 3Gb/s HD and 2K switchable
SDI Video Output 2 x 10-bit SD, HD, 3Gb/s HD and 2K switchable. Usable as dual link HD-SDI for 4:2:2 or 4:4:4 connection or 3 Gb/s for HD-SDI 4:4:4 or 2K. Also usable for dual stream 3D HD-SDI
Analog Video Input 1 x Component YUV on 3 BNCs switchable to Composite. Component supports HD and SD
Analog Video Output 1 x Component YUV on 3 BNCs switchable to Composite. Component supports HD and SD
HDMI Video Input 1 x HDMI type A connector including 3D frame packing support
HDMI Video Output 1 x HDMI type A connector including 3D frame packing support
Analog Audio Input 4 x inputs of professional balanced analog audio on DB-25 for 4 audio channels. Pinout compatible with Yamaha, Mackie, Sony and Apogee connectors.
Analog Audio Output 4 x outputs of professional balanced analog audio on DB-25 for 4 audio channels. Pinout compatible with Yamaha, Mackie, Sony and Apogee connectors
AES/EBU Audio Input 8 x inputs on DB-25 for 8 audio channels. Sample rate converted. Pinout compatible with Yamaha, Mackie, Sony and Apogee connectors
AES/EBU Audio Output 8 x outputs on DB-25 for 8 audio channels. Pinout compatible with Yamaha, Mackie, Sony and Apogee connectors
SDI Audio Input 16 channels in SD, HD and 2K. (16 channels in HD and 2K and 8 channels in SD for capture via Thunderbolt port)
SDI Audio Output 16 channels in SD, HD and 2K. (16 channels in HD and 2K and 8 channels in SD for playback via Thunderbolt port)
HDMI Audio Input 8 Channels
HDMI Audio Output 8 Channels
Dolby Support Built-In Dolby E/AC-3 pass through with same frame rates
Dolby Support Optional Dolby E/AC-3 support in frame rate conversions with the optional Dolby E/AC-3 decode and encode modules. Dolby metadata support using RS-485 on DB-9
Multi Rate Support SDI and component analog video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD and 2K SDI. HDMI connections are switchable between standard definition, high definition and 3D high definition with frame packing
Sync Input Blackburst in SD or TriSync HD
Device Control Sony compatible RS-422 deck control port. Serial ports TxRx direction-reversible under software control
Computer Interface Thunderbolt port for capture and playback of video and audio.
USB 2.0 mini B port for software updates and configuration.
Processor Interface Illuminated pushbuttons, status LEDs and LCD with easy onscreen menus
Power 2 x built-in international AC power supplies with IEC C14 inlets for failover redundancy. 120-240V, 50-60Hz
SD Format Support 625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC
HD Format Support 720p50, 720p59.94, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080i50, 1080p50, 1080i59.94 and 1080p59.94
2K Format Support 2048 x 1080PsF23.98, 2048 x 1080p23.98, 2048 x 1080PsF24 and 2048 x 1080p24, 2048 x 1080PsF25 and 2048 x 1080p25, 2048 x 1080PsF29.97 and 2048 x 1080p29.97.
2048 x 1556PsF23.98, 2048 x 1556p23.98, 2048 x 1556PsF24, 2048 x 1556p24, 2048 x 1556PsF25 and 2048 x 1556p25
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
SDI Metadata Support VITC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M. (Capture and playback via Thunderbolt port supports RP188, VANC using up to 3 lines of video in file including closed captioning.)
Audio Sampling Television standard sample rate of 48 kHz and 24-bit
Video Sampling 4:2:2 and 4:4:4 SDI switchable
Color Precision 10-bit
Color Space REC 601, REC 709
HD-SDI 3D Support Top and bottom, side by side, dual stream
HDMI Configuration HDMI automatically configures to connected display
HDMI Resolution Pixel for pixel HD resolution input to connected device.
HDMI Color Precision 4:2:2 10-bit
HDMI 3D Support Top and bottom, side by side, frame packing
SDI Format Support 525 NTSC, 625 PAL, 720HD, 1080HD and 2K 2048 x 1080 switchable
Analog Format Support 525 NTSC, 625 PAL, 720HD and 1080HD switchable
Analog Component NTSC/PAL 10-bit and 16x Over-sampled Output.
HD 10-bit and 4x Over-sampled Output
Analog Composite NTSC/PAL 10-bit and 16x Over-sampled Output
Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content
Colorspace Conversion Hardware based real time
Format Conversion Real time up conversion, down conversion, cross conversion and SD/HD standards conversion on both capture and playback. All conversions are also available on 3D formats
Aspect Ratio Conversion Real time variable and fixed aspect ratio conversion including proprietary "SMART" aspect
Real Time Video Processing Includes noise reduction, cadence detection with insertion/removal and cadence correction, scene cut detection, color correction and proc amp control
Real Time 3D Processing 3D synchronization, patent pending 2D to 3D simulation and 3D camera align
Real Time Effects during playback Apple Final Cut Pro internal effects. Adobe Premiere Pro Mercury Playback Engine effects. Avid Media Composer 6 internal effects
Software Control Software control utility included free for changing settings via Windows 7 and Mac OS X
Internal Software Upgrade Automatically upgrades when new software is connected via USB 2.0
