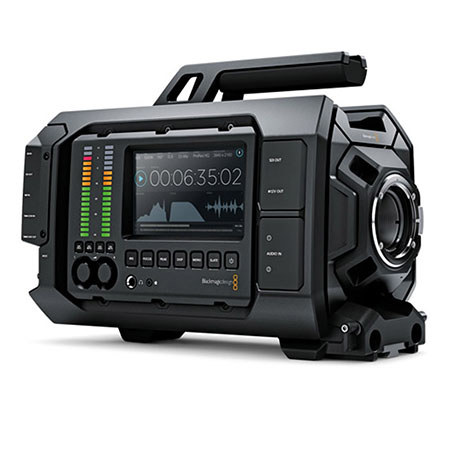

Blackmagic Design URSA Camera with EF Mount, 4K Super 35 Sensor with Global Shutter, 12G-SDI Video Output, 10.1" TFT-LCD, Dual CFast Recorders, Scopes

Blackmagic Design
SKU: BMURSAEF MFR: CINECAMURSA4K/EF
Blackmagic Design URSA: Picture 1 thumbnail Blackmagic Design URSA: Picture 2 thumbnail Blackmagic Design URSA: Picture 3 thumbnail Blackmagic Design URSA: Picture 4 thumbnail Blackmagic Design URSA: Picture 5 thumbnail Blackmagic Design URSA: Picture 6 thumbnail Blackmagic Design URSA: Picture 7 thumbnail Blackmagic Design URSA: Picture 8 thumbnail Blackmagic Design URSA: Picture 9 thumbnail Blackmagic Design URSA: Picture 10 thumbnail Blackmagic Design URSA: Picture 11 thumbnail Blackmagic Design URSA: Picture 12 thumbnail Blackmagic Design URSA: Picture 13 thumbnail Blackmagic Design URSA: Picture 14 thumbnail Blackmagic Design URSA: Picture 15 thumbnail

Free Wise CFast 2.0 128GB & Blackmagic Design CFast 2.0 Card Reader ($649.98) - Show/Hide Details

Original Price: $5,644.98 Free Item Value: -$649.98

Kit Savings

Our Price

$4,995.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Blackmagic Design URSA

This Blackmagic Design URSA Bundle comes with $649.98 worth of free accessories including a Wise CFast 2.0 128GB and a Blackmagic Design CFast 2.0 Card Reader and Shipping is free! .

The BlackMagic Design URSA Camera with EF Lens Mount is first high end digital film camera designed to revolutionize workflow on set. Built to handle the ergonomics of large film crews as well as single person use, URSA has everything built in, including a massive 10" fold out on set monitor, large user upgradeable Super 35 global shutter 4K image sensor, 12G-SDI and internal dual recorders. You can upgrade to the latest sensor technology in the future and keep your investment in the camera body.

Professional Digital Film Camera
The BlackMagic Design URSA is designed to be used on high end feature films, commercials, episodic television production, documentaries, electronic news gathering, music videos and more. When used on jobs with a large crew you can easily dress the camera with high quality cinema lenses, rails, follow focus, matte boxes and more. With built in scopes for exposure, focus and audio levels, it's easy for DOP's to get perfect results every time. The dedicated screen for camera assistants lets them check and update camera parameters independently of the DOP. If you're shooting solo then the large fold out on set monitor, built in scopes and internal recorder means you don't need any extra on set equipment because it's all built into the camera. That's a whole film set of equipment built into the one extremely portable design.

Rethinking Camera Design
The BlackMagic Design URSA features a larger professional size that has the space for powerful cooling that allows higher frame rates while keeping the chassis cool and the fan super quiet. The machined aluminum design is incredibly strong and has been designed for large film crew use and to be field upgradable to new sensors by the user. Each area of the camera has been divided into separate DOP, camera assistant and audio engineer work stations. The DOP station features a large 10" fold out on set monitor and separate 5" screen for settings, camera status and scopes. The camera assist station features a separate screen for camera settings, status and scopes and an audio station features audio meters, controls and audio connections. The big screen means you don't need extra on set equipment so it's easy to move around quickly between shots. Simply fold in the monitor and go.

Shoot in incredible quality Ultra HD
URSA is a true professional digital film camera with a 4K sensor, global shutter and an incredible 12 stops of dynamic range. The wide dynamic range blows away regular video cameras or even high end broadcast cameras, so you get dramatically better images that look like true digital film. The wide dynamic range preserves detail in dark shadows as well as bright highlights so you have a wider range of brightness levels to work with when color grading in post production. The extra large Super 35 size allows for creative shallow depth of field shooting and the high resolution Ultra HD 12 bit lossless Cinema DNG RAW means you get incredible quality. You can also shoot Ultra HD or HD in Apple ProRes for easy post production workflow with minimum storage requirements.

Dual Recorders for Non Stop Recording
BlackMagic Design URSA features dual recorders so you never need to stop recording to change media. That's critical if you are shooting an historical event, important interview or where you just cannot stop shooting. Simply load an empty CFast card into the second recorder and when the current card is full, the recording will continue onto the second card, allowing you to change out the full card and keep shooting. The built in recorders use new CFast card technology that allow recording up to 350MB/s for incredible speeds, perfect for high frame rate RAW recording. Imagine shooting RAW and then playing back for the crew on the massive 10" screen.

User Upgradeable Sensor and Mount
The BlackMagic Design URSA features a modular camera turret that can be simply removed by removing 4 simple bolts. The camera turret includes the sensor, lens mount and lens control connections and can be upgraded in the future when new types of sensors are developed. URSA EF includes the amazing 4K Super 35 image sensor with global shutter and an EF lens mount with active lens control. Now you can use low cost DSLR photo lenses from companies such as Canon, Zeiss and more.

Built in On Set Monitoring
Say goodbye to bulky on set monitors because you get a massive fold out 10" screen built into BlackMagic Design URSA, making it the world's biggest viewfinder. The screen is super bright so it's easy to see when shooting outdoors, even in direct sunlight, plus it features an ultra wide viewing angle so you can pan and tilt to extremes and still see crystal clear images. When shooting in Ultra HD, focus becomes extremely difficult on small viewfinder, however with a massive 10" screen in full HD, you can see your images in amazing detail for perfect focus, framing and exposure. Because the screen tilts you can shoot down low, or high up over crowds and easily tilt the screen up or down to see your shot.

Two Extra 5" Touch Screens
URSA features the world's most intuitive and advanced touch screen camera user interface. There are two 5" touch screens on both sides of the camera that put your settings, controls and monitoring tools at your fingertips. The left side gives you quick access to all major settings via a touch screen and a row of control buttons. That means you don't have to hunt through complicated menus to make changes. The right side displays settings like format, frame rate, shutter angle and more. There is a large prominent time code display, an animated histogram for checking levels, a scrolling audio waveform monitor with clipping indicators and a spectrum scope for helping you check and adjust focus.

Broadcast Connections
The BlackMagic Design URSA features standard broadcast connections so you don't need to worry about buying expensive custom cable. You get 12G-SDI output that can be down converted to HD or used directly at amazing Ultra HD quality. There's also a 12G-SDI input that can display return video on the 10" monitor when working on live events or an external video source. A separate SDI output is available for attaching external viewfinders and eye pieces. For audio, there are 2 professional XLR connections with 48v phantom power so you can use the audio industry's best quality microphones. You also get timecode in/out and a LANC connector for controlling the camera, lenses and accessories remotely.

Broadcast Standard Power
URSA uses a standard 4-pin 12V to 30V XLR broadcast power connector for plugging into external power supplies. There are also mounting points and a power transfer connector for mounting third party V-Mount and Anton/Bauer gold mount back plates and batteries onto the rear of the camera itself. This means you can integrate the battery as part of the camera itself. You also get a standard 4 pin XLR 12V output power connector so you can use a wide range of third party viewfinders without needing expensive custom cables. That means it's easy to integrate the camera with all of your existing gear and accessories.

Designed to be Rigged
To make it super easy to bolt on your favorite accessories, BlackMagic Design URSA has multiple mount points all over the camera. You get standard tripod quick release attach points on the bottom of the camera, so you can use industry standard tripod mounts. The viewfinder connection uses standard power and BNC SDI connections for any type of viewfinder, plus there is standard 3/8" threaded points on the top and handle of the camera for mounting anything you like. Standard battery mounts can be bolted to the rear of the camera and you can use standard rails in the rail mounts built into the camera base. No camera is so easy to rig up for any type of production.

DaVinci Resolve Software Included
BlackMagic Design URSA includes full DaVinci Resolve 11 software for Mac and Windows, so you get more color correction features that let you take advantage of URSA's amazing image quality. You can use the Resolve Live feature to grade live pictures direct from the camera. Imagine lighting your set and color grading all at the same time. You get the full creative power of primaries, secondaries, power windows and more! You also get DaVinci Resolve's advanced editing features including a full multi layer timeline with ripple, roll, slide and slip clip trimming and title tools. BlackMagic Design URSA and DaVinci Resolve mean you get a complete production and post production solution.

Blackmagic Design URSA Specifications

Camera: Effective Sensor Size
21.12mm x 11.88mm (Super 35)
Camera: Effective Resolution
3840 x 2160
Camera: Shooting Resolutions
3840 x 2160, 1920 x 1080
Camera: Frame Rates
3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.9, 3840 x 2160p30, 3840 x 2160p60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60, 1920 x 1080i50, 1920 x 1080i59.9 and 1920 x 1080i60
Camera: Sensor frame rate support
Up to 60 fps
Camera: Dynamic Range
12 stops
Camera: Focus
Focus button turns on peaking, focus bubbles, auto focus available on active lens mount
Camera: Iris Control
Iris button automatically adjusts the lens iris settings so no pixel is clipped in film mode. Scene average auto exposure in video mode
Camera: Lens Mount
EF Mount
Camera: Screen size
1 x 10.1" - 1920 x 1200
2 x 5" - 800 x 480
Camera: Screen Type
10.1" TFT-LCD
5" Integrated LCD capacitive touchscreen
Camera: Metadata Support
Automatic camera data and user data such as shot number, filenames and keywords
Camera: Controls
Touch screen menus on 5" screen. Push button controls for navigating menus
Camera: Microphone
Integrated mono microphone
Camera: Speaker
Integrated mono speaker
Camera: Mounting Options
Multiple 1/4"-20 UNC thread mounting on top of camera and on handle bar. Rosette on bottom. Integrated rods mounts compatible with 15mm Light Weight Support standard
Storage Type
CFast 2.0
Storage Rates
Approx 880 Mbps using Apple ProRes 422 (HQ) at 3840 x 2160. Approx 220 Mbps using Apple ProRes 422 (HQ) at 1920 x 1080
Compressed Recording Formats
Lossless compressed CinemaDNG RAW with film dynamic range at 3840 x 2160. Apple ProRes 422 (HQ) at 3840 x 2160 and 1920 x 1080 with either film or video dynamic range
SDI Video Output
1 x 12G-SDI 10-bit 4:2:2. 1 x 3G-SDI down converted for external monitoring
SDI Video Input
1 x 12G-SDI
Ref Input
1 x Reference Input
Timecode Input
1 x Timecode Input
Timecode Output
1 x Timecode Output
Analog Audio Input
2 x XLR analog switchable between mic and line levels. Phantom power support
Analog Audio Output
1/4" jack output for headphone monitoring
SDI Audio Output
2 channel
Remote Control
1 x 2.5mm LANC for Rec Start/Stop, Iris Control and Focus
Computer Interface
USB 2.0 Mini-B port for software updates.
SDI Compliance
SMPTE 292M
SDI Audio Sampling
48 kHz and 24-bit
Software Included
DaVinci Resolve grading software including Resolve USB dongle for Mac OS X and Windows
Blackmagic Media Express software
DiskSpeed Test
Operating Systems
Mac OS X 10.8 Mountain Lion or later
Windows 7 or later
Power Requirements
External Power Input:
1 x 4-pin XLR port for external power or battery use
External Power Output:
1 x 12V output using 4-pin XLR for powering external accessories such as EVF
Power: Rear camera mount compatible with industry standard V-mount or Gold Mount battery plates
Operating Temperature
0deg. to 40deg. C (32deg. to 104deg. F)
Storage Temperature
-20deg. to 45deg. C (-4deg. to 113deg. F)
Relative Humidity
0% to 90% non-condensing
Dimensions
12.34 x 6.12 x 9.63" / 31.34 x 15.54 x 24.46cm
Weight
16.53 lbs / 7.49 kg
Mfr #
CINECAMURSA4K/EF
SKU
BMURSAEF
Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

ROBERT G  Thanks, George, but I need a viewfinder while shooting hand held so I can see to focus and to eliminate bright light to allow me to see better than looking at a screen in direct sunlight. My work is what we call run and gun and lots of quick hand held video, so without a viewfinder, this will probably be a deal breaker for me. Thanks for the warning about Adorama?
ROBERT G  Will the BlackMagic camera for ENG have a viewfinder for hand held shooting? The large screen is great for tripod work, but without a viewfinder for hand held shooting, it would not work well.
Robert M  what is the correct V mount plate to buy for this camera?
Robert M  Thank you! We have added that to our order.
See more questions and answers
