Blackmagic Design

Blackmagic Design Ultrascope 3 Gb/s SDI and Optical Fiber SDI Scope

SKU: BMUS MFR: TVTEUS/PCI
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$695.00 List Price

Our Price

$660.25 $26 per week
Free Expedited Shipping
Qty:
Add to Wishlist In Stock

About this item

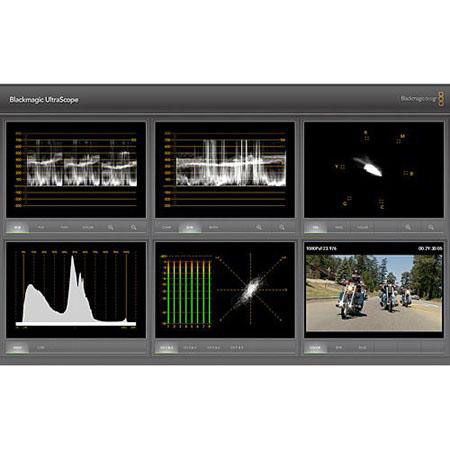

The BlackMagic Design Ultrascope can be simply plugged into any compatible Windows computer with a 24 inch monitor and it displays 6 live scope views simultaneously. UltraScope is engineering accurate and includes 3 Gb/s SDI plus 3 Gb/s optical fiber SDI. UltraScope auto detects SD, HD and 3 Gb/s SDI inputs.

What's Included With This Item

  • BlackMagic Design Ultrascope
  • UltraScope Software
  • BlackMagic Design Warranty

Key Features

  • Elegant and Engineering Accurate: It features your need when editing or color correcting and then, combined it with an elegant user interface that looks great when added to your studio! Simply plug into any compatible Windows computer with a 24 inch monitor.
  • Parade Display for Colorists: When color correcting video, nothing beats the real time RGB parade waveform view. You can see the color balance in blacks, mids and whites, so it's easy to balance colors and get your images looking perfect.
  • Waveform Display for Alignments: When adjusting video levels or matching black background levels when keying, the waveform display is ideal for this task! Waveform view has a setting that's luminance only or composite.
  • Component Vectorscope View: A vectorscope is the only way to see what color you have. When color correcting video, sometimes you need to know color has been removed or nulled out for accurate white balance and vectorscope view is perfect.
  • Histogram for Location Shoots: Almost all video need to be color corrected at some point in the post production process and so you never want to clip video whites or blacks when on a live shoot. Histogram view lets you see where the pixels are in your video.
  • Audio view for Monitoring Levels: Keep track of your audio levels at all times with 8 channels of audio metering, plus a stereo phase meter. The stereo phase meter plots left and right audio, as an XY scope display so you know exactly what your audio is at all times.
  • Picture View with VITC Timecode: The picture view lets you keep track of the video input so you always know what's going on and what video input is connected into your Blackmagic UltraScope. The video standard is automatically detected and displayed

Technical Specs

SDI Video Input 1 x 10 bit SD/HD switchable
SDI Video Output 1 x 10 bit loop thru SD/HD switchable
Optical Fiber Video Input 1 x 10 bit SD/HD switchable via LC connector
Optical Fiber Video Output 1 x 10 bit loop thru SD/HD switchable via LC connector
Supported Video formats 525i NTSC, 625i PAL, 720HD and 1080HD
SDI Audio Input 8 channel embedded in SD and HD
SDI Audio Output 8 channel embedded in SD and HD
Optical Fiber Audio Input 8 channel embedded in SD and HD
Optical Fiber Audio Output 8 channel embedded in SD and HD
Multiple Rate support Standard definition SDI and high definition SDI
Updates Firmware for cards built into software driver. Loaded at system start or via updater software
HD Format Support 1080p 23.98/24/50/59.94, 1080i50, 1080i59.94, 720p50 and 720p59.94.
SD Format Support 625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC.
SDI Compliance SMPTE 424M, 259M and 292/296M.
Video Sampling 4:2:2
Color Precision 4:2:2 10-bit
Color Space 4:2:2 YUV
SDI Metadata Support VITC read for 3:2 pulldown removal.
VANC capture and playback using up to 3 lines of video in file. HD RP188.
Colorspace Conversion Hardware based real time
Audio Sampling Television rate of 48kHz at 24 bit
Card type PCI Express 1 lane, compatible with 1, 4, 8 and 16 PCIe slots
Software Included Blackmagic UltraScope
Firmware Upgrade Firmware for cards built into software driver (Loaded at system start or via updater software)
Installation PCI Express 1 lane, compatible with 1, 4, 8, 16 lane PCI Express slots
Warranty Blackmagic Design 3 years limited warranty
