| Projection System |
DLP |
| Native Resolution |
SVGA(800 x 600) |
| Brightness |
2500 ANSI lumens |
| Contrast Ratio |
4000:1 |
| Display Color |
1.07 Billion Colors |
| Lens |
F=2.56-2.8, f=21-23.1mm |
| Aspect Ratio |
Native 4:3 (5 aspect ratio selectable) |
| Throw Ratio |
1.86 - 2.04 (52.5"@6.5ft) |
| Image Size (Diagonal) |
24"- 300" / 60.9 - 762 inches |
| Zoom Ratio |
Manual Zoom, 1.10:1 |
| Lamp Type |
220W |
| Lamp (Normal/Economic Mode) |
4500/6000hr |
| Keystone Adjustment |
1D, Vertical ± 40deg. |
| Projection Offset |
110%±5deg. |
| Resolution Support |
VGA(640 x 480) to UXGA(1600 x 1200) |
| Horizontal Frequency |
31K-99KHz |
| Vertical Scan Rate |
48-120Hz |

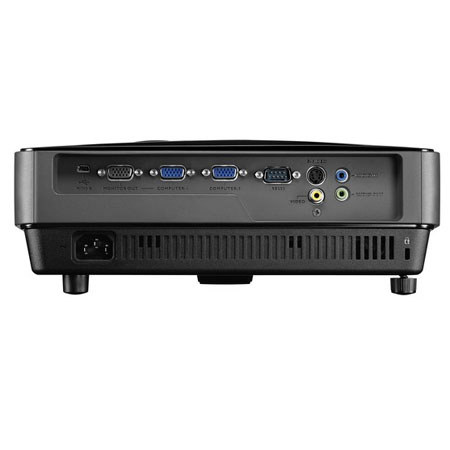

| Interface |
Computer in (D-sub 15pin) x 2(shared with Component ) Monitor out (D-sub 15pin) x 1 Composite Video in (RCA) x 1 S-Video in (Mini DIN 4pin) x 1 Audio in (Mini Jack) x 1 Audio out (Mini Jack) x 1 Speaker 2W x 1 USB (Type Mini B) x 1 (Download & Page up/down) RS232 (DB-9pin) x 1 |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| Audible Noise |
Normal Mode: 33dBA Economic Mode: 27 dBA |
| Power Supply |
AC 100 to 240 V, 50/60 Hz |
| Power Consumption |
297W, Standby<1W |
| On-Screen Display Languages |
English/ France/ Germany/ Italian/ Spanish/ Russian/ Traditional Chinese/ Simplified Chinese/ Japanese/ Korean/ Swedish/ Dutch/ Turkish/ Czech/ Portuguese/ Thai/ Polish/ Hungarian/ Croatian/ Romanian/ Norwegian/ Danish/ Bulgaria/ Finnish/ Indonesian/ Greek/ Hindi/ Arabic (28 Languages) |
| Picture Modes |
Dynamic/Presentation/sRGB/Cinema/User 1/User 2 |
| 3D Support and Compatibility |
PC: 120Hz Frame Sequential 3D for resolutions up to WXGA |
| Dimensions (W x H x D) |
11.30x3.94x9.13 inches (287x100x 232mm) |
| Weight |
5.51 lbs (2.5 kg) |
