brite-View

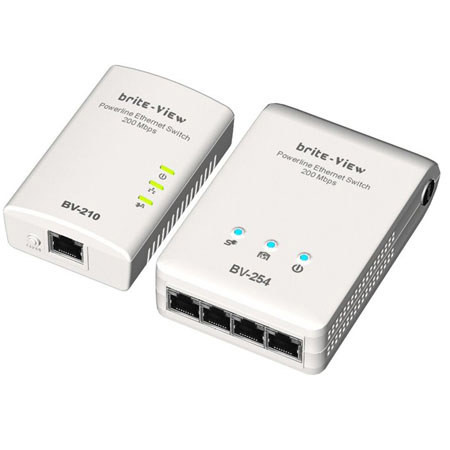

brite-View 200Mbps Mini Powerline AV Ethernet Network Adapter Kit, 1-Port Bridge & 4-Port Switch

SKU: BRBV210C MFR: BV-210C
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$79.99 $4 per week
Free Shipping
Qty:
Add to Wishlist

About this item

The Brite View 200Mbps Mini Powerline AV Ethernet Network Adapter Kit (1-Port Bridge & 4-Port Switch) includes the BV-210 1-Port Bridge and BV-254 4-Port Switch. The Powerline network behaves like a traditional LAN for computers. These Brite-View Powerline Adapters support up to 200Mbps network speed.

Powerline technology lets you use your home's electrical system to transmit data signals and uses the electrical system as a network, with each electrical outlet serving as a node. Any Ethernet-equipped device (PCs, DVR's and set-top boxes, among others) that are connected to a power line adapter can be part of the power line network.

What's Included With This Item

  • Brite View BV-210 1-Port Ethernet Bridge
  • BV-254 4-Port Ethernet Switch
  • 2 x Ethernet Cables
  • Installation Guide
  • Brite View Warranty

Key Features

  • High Speed Data Transmission: LinkE (BV-210C) gives users the ability to extend their broadband network or IP HD Audio and Video capability with throughput speeds of up to 200 Mbps PHY
  • Plug & Play for Home Network Extension: The LinkE (BV-210C) can serve as an Ethernet cable replacement or Hub replacement for setting up a small workgroup, connecting a computer to a broadband connection or extending the reach of your media streaming player such as the CinemaTube
  • Small and Thin Form Factor: The LinkE 1-Port Bridge is one of the thinnest on the market measuring only 2.36x3.7x1.12" which is smaller. The LinkE 4-Port Switch measures only 2.95x4.17x1.12" which ensures that this wall-mounted device won't hinder your home furniture placement near the wall
  • Lower Power Consumption: The LinkE consumes less than 2.0 Watts of power when in idle mode. With the advancement of AV Powerline technologies, the LinkE provides the lowest power consumption and features a standby mode
  • No Electrical Wire Limitations: The LinkE supports both single phase and cross phase. This Powerline device sends data to and from each other over the existing electrical wiring in your home and features a built in surge suppression capability

Technical Specs

Ethernet Ports BV-210 - 1 Port, BV-254 - 4 Ports
Group Button Yes
LED BV-210 - Power, Ethernet Link/ACT, PLC Link/ACTBV-254 - Power, HomePlug 1.0 Detect, PLC Link/ACT
Electric Plug Type Standard US
Power Supply 100-240 VAC 50/60Hz
Power consumption <5 Watts
BV-210 Performance PHY Rate: 200Mbps
TCP: Up to 90 Mbps
UDP: Up to 90 Mbps
BV-254 Performance PHY Rate: 200Mbps
TCP: Up to 91 Mbps
UDP: Up to 92 Mbps
Operating Temperature 32 to 104deg.F (0 to 40deg.C)
Operating Relative Humidity 10-85% Non-Condensing
Standards HomePlug AV, IEEE 802.3, IEEE 802.3u
Regulations FCC, CE
Frequency Band 2-28Mhz
Modulation Windowed OFDM with Noise Mitigation
Access Methods TDMA and Priority-based CSMA/CA Channel Access
IGMP Supports IGMP
Security Encryption 128-bit AES Link Encryption w/key management
Dimensions (WxLxH) BV-210: 3.7x2.36x1.12" / 94x60x28.5mm
BV-254: 4.17x2.95x1.12" / 106x75x28.5mm
