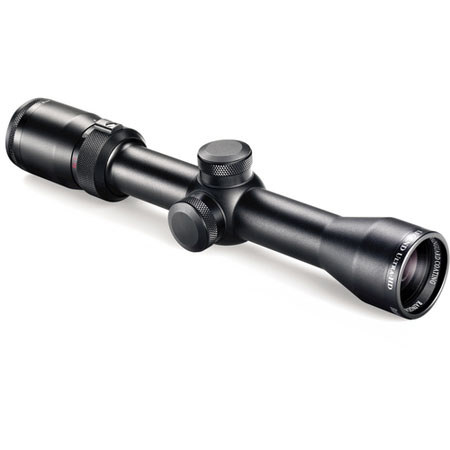

The Bushnell Legend Ultra HD 1.75-5x 32 DOA Crossbow Riflescope is a lightweight crossbow scope engineered for years of performance in the field and at the range. The wide field of view range and Bushnell's latest DOA reticle makes this riflescope well equipped to handle a variety of short and mid-range hunting and targeting applications.
This Legend Ultra HD riflescope is configured with a zoomable field of view for enhanced situational awareness, 1/4" windage and elevation adjustments for accurate targeting from one shot to the next and stacked dual-focus controls for both rapid and fine-tuning adjustments. Additionally, this versatile scope is at home on a crossbow, rifle or shotgun.
The Legend Ultra HD riflescope features a weather-sealed housing, one piece tube construction and fully multi-coated optics with a proprietary moisture repelling layer that ensures bright and clear images even in pouring rain, extreme humidity and low light conditions.
|Magnification||1.75x - 5x|
|Objective / Field of View||32mm / 49.0' (15.0m) @ 1.75x at 100 yds.(100m), 17.0' (5.2m) @ 5x at 100 yds.(100m).|
|Main (Center) Tube Diameter||25.4mm, 1"|
|Objective Tube Diameter||Not Specified by Manufacturer|
|Eyepiece Tube Diameter||Not Specified by Manufacturer|
|Lens Coatings||Fully Multi-Coated Optics|
|Reticle||DOA Crossbow Reticle|
|Reticle Image Plane (Magnifying)||Reticle in Second Focal Plane.|
|Twilight Performance||91% Light Transmission|
|Exterior Finish||Matte Black|
|Windage & Elevation Adjustments (MOA)||1/4-M.O.A., 7mm, Per Click|
|Maximum Adjustment||35" Windage & Elevation|
|Exit Pupil||18.2mm @ 1.75x, 6.4mm @ 5x|
|Eye Relief||4.5", 114.3mm|
|Parallax Correction Control||Pre Set to 75 yds.|
|Diopter Adjustment||Not Specified by Manufacturer|
|Nitrogen Filled||Yes, Dry Nitrogen Filled|
|Waterproof / Fogproof||Yes, with Turret Caps in Place|
|Mounting Length||5.1", 130mm|
|Weight||13.0 oz., 368.5g.|
|Special Features||Parallax Preset at 75 yards.|
