What is the main purpose of the 46mm Infrared Filter # 092 (89B/RG695)?

The main purpose of this filter is to filter out infrared light from entering the camera lens. This allows for more accurate color representation in photographs, especially when used with cameras that are sensitive to infrared light.

What type of photography is the 46mm Infrared Filter # 092 (89B/RG695) best suited for?

This filter is primarily designed for black and white infrared photography. However, it can also be used with color infrared film to produce images with a pure red hue.

What is the filter factor of the 46mm Infrared Filter # 092 (89B/RG695)?

The filter factor for the 46mm Infrared Filter # 092 (89B/RG695) ranges approximately between 20 and 40.

What type of cameras can the 46mm Infrared Filter # 092 (89B/RG695) be used with?

The 46mm Infrared Filter # 092 (89B/RG695) is designed to be used with cameras that are sensitive to infrared light, such as digital SLRs and mirrorless cameras.

What other filters does B+W offer for infrared photography?

In addition to the #092 filter, B+W offers the #093 and #099 filters. The #093 filter is a black infrared filter that filters out the entire visible spectrum, while the #099 filter is an orange-colored filter that blocks the blue and blue-green portion of the visible spectrum.

Randal B : I have been told that this filter will not work with dslr's, more specifically the Nikon D7000. My lenses are Nikon DX AF-S Nikkor 18-105, as well as a Nikon ED 70-300. Anyone know if this is the case?ANDREW R : Nearly all digital cameras are shipped from the factory with an infrared (IR) blocking filter installed over the sensor (digital sensors tend to be IR sensitive). These filters essentially block visible light (in certain parts of the spectrum) but allow IR. Unless your camera has been modified for IR photography, these filters will not be especially useful to you (for the most part).
Shopper : Why Did You Choose This?David P : B + W filters are superior to other filters

Reviews about this item

Review Summary

2009-08-30T21:00:00

Rated 5 out of 5

Filter on Olympus E-Volt 520

Filter does as advertised with the high quality I've come to expect from B&W Filters. Both pictures were taken with an Olympus E-520, ISO-100, F/2.8, Focal Length = 12mm. The first, the reference picture, the shutter speed was 1/250 sec. The second, the IR picture using the B&W 092 filter, the shutter speed was 3 seconds. This gives an overall filter factor of 750. Taking into account the advertised 20 to 40 filter factor for the filter this leaves the internal E-520 IR blocking filter with a factor of 25. Bottom line, IR photography is possible with a E-520 using this filter if the camera is mounted on a tripod.

JCozen

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

B + W 092 IR Filter Specifications

4 Accessories for B + W 46mm Infrared Filter # 092 (89B/RG695)

  • All Accessories (4)
  • Covers & Caps (1)
  • Bags & Cases (1)
  • Tools (1)
  • Cleaning Accessories (1)

About B + W 092 IR Filter

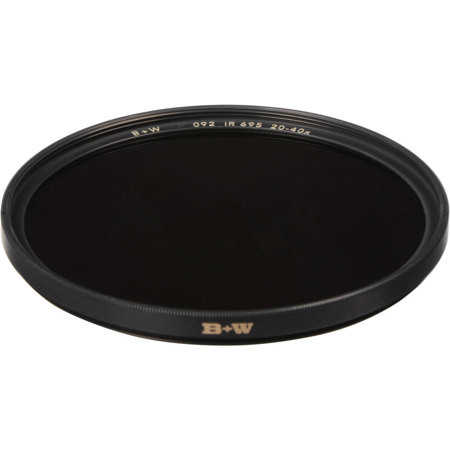

With B+W's innovative range of infrared photography filters, you can unlock new dimensions in your photographic pursuits. The 46mm Infrared Filter # 092 (89B/RG695) is a high-quality, durable filter designed specifically for black and white infrared films. This dark red filter effectively filters out light below 650 nm, enhancing the performance of your camera by making optimal use of the relatively low sensitivity of infrared films.

When used with color infrared film, this versatile filter produces images of a pure red hue, adding a unique touch to your photography. With a filter factor ranging approximately between 20 and 40, the 46mm Infrared Filter # 092 (89B/RG695) is an essential tool for photographers looking to explore the potential of infrared photography.

In addition to the #092 filter, B+W offers the #093 and #099 filters. The #093 black infrared filter filters out the entire visible spectrum and is ideal for use with black and white infrared films with a sensitivity up to 1000nm. The filter factor for this model is determined by the film sensitivity.

The #099 filter, on the other hand, is an orange-colored filter that blocks the blue and blue-green portion of the visible spectrum up to 500 nm. This filter reduces the excessive sensitivity of color infrared films in this spectral range, evenly separating colors and avoiding a blue tint. The filter factor for the #099 model depends upon the film's sensitivity.

Whether you're a professional photographer or a hobbyist, B+W's 46mm Infrared Filter # 092 (89B/RG695) offers a new avenue to enhance your photographic capabilities and creativity.

B + W 092 IR Filter Features

  • High-quality 46mm Infrared Filter # 092 (89B/RG695) designed for infrared photography
  • Dark red filter specifically crafted for black and white infrared films
  • Effectively filters out light below 650 nm for improved image quality
  • Versatile use with color infrared film to produce pure red images
  • Durable filter by reputable brand B+W, known for innovative photography filters
  • Filter factor ranging approximately between 20 and 40, enhancing camera performance

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • High-quality 46mm Infrared Filter # 092 (89B/RG695) designed for infrared photography
  • Dark red filter specifically crafted for black and white infrared films
  • Effectively filters out light below 650 nm for improved image quality
  • Versatile use with color infrared film to produce pure red images
  • Durable filter by reputable brand B+W, known for innovative photography filters
  • Filter factor ranging approximately between 20 and 40, enhancing camera performance
