Item Includes
Requires 4 AA Size Batteries Sold Separately.
|
Description

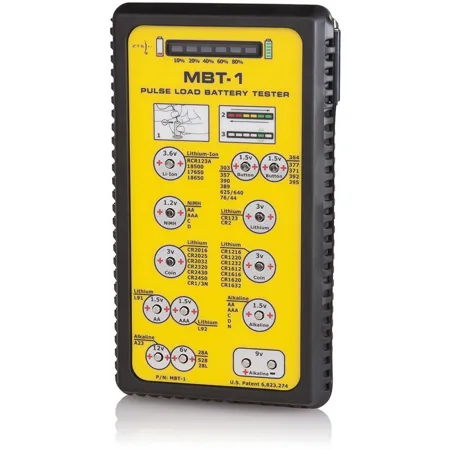

· The ZTS Multi-Battery Tester, (MBT-1) provides a comprehensive means of testing the state of charge or state of power for more than 30 battery types. This microprocessor-controlled instrument is designed for commercial or home use and tests popular primary (non-rechargeable) and rechargeable batteries using a patented, high accuracy pulse load test.

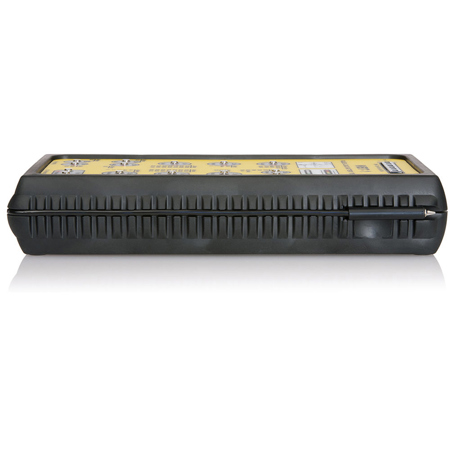

· After a fully automatic test cycle, percentage of remaining battery capacity is indicated on the LED bar display. Battery types are clearly labeled next to appropriate contacts. Negative test lead / probe conveniently stores in seam at side. It's easy to use (no switches or settings), and test results are easy to understand. Tests NiMH, Li-Ion, alkaline, lithium, coin cell, button type and more.
Testing capability:
· 3.6v Li-Ion rechargeable [RCR123A, 18500, 17650, 18650]
· 1.5v button cell [S76, A76, A625, A640]
· 1.2v NiMH/NiCd rechargeable [AA, AAA, C, D]
· 1.5v lithium [AA L91, AAA L92]
· 3v lithium coin [1616, 1620, 2016, 2025, 2320, 2032, 2430, 2450, 58L 1/3N]
· 6v '28' series [28A, S28, 28L]
· 3v photo lithium [CR123, CR2, CRV3]
· 1.5v alkaline [AA, AAA, C, D, N]
· 12v alkaline [A23]
· 9v alkaline, carbon zinc
|
Features
 |
Easy to use - no switches or settings |
|
Know how much power is left in your batteries |
|
Quickly and easily identifies weak or failing batteries |
|
Applications:
· Electronics, medical, safety, security, office, scientific, wireless devices, remotes, industrial, manufacturing, government, utilities, and more |
|
Fully automatic - high accuracy Pulse Load test:
· Battery performance is very important in today's electronic devices.
· This tester provides a fully automatic pulse load test to determine state of charge (SOC) or state of power. The pulse load test simulates real power demand and measures battery performance, not just voltage. |
|
Ideal for battery management and cell matching |
|
Made in U.S.A. Patent 6,823,274 |
Specifications
| List of Batteries Testable: |
1.2v NiMH / NiCd rechargeable [AA, AAA, C, D]
1.5v '76' series button [S76, A76, A625, A640]
3v lithium coin [CR1616, CR1620, CR2016, CR2025, CR2320, CR2032, CR2430, CR2450, 58L, 1/3N]
6v '28' series [28A, S28, 28L]
3v photo lithium [CR123, CR2, CRV3]
1.5v alkaline [AA, AAA, C, D, N]
6v photo lithium [2CR5, CR223, CR-P2]
9v alkaline & carbon zinc |
| Power (internal): | 4 AA batteries |
| Display: | 6 LEDs - colors green, yellow, red |
| Pulse Load: | magnitude varies according to battery type |
| Operation: | microprocessor-controlled test cycle |
| Test duration: | 2 seconds |
| Contact terminals: | solid brass, nickel-plated |
| Dimensions: | 7.5" x 4" x 1.25" |
| Weight: | approx. 7 oz. (200g) |
| | |
|
