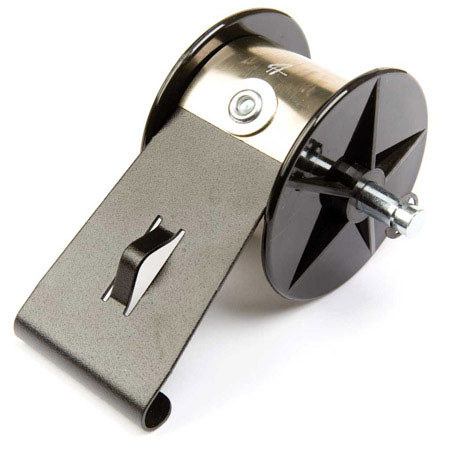

Bowens Type 4 Spring for the LiteLifts, for the Hi Glide Rail System

These springs ensure that the Litelifts hold their desired position. The springsare numbered from 1 - 4. The higher numbered springs are designed to support greater weights. The springs can be used individually or in pairs.

Springs Needed for Pantograph:
• Weight: 1.8 lb - 2.7kg
Spring(s) Needed: 1 x Type 2
• Weight: 2.7 lb - 3.6kg
Spring(s) Needed: 2 x Type 1
• Weight: 3.6 lb - 5.4kg
Spring(s) Needed: 1 x Type 1 & 1 x Type 2
• Weight: 5.4 lb - 7.3kg
Spring(s) Needed: 2 x Type 2
• Weight: 7.3 lb - 8.2kg
Spring(s) Needed: 1 x Type 3 & 1 x Type 2
• Weight: 8.2 lb - 9.0kg
Spring(s) Needed: 1 x Type 3 & 1 x Type 4
• Weight: 9.0 lb - 10.0kg
Spring(s) Needed: 2 x Type 4
• Weight: 18 lb - 20.0 kg
Spring(s) Needed: 4 x Type 4
