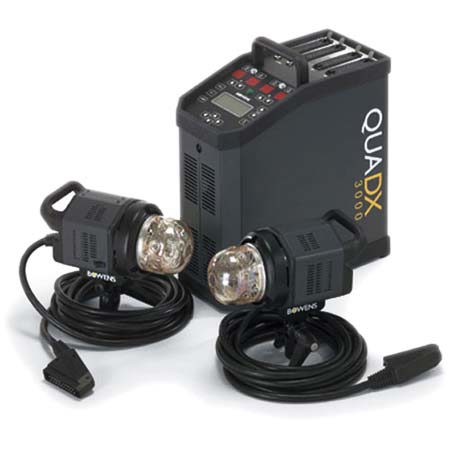

Bowens QuadX Two Flash Head Studio Set, 3000 Watt Second Total Output

SKU: BZ7700

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Bowens QuadX Two Flash Head Studio Set, 3000W Output Specifications

  • Maximum Watt/Seconds

    Power Pack and Each Flash Head: 3000

  • Recycle Time

    0.4 sec @ min power, 2 sec @ full power

  • Flash Duration

    1/7200 sec @ min power, 1/1430 sec @ full power

  • Flash Variability

    7.6 f/stops - 3000 to 31 w/s in 1/10 stop increments

  • Voltage Stabilization

    +/-0.1 f/stop

  • Distribution

    Asymmetrical; 2 channels

  • Head Outlets

    4

  • Flash Ready Indicator

    LED, Audible switchable beep

  • Operating Voltage

    110- 120 Volt

  • Sync Voltage

    6VDC

  • Built-in Slave Cell

    Optical, switchable

  • Circuit Protection

    Yes

  • Fan Cooled

    Yes

  • Auto Dump

    Yes

  • Dimensions

    Power Pack: 7 x 14.25 x 14.5" (18 x 36 x 37 cm)

  • Weight

    Power Pack: 25.5 lbs (11.6 kg)

  • Kit Weight

    ~35 lbs (16 kg)

  • Warranty

    Bowens 1 year limited warranty

8 Accessories for Bowens QuadX Two Flash Head Studio Set, 3000 Watt Second Total Output

  • All Accessories (8)
  • Collapsible Reflectors (1)
  • Umbrellas (1)
  • Reflectors (1)
  • Light Booms & Arms (1)
  • Studio/Still Life & Copy Equip (2)
  • Carts & Trolleys (1)
  • Apple Boxes (1)

About Bowens QuadX Two Flash Head Studio Set, 3000W Output

This is a Bowens Quad x Two Head Studio Kit, which is built around the Quadx 3000 Generator power pack. The pack uses capacitor switching to ensure total color consistency. The power control can be adjusted in accurate 1/3 f/stops, which makes it perfect for digital work.

The overall power of the pack can be reduced using a system of capacitor switching. By reducing the number of capacitors being used, a greater level of color consistency can be achieved. In practice this means that the Quadx 3000 can be switched from 3000 down to 250 w/s with less than 200°K shift in color temperature.

The Quadx 3000 offers two recycling speeds. Set to fast, the Quadx will keep pace with the most demanding shooters and at the slow speed, the QUAD will limit the power drain allowing it to be used in most locations.

The Bowens Quadx series of flash heads work perfectly with the Bowens Quadx flash power packs. They are fan-cooled for constant use and each features a 4 Amp fuse.

Bowens QuadX Two Flash Head Studio Set, 3000W Output Features

  • 7.6 Stop Power Range: Adjustable in 1/10 stop increments, from 3000 to 31 w/s
  • Short Flash Duration, Fast Recycle: Flash duration is 1/1430 second and recycle time is 2 seconds at full power. At 250 w/s with 2 heads connected, flash duration is 1/7100 second
  • Digital Readout: The control interface is based around an LCD information panel which can be used to show a host of information, from light output (in w/s or % of total power) to the flash duration and more
  • Audible Beep: Signifies complete recycling - it's switchable
  • Auto-Bracketing: Easy to set up with three intervals from 1-1/10 to 9-1/10-stop
  • Fan Cooled: Variable-speed cooling fans respond to internal temperature changes to ensure peak performance
  • Optional IR Remote Control System: Allows the photographer to control all functions up to 33' (10 m)
  • UV Coated: UV Coated Pyrex protective domes for the flash heads
  • Modeling Lights: Very bright 250 watt modeling light on each head

What's in the box:

  • Bowens QUAD X Two Head Studio Set
  • QUAD X Generator
  • Two QUADX 3000 W/S Flash Heads
  • Power Cord
  • Sync Cord
  • Bowens 1 Year Limited Warranty
