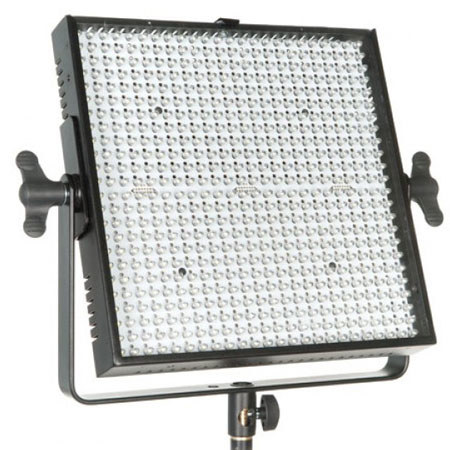

Bowens Limelite Mosaic 30x30cm Daylight LED Panel with Anton Bauer Battery Plate

Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Shipping

Add to Wishlist

Protect your investment

About this item

The Bowens Limelite Mosaic 30x30cm Daylight LED Panel provides a brilliant 4200 Lux of high quality brilliant 5600deg.K daylight - perfect for both studio and location video lighting or photography. The Mosaic features 576 ultra-bright LEDs, dimmable from 100-0%, providing an output that is around three times as bright as most competitive lights and this difference can be clearly seen in the amount of usable light projected over greater distances.

With mains power and industry standard Anton/Bauer battery operation available out of the box and an optional V-lock battery mount the Mosaic is ready to go when you are anytime, anywhere. The intuitive onboard digital control panel with its bright, clear digital display makes operating the Mosaic quick and easy. With full DMX in & out control, the Mosaic can be operated remotely just as easily.

Optional mounting kits are available to allow you to mount two or four Mosaic panels together, creating larger banks of light. Multiple Mosaics can be linked together via standard RJ45 Ethernet cables which mean that multi-panel set-ups can be easily controlled from one single Mosaic panel. LED Panels are traditionally seen as video lighting, but the Limelite Mosaic features a unique f/stop mode which converts the display to show the light output in f/stops making the versatile Mosaic just as useful for photographers.

Key Features

  • Compact, lightweight, 30x30cm daylight LED panel
  • Strong metal construction designed to withstand professional handling
  • Ultra-bright 576 LED configuration provides 4200Lux at 1m
  • Stable 5600K daylight output to +/- 200K
  • Bright LED control display provides clear indication of light output and DMX settings
  • Option to display output in numeric increments of f-stop
  • RJ45 DMX in and out on-board as standard
  • Kit includes Anton/Bauer mount battery adaptor plus multi-voltage AC mains adaptor
  • Mounts to any 5/8" support devices including stands, booms and HiGlide fittings
  • 2 and 4-panel mounting kits available for building larger banks of light

Technical Specs

Lamp 576 Power LEDs
Light Angle 40deg.
Luminous Flux 4200 Lux at 1m
Power Variation 0-100%
Power Control On-Board Digital Control Panel / DMX
Indication Digital Display
CRI >85
Power Supply 18V AC Adaptor 100-240V / 14.4V DC Battery
Operating Voltage 12-18V DC
Power Consumption 48W at 18V
Color Temperature 5600K ±300K
DMX I/O Built-in RJ45
Dimensions (WxDxH) 350x85x375mm / 13.7x3.34x14.7"
Weight 1.4kg / 3.08lbs
