Use the Cables to Go 50'/15.24m Plenum-Rated HD15 UXGA M/M Monitor/Projector Cable in any educational or commercial installation for video projectors, plasma screens, LCD or CRT monitors, or installations where the cable must perform over long distances. Cable construction consists of three 75 Ohm 28 AWG coax cables plus three 26 AWG twisted pairs and two 26 AWG conductors ensuring signal integrity in your installation.
The coax cables feature a tinned copper braid providing 93% shield. Besides the metal HD15 connector housing, the cable is shielded by a tinned copper braid providing a minimum of 85% coverage and by aluminum foil and drain wire to provide 100% coverage.
The low-smoke CMP-rated PVC outer jacket and FEP inner insulator provide the fire protection required to run these cables within walls and air plenums without the need for conduit.

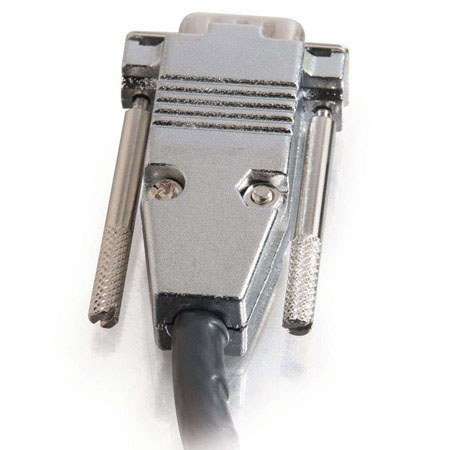

|Connector on First End||1 x 15-pin HD-15 Male VGA|
|Connector on Second End||1 x 15-pin HD-15 Male VGA|
|Cable Length||50' / 15.24 m|
|Certifications & Standards||CMP-Rated|
|Material||Polyvinyl Chloride (PVC) - Jacket|
|Weight||3.340 lbs / 1.51 kg|
