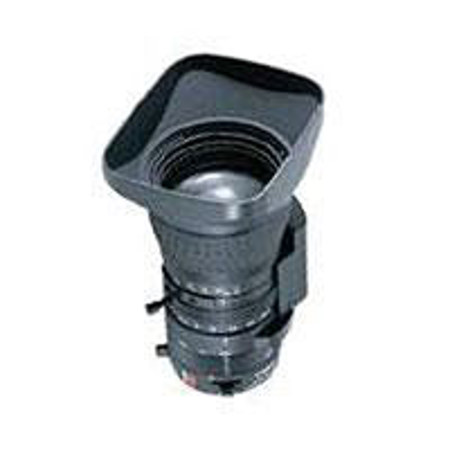

| Focal Length | f5.4 - 86.4 mm (16x) F = 39 - 624 mm (equivalent to 35mm camera) |
| Lens Configuration | 13 groups, 17 elements (no aspherical elements). |
| Coating | Multi-coating |
| Zoom ratio | 16X |
| F number | F1.6 |
| Mount | Bayonet mount with internal contacts/electronic mount. XL format system is standard 7-pin |
| External dimensions | 81 mm diameter x 158 mm (not including lens hood). Max. diameter |
| Filter Diamerter | 72mm, P0.75 (hood filter diameter: 82mm, P0.75). |
| Color | Black |
| Mount diameter | 44 mm |
| Iris | Operated with aperture ring, six blades (auto-iris capability). |
| Power Supply | Power supplied by camera, 5.1 V - 10V. |
| Focus System | TV-AF (video signal AF) compliant, a manual focus ring |
| Current consumption | 300mA or less |
| Focusing | Operated with focus ring |
| Zoom | Operated with zoom ring, power zoom capability |
| Macro mechanism | Yes. Operated with the Macro button located on the zoom ring. |
| Flangeback adjustment mechanism | Yes. Operated with the flangeback adjustment ring. |
| ND Filter Switching Mechanism | Yes. Two-step density switching type filter (built-in type). *ND densities 0.8 (light volume approx 1/6) and 1.5 (light volume approx. 1/32). |
| Focusing Range | Entire zoom range: 1 m - infinity. Wide/macro: 50 mm - infinity. |
| Weight | Approx. 920 grams (without lens hood) * Lens hood: approx. 50 grams |
| Effective image size | 4.8 x 3.6 (1/3-inch CCD image size). |
| Angle of coverage | Wide: 47° 55' x 26° 52'
Tele: 3° 11' x 2° 23' |
| Close-up field of coverage | Wide: 796 x 597 mm (diagonal 995 mm).
Tele: 52.1 x 38.9 mm (diagonal 64.9mm).
Wide/macro 71 x 53.2 mm (diagonal 88.7mm). |
| | |
