| Rec Codec 50 Mbps (CBR) 4:2:2 422P@HL |
1920 x 1080:
59.94i/29.98p/23.98p
50i/25p
True 24 (24.00)
1280 x 720:
59.94i/29.98p/23.98p
50p/25p
True 24 (24.00) |
| Rec Mode 35 Mbps (VBR) 4:2:0 MP@HL |
1920 x 1080:
59.94i/29.98p/23.98p
50i/25p
1280 x 720:
59.94i/29.98p/23.98p
50p/25p |
| Rec Mode 25 Mbps (CBR) 4:2:0 MP@H14 |
1440 x 1080: 59.94i/29.98p/23.98p
50i/25p |
| Image Sensor |
CMOS; Super 35; 26.2 x 13.8 (29.6 mm diagonal); 6.4 µm cell pitch |
| Effective Pixels |
4096 x 2160 pixels; Approx. 8.85 megapixels |
| Total Pixels |
4206 x 2340 pixels; Approx. 9.84 megapixels |
| Max. Movie Recording Time |
2GB:
50 Mbps - 5 min
35 Mbps - 5 min
25 Mbps - 10 min
4GB:
50 Mbps - 10 min
35 Mbps - 10 min
25 Mbps - 20 min
8GB:
50 Mbps - 20 min
35 Mbps - 25 min
25 Mbps - 40 min
16GB:
50 Mbps - 40 min
35 Mbps - 55 min
25 Mbps - 80 min
32GB:
50 Mbps - 80 min
35 Mbps - 110min
25 Mbps - 155 min
64GB:
50 Mbps - 160 min
35 Mbps - 225 min
25 Mbps - 310 min |
| Lens |
Compatibility with EF, EF-S and EF Cinema lens systems |
| Focusing System |
Manual |
| White Balance |
Kelvin Setting 2,000K to 15,000K in 100K increments |
| Minimum Illumination |
59.94 Hz Mode: 0.3 Lux
(f/1.2, 24 dB, 29.97p, 1/30 sec.)
50.00 Hz Mode: 0.25 Lux
(f/1.2, 24 dB, 25p, 1/25 sec.) |
| HD/SD-SDI Terminal |
Yes; (with embedded audio);
HD 8-bit 4:2:2 (YPbPr) 1920x1080: 59.94i/50i/23.98/24.00, 1280x720: 59.94p/50p/23.98/24.00
SD 8-bit 4:2:2 (YPbPr) 480: 59.94i, 576: 50i
BNC Connector, output only |
| SD-SDI |
NTSC 480i/PAL 576i: Compliant with SMTPE 259M
Embedded Audio: Compliant with SMTPE 272M
Time Code Standard: (VITC/LTC) SMTPE 12M
HD-SDI: (Compliant with SMTPE 292M)
1080i/720p: Compliant with SMTPE 292M
Embedded Audio: Compliant with SMTPE 299M
Time Code Standard: (VITC/LTC) SMTPE 12M |
| Timecode Terminals |
Yes; BNC Connector (Input and Output) |
| LCD Screen (Monitor Unit) |
Rotating 4 inch Wide Screen Color LCD Display (1,230,000 dots: 854x480) on detachable controller |
| Recording Media |
CF Card (Type 1 Only); 2 Slots (Movie Files); UDMA supported
SD Card (Still Images (JPEG), Custom Picture Data, Clip Metadata, and menu settings); SD/SDHC/SDXC Supported;
MMC Cards are not supported
Custom Picture Data and settings is not compatible with data from others Canon models |
| Audio Terminal |
2 - Balanced 3-pin XLR on Monitor Unit (Mic Level, Mic Level with phantom power and Line Level) |
| HDMI Terminal |
Yes (Type A)
HD 8-bit 4:2:2 (YPbPr) 1920x1080: 60i/59.94i/50i, 1280x720: 60p/59.94p/50p
SD 8-bit 4:2:2 (YPbPr) 480: 59.94i, 576: 50i |
| Operating Temperature Range |
-5°C to 45°C, 60% (relative humidity) |
| Dimensions (WxHxD) |
Approx. 6.3 x 7.0 x 6.7 in (160 x 179 x 171 mm) |
| Weight (not including lens) |

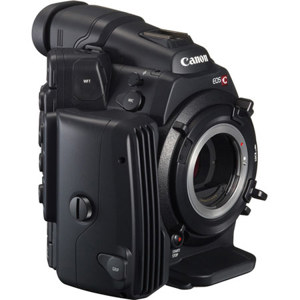

C500 Body: Approx. 4.0 lb. (1820 g) |
