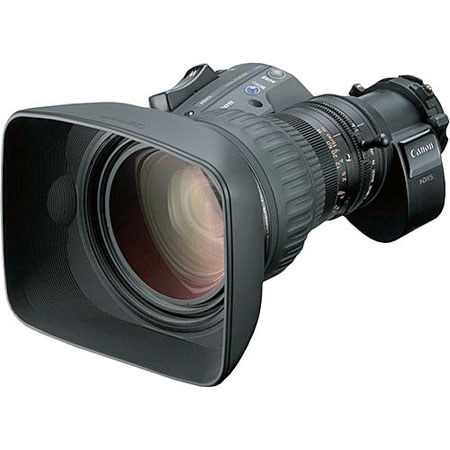

Canon HJ22ex7.6B-IASE-A eHDxs 22x 2/3" ENG Lens, 7.6-168mm Range of Focal Length, 2.0x Built-in Extender


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Canon HJ22ex7.6B-IASE-A eHDxs

The Canon e-HDxs HJ22ex7.6B-IASE-A is a 22x 2/3" telephoto lens built to offer high performance in HDTV news gathering. The lens is lightweight and can be relied upon under harsh conditions. Additionally, it's equipped with features such as internal focus and shuttle-shot programmable positioning. The focal-length range is 7.6-168mm with a minimum object distance of 2.8' (0.9 m). This lens has a 2x extender for doubling focal length.

Canon HJ22ex7.6B-IASE-A eHDxs Features

  • Sophisticated Drive System: To make the lens easier to use, Canon has developed an advanced drive boasting all the features of the previous e-HDxs system. With improved human ergonomics in mind, the lens provides the highest level of comfort and versatility
  • High Definition Ready: Many high definition cameras are hamstrung by insufficient optics. Electronic Field Production (EFP) lenses traditionally have been built to accommodate standard definition. This lens is designed specifically with high definition in mind
  • Improved Image Quality: The lens element design greatly reduces aberrations and image distortions. These advances contribute to more balanced imaging from center to edge throughout the aperture range
  • Shuttle-Shot Technology: The lens has added capability when zooming, using the shuttle-shot switch. At the touch of a button, the lens can move to a pre-programmed point, going back and forth. This can also be used creatively while providing a no hassle way of verifying focus
  • Integrated 2x Extender: For instant close-up images, the lens has a switch that inserts an element that doubles the focal length at any point in the zoom range. Instead of using the zoom function, the extender gives immediate close up images

Canon HJ22ex7.6B-IASE-A eHDxs Specifications

Horizontal View Angle
Without Extender:
64.6deg. at 7.6mm
3.3deg. at 168mm
With Extender:
35.1deg. at 15.2mm
1.6deg. at 336mm
Minimum Object Distance (M.O.D.)
2.8' (0.9 m)
Image Format
2/3" CCD, 16:9/4:3
Object Dimensions at M.O.D (Extender)
4:3 Aspect Ratio (8.8 x 6.6mm): 92.5x69.4cm at 7.6mm
4.25x3.19cm at 168mm
46.3x34.7cm at 15.26mm
2.13x1.6cm at 336mm (2.0x)
16:9 Aspect Ratio (9.6 x 5.4mm):
100.6x56.6cm at 7.6mm
4.60x2.60cm at 168mm
50.3x28.4cm at 15.2mm
2.30x1.30cm at 336mm (2.0x)
Focal Length
7.6-168mm (22x Zoom)
15.2-336mm (2x Extender)
Without Extender:
f/1.8 at 7.6-114.1mm
f/2.7 at 168mm
With Extender:
f/3.6 at 15.2-228.2mm
f/5.3 at 336mm
Dimensions (W x H x L)
6.5 x 4.4 x 8.7" (16.4 x 11.2 x 22.2cm)
Iris Type
1.89kg (4.17kg)
Focus Type
