Canare BNC to BNC SDI 25 Feet Cable
Canare

Canare BNC to BNC (SDI) Serial Digital Interface 25 Foot Cable with Canare V-4CFB

SKU: CADBCV4C25F MFR: DBB59-DBB59-25B
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$32.99
Qty:

Add to Wishlist
OverviewTech SpecsAccessories
Its never too late...Click by 8! Same day shipping.

About this item

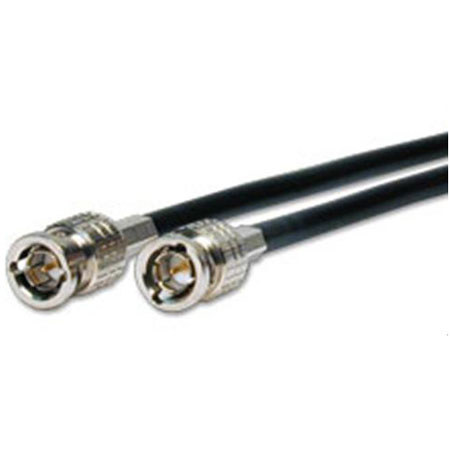

The Canare BNC to BNC SDI 25 Feet Cable is SDI cable with true 75 ohm BNCs and flexible RG59 coax. High quality and easy to work with, this cable will pass an SDI signal very clean with no interference.

Technical Specs

Cable Type RG59
Length 25' (7.62 m)
Conductors 1
Gauge 20 AWG Solid
Shielding 100% AL Foil; TAC Braid >93%
Dielectric (Insulation) Foam PE
Time Delay Skew <2.2ns per foot
Impedance 75 ohm
Capacitance 17pF/ft
Jacket PVC
Connector 1 BNC/BCP-C4F
Connector 2 BNC/BCP-C4F
Body Solid Copper Center Conductor
Interface Required BNC
UL Rated No
CL3 Rated No
RoHS Compliant Yes
