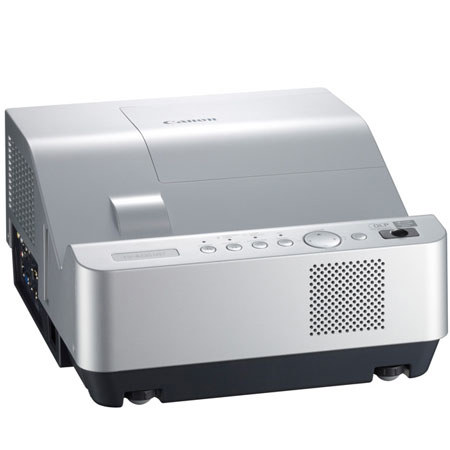

Canon LV-8235 Ultra-Short Throw Projector, 2500 Lumens, 2000:1 Contrast Ratio, WUXGA (1280x800) Resolution, DLP Technology

SKU: CALV8235 MFR: 5805B002
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Add to Wishlist

Protect your investment

About the Canon LV-8235

The Canon LV-8235 UST (ultra-short throw) projector features outstanding imaging performance, 2500 lumens and one of the shortest projection throws available on the market. The LV-8235 UST projector can project an 80-inch image from as little as 1.04 feet away, enabling users the freedom to install the device in a variety of locations, including on a desktop or the floor. Ideal for use in educational or business environments, the ultra-short throw distance enables presenters to stay out of the projection, thus preventing shadows from being cast or the light from getting into their eyes.

The built-in 10 W speaker is also the ideal volume for classrooms or boardrooms. With Auto Set and Auto PC adjustment features, setup is quick and easy. The LV-8235 UST projector features native WXGA resolution (1280 x 800 at 16:10 ratio), a standard resolution found on many widescreen laptops and a high contrast ratio of 2000:1, which combine to deliver crisp, vivid images with deep blacks. Other advanced features include 3D support (when viewed with active-shutter 3D glasses) as well as an HDMI input which allows for the projection of high quality digital images and high definition 1080p signals.

Canon LV-8235 Includes

  • "Canon LV-8235 Ultra-Short Throw Projector
  • Remote Control
  • AAA Batteries (2)
  • VGA Computer Cable
  • AC Power Cable
  • Quick Start Guide
  • CD-ROM
  • Canon 3 Year Warranty (Projector), 120 Days Warranty (Lamp) "

Canon LV-8235 Features

  • Ultrashort-Throw with Screen Size Up to 110"
  • Native WXGA Widescreen Resolution (1280 x 800)
  • High Brightness - 2500 lumens, High Contrast - 2000:1
  • Flexible Connectivity with HDMI and Network Support
  • 3D Sync Support
  • Screen Color Correction
  • Various Installation Options
  • Quiet Operation and Closed Captioning
  • Convenient, Easy to Use Features and Design
  • Durable and Easy to Maintain
  • Peace of Mind

Canon LV-8235 Specifications

Imaging Device 0.65" single-chip DLP
Aspect Ratio 16:10
Native Resolution WXGA (1280 x 800)
Brightness 2500 Lumens
Uniformity 78%
Contrast 2000:1
Keystone Vertical: ± 5 degrees (Auto / Manual)
Horizontal: No
Projection Lens f2.5, f=4.83 mm
Zoom 0.5x - 2x Digital Zoom (fixed)
Focus Manual
Screen Size 60"-110"
Throw Distance 0.75-1.49 ft (23.0-45.5 cm) 80" inch image: 1.04 ft (32.0 cm)
Throw Ratio 0.19:1
Color Adjust Yes
Image Mode Standard, Presentation, High Contrast, Cinema, user 1-4
Wall Color Correction Supports red, blue, yellow, green, blackboard green
Mounting Ceiling / Rear / Rear-Ceiling / Upwards / Downwards / Wall
Tilt Angle Adjustable front feet
Scanning frequency H:15-106 kHz, V:24-120 Hz
Speaker 10W (Mono)
Digital PC Input WSXGA+ / SXGA+ / SXGA / WXGA / XGA / SVGA / VGA
Dot Clock Less than 150 MHz
Analog Video Input NTSC / PAL / SECAM / NTSC4.43 / PAL-M / PAL-N
Component Video Input 1080i / 720p / 576p / 576i / 480p / 480i
Digital Video Input 1080p / 1080i / 720p / 576p / 576i / 480p
Input: Analog PC Input Mini D-Sub 15PIN (VGA)
Input: Digital PC Input HDMI
Input: Analog Video Input Mini D-Sub 15 PIN (Component) / Mini DIN4 (S-Video) / RCA (Composite)
Input: Digital Video Input HDMI
Input: USB No
Input: Audio Input 3.5 mm (Stereo)
Output: Analog PC Output Mini D-Sub 15PIN (VGA)
Output: Audio Output 3.5 mm (Stereo)
Output: 3D Trigger Output Mini DIN3 (3D Sync)
Control: Serial 9 PIN D-Sub (RS-232C)
Control: Network RJ-45
Remote Control: Wireless Remote Wireless Infrared
Lamp Type 275W NSH (AC)
Lamp Life (Normal/Quiet) 2000 / 3000 Hours
Lamp Power (Normal / Eco) 275W / 220W
Fan Noise (Normal/Quiet) 36dB / 28dB
Power Consumption 400W (Normal) / 320W (Eco) 10.3W (Standby-Normal) / 0.47W (Standby-Eco)
Voltage AC 100-240V, 50/60 Hz
Operating Temperature 41deg.-104deg.F (5deg.-40deg.C), 20-80% RH
Storage Temperature 14deg.-140deg.F (-10deg.-60deg.C)
Dimensions (W x D x H) 12.6 x 7.0 x 15.2" (320 x 178 x 386 mm) (with protrusions)
Weight 13.7 lbs (6.2 kg)
