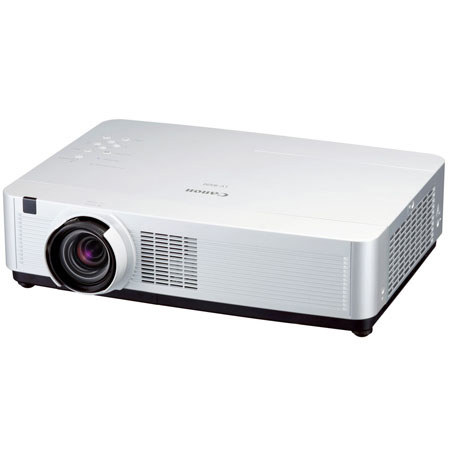

Canon LV-8320 Multimedia LCD Projector, 3000 Lumens, 1.6x Optical Zoom, WXGA (1280x800) Resolution, 2000:1 Contrast Ratio

Canon LV-8320: Picture 1 thumbnail Canon LV-8320: Picture 2 thumbnail Canon LV-8320: Picture 3 thumbnail Canon LV-8320: Picture 4 thumbnail Canon LV-8320: Picture 5 thumbnail

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 2 Year Extended Warranty + $54.95
  • New Leaf 5 Year Extended Warranty + $86.95
  • New Leaf 2 Year Drops & Spills Extra Protection + $94.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $134.95
Top Rated Gear

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Canon LV-8320

The Canon LV-8320 is an WXGA wide screen resolution (1280 x 800) LCD projector, making it easy to display today's wide format computers and laptops with incredible brightness and clarity.

Featuring network capability and an HDMI input, the LV-8320 can project high quality digital images, as well as high definition 1080p signals from satellite boxes, digital cable boxes and Blu-Ray players. In addition, the projector features a lamp lighting system that can deliver up to 5000 hours of lamp life in Quiet Mode and an air filter designed to withstand 5500 hours of use in ECO Mode.

Whether your LV-8320 is used portably or installed, you will enjoy a simpler maintenance schedule. The LV-8320 offers the flexibility needed for educators, small/startup businesses and traveling salespeople as everyone will find great value and capability in this high-performance LCD projector.

Canon LV-8320 Features

  • LCD Technology
  • Native WXGA Resolution (1280 x 800)
  • High Brightness - 3000 Lumens, High Contrast - 2000:1
  • 1.6x Optical Zoom Lens
  • Flexible Connectivity
  • Reduced and Simpler Maintenance
  • Convenient, Easy to Use Features and Design
  • Quiet Operation and Closed Captioning

Canon LV-8320 Specifications

Imaging Device
0.59" TFT Active Matrix x 3
Aspect Ratio
Native Resolution
1280 x 800 (WXGA)
3000 Lumens
Contrast Ratio
Digital Keystone (Vertical)
±30 degrees (auto function works for ±20 degrees)
Projection Lens
F1.65 - 2.33 / f=15.47 - 24.53 mm
1.6x Zoom (Manual)
Screen Size
30" - 300"
Throw Distance
2.29 - 40.67 ft. (0.7 - 12.4 m)
Image Mode
Presentation, Standard, High Contrast, Cinema, Blackboard (Green), Colorboard, User 1-4
Ceiling, Rear, Rear-Ceiling, Upwards, Downwards
Tilt Angle
Adjustable feet up to 10 deg.
Scanning Frequency
Horizontal:15 - 100 kHz, Vertical: 50 - 100 kHz
Analog PC Input
Video/S-Video Input
NTSC / PAL / SECAM / NTSC4.43 / PAL-M / PAL-N / PAL-60
Component Input
1080i / 1035i / 720p / 575p / 575i / 480p / 480i
Input D-Sub 15pin
Analog RGB / Component video input
Input RCA x1
Composite Video Input
Input Mini DIN 4pin
S-video Input
Input RJ-45
Network input x1
Input Stereo Mini Jack
Stereo audio input x2
Output D-Sub 15pin
Analog RGB output
Output Stereo Mini Jack
Stereo output x 1
Built-in Speaker
10W Mono
Control Terminal
Lamp Type
245W UHP
Lamp Life
3000 / 5000 Hours
Wireless Infrared, Front / Back
Fan Noise (Quiet/Normal)
29 / 34dB
Power Consumption
(Normal/Quiet/Stand-By) 322W / 226W / 0.5W
Power Voltage
AC100 - 240V, 50/60 Hz
Temperature Operating
41deg. to 95deg. F (5deg. to 35deg. C)
Temperature Storage
-14deg. to 140deg. F (-10deg. to 60deg. C), 5%RH; 90%RH
Dimension (W x H x D)
13.77" x 3.8" x 10.90" / 349.75 x 96.52 x 276.86 mm
7.5 lbs / 3.40 kg

Canon LV-8320 Reviews

Reviewed by 1 customers


All Around Great Projector


from Central MN  -  Tech Savvy

We use this in small groups (4-5 people) and for large group events. Great performance. Great value.
