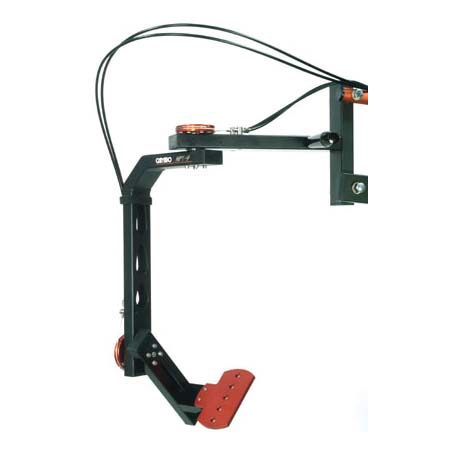

Cambo MPT-9 Large Mechanical Pan and Tilt for V-15 with Extension Boom Set

Cambo
SKU: CAM99134801 MFR: 99134801

About Cambo MPT-9

The Cambo MPT-9 for V-15 with Extension Boom Set is the control pan and tilt for the V-15 boom set with V-18 Extension. This kit allows the operator to mechanically control the camera pan and tilt while operating the boom or crane. The MPT-9 has a fluid friction system in the Head Unit, which enables you to make very smooth pan and tilt movements. The MPT Control Unit is also mountable as a separate pan and separate tilt control with two independent handles. Depending on what you are shooting the mpt-9 is controllable in more than one way. Combined Videoboom and MPT movements are possible when the control unit is mounted as a combined pan-tilt control. The free hand can control the Videoboom movement.

Cambo MPT-9 Features

  • The standard control offers one handle controlling both pan and tilt features
  • This device is mounted on a modular tube frame that allows specific setup of the V-15 boom/crane
  • The MPT-9 is a combined fluid/friction system offering smooth pan and tilt. Friction level is adjustable by user for more control in specific applications

Cambo MPT-9 Specifications

Max. Camera Load
10kg
Pan Range
340°
Tilt Range
340°
Mpt-9 Head (Packed Size) Dimension
447x130x310mm (h x w x d)
Control Unit Dimension (h x w x d)
229x131x139mm (Combined Control)
Control Frame V15 (Mounted) Dimension
116x558x305mm (h x w x d)
Mpt-9 Head Weight
2.3kg
Control Unit + Cable Set Weight
2.7kg
Control Frame V15 Weight
0.8kg
