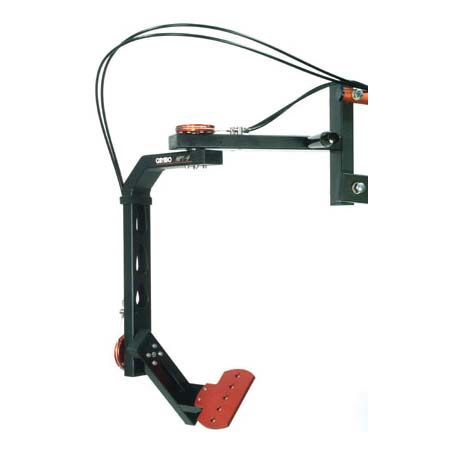

Cambo MPT-9 Large Mechanical Pan and Tilt for V-40 Boom Set with 3.2' Extension

SKU: CAM99134806 MFR: 99134806
Please Note! This Special Order Item is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 7-14 business days.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$2,064.95 $81 per week
Free Expedited Shipping
Add to Wishlist

About the Cambo MPT-9

The Cambo MPT-9 for Large V-40 Boom Set is the control pan and tilt for the Large V-40 boom set with 3.2' extension. This kit allows the operator to mechanically control the camera pan and tilt while operating the boom or crane. The MPT-9 has a fluid friction system in the Head Unit, which enables you to make very smooth pan and tilt movements. The MPT Control Unit is also mountable as a separate pan and separate tilt control with two independent handles. Depending on what you are shooting the mpt-9 is controllable in more than one way. Combined Videoboom and MPT movements are possible when the control unit is mounted as a combined pan-tilt control. The free hand can control the Videoboom movement.

Cambo MPT-9 Includes

  • Cambo MPT-9 Large Mechanical Pan and Tilt
  • Control Frame for V-40 with 3.2' Extension
  • Cable Set
  • Camera Unit
  • Control Unit

Cambo MPT-9 Features

  • The standard control offers one handle controlling both pan and tilt features
  • This device is mounted on a modular tube frame that allows specific setup of the V-15 boom/crane
  • The MPT-9 is a combined fluid/friction system offering smooth pan and tilt. Friction level is adjustable by user for more control in specific applications

Cambo MPT-9 Specifications

Max. Camera Load 10kg
Pan Range 340°
Tilt Range 340°
Mpt-9 Head (Packed Size) Dimension 447x130x310mm (h x w x d)
Control Unit Dimension (h x w x d) 229x131x139mm (Combined Control)
Control Frame V40 (Mounted) Dimension 376x558x208mm (h x w x d)
V40 Steering Bar 894mm
Mpt-9 Head Weight 2.3kg
Control Unit + Cable Set Weight 2.7kg
Control Frame V40 Weight 1.7kg
