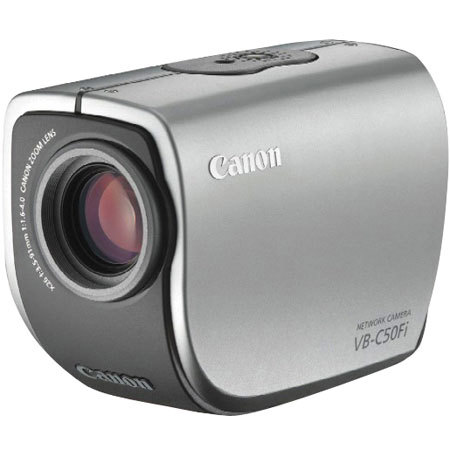

Canon VB-C50Fi Fixed Network Camera
Mfr. Part: 0220B002 SKU: CAVBC50FI
enlarge image
|
|
 |
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 5 - 7 Business days from date of order. |
|
|
Item Includes
VB-C50Fi Camera - AC Adapter - AC Cable - Software CD - User's Manual
|
Description
The VB-C50Fi Fixed Network Camera offers the key benefits of the VB-C50i NetworkCamera, but is designed as a low cost alternative for those not requiring pan and tilt control.
It allows users to remotely monitor warehouses, construction sites, parking lots, office buildings, and more - with exceptional accuracy and flexibility. The addition of a fixed camera rounds out Canon's extensive line ofNetwork Video Solutions products, offering just the right product to suit everyone's needs.
The VB-C50Fi is the fast, simple, affordable network video solution you've been looking for. With a Web server and FTP server built right in, the VB-C50Fi can transmit video images directly to your PC.
You simply connect your camera to your computer through the Web or your LAN and, in minutes, you're viewing still or full motion video. There's also the built-in network server that provides viewing for up to 50 clients simultaneously. With such performance, the VB-C50Fiis a versatile and affordable solution for your security video needs.
The VB-C50Fi works in virtually all your locations because of its impressive zoom range. The camera's 26X optical zoom lens boasts the industry's widest focal length range. Combine that with a 12X digital zoom, and you've got a camera that gives wide coverage and can also zoom in to show you important detail.
If you need a camera for an extreme, low light situation, the VB-C50Fi is for you. At a shutter speed of 1/30th second, the VB-C50Fi performs with as little as 1 Lux of illumination. And, when there's even less light or no light at all, the camera's Infrared Night Mode with built-in Infrared light feature lets you see what's going on, up to 9.8' away.
The VB-C50Fi broadcasts three different resolutions simultaneously and lets you choose the one that suits your needs. For example, if you have a slower connection or wish to view images through your video-enabled cell phone, you canselect a lower resolution image. If your network can accommodate larger file sizes, you can select higher resolution images. The range of resolutions include: 160 x 120, 320 x 240, and 640 x 480.
The VB-C50Fi is easy to install wherever you need it because it weighs in at a light 1.1 pounds and measures only 2.61"(w) x 5.28" (d) x 3.82" (h) (66.2x134.2x97.0 mm). The VB-C50Fi comes with the control capabilities you'd expect in a versatile, high performing security camera.
You can define 20 position pre-sets as part of a scheduled tour. Or, you can define 10 zoom position presets. What's more, you'll catch the most important action by setting your camera so that it is triggered when motion is detected.
The VB-C50Fi's scheduling function lets you control the operation of your camera. You can tell it when to record, or when to output signals to an externaldevice. You can schedule by week, date, time, motion-detection, and more - so you capture just what's important to you.
|
Features
 |
All-in-one Camera and Server Solution |
|
Unmatched Zoom Range Gives Unmatched Coverage |
|
Performance Under the Most Demanding Lighting Conditions |
|
Resolution Flexibility |
|
A Compact Camera That Goes Anywhere |
|
The Controls You Need |
|
You Set the Schedule |
|
Detect Your Subject Automatically |
|
Image Quality You'd Expect |
|
With the VB-C50Fi, you can enable motion detection in four areas (within the camera's field of view) and set the level of sensitivity, area ratio, and duration of detected movement in each of the four areas. |
|
Image Quality You'd Expect |
|
With the VB-C50Fi, you don't have to compromise on image quality. As with every Canon camera, you know you'll be getting the performance of Genuine Canon Optics. But, the VB-C50Fi also comes equipped with a 1/4" CCD with 340K effective pixels, giving you an extraordinary level of detail. |
|
On top of that, you get features like the backlight controls that let you adjustyour exposure. And, the Shade Correction feature which brightens shadows withoutaffecting brighter areas. The result is image quality that meets your critical security requirements. |
|
A Wide Range of Connection Options |
|
The versatility of the VB-C50Fi means that it easily hooks up with your existingnetwork video system. With the optional VB-EX50 expansion box, versatility comesin the form of connectivity possibilities. The options include: Audio Out, VideoIn/Out (BNC), External Sensor In/Out and RS-232C. |
|
The VB-C50Fi comes with additional features, including: |
|
Control of network bandwidth |
|
DHCP and DDNS |
|
Automatic image capture with 15MB of internal storage capacity for still image recording - activated by schedule, motion detectors, or contact sensors. |
|
Optional Multi Terminal VB-EX50 Module for connecting external speakers, cameras, sensors and alarms. |
Specifications
| Item Code | 0220B002 |
| Total Number of Pixels | 1/4" 680,000 Pixel CCD (340,000 Effective Pixels) |
| Minimum Illumination | 1 Lux
Motorized Infrared (IR) Cut Filter |
| Zoom | 26x Optical Zoom Lens/ 12x Digital Zoom (F 3.5mm-91mm, f/1.6-4.0) |
| Preset Position | 10 Zoom Position Presets |
| Focus | Auto/Manual |
| Video Standard | Conforms to NTSC/PAL |
| TV Lines | 460 TVL |
| Built-in IR Light | Yes, effective range approx. 9.8 feet (3m) |
| White Balance | Auto/Manual/One Touch |
| Backlight Control | 3 steps |
| Network Interface | RJ-45, Ethernet 10M /100M (auto negotiation) |
| Network Protocol | TCP/IP, HTTP, DHCP, FTP |
| Max.Capture Frame Rate | 30 fps (640x480) |
| Video Capture Sizes | 160x120, 320x240, 640x480 |
| Video Compressed Method | M-JPEG (video), JPEG (still images) |
| Recording Capacity | Approx. 15MB (JPEG) |
| Supporting Viewing S.W.Supplied Viewers | Viewer for PC and JAVA Ver. 3.6 |
| Optional Viewers | Webview Livescope MV Ver. 2.1,
Webview Livescope MV Ver. 2.1 LE (E)
Viewer for Pocket PC RV-P Ver. 1.0 (E) |
| Optional Network Video Recorder Software | VK-64 Ver. 1.1,
VK-16 Ver. 1.1 |
| Power Source | AC Power Adapter Power Consumption 25W or Less |
| Simultaneous Client Access | 50 (max) |
| IR Cut Filter On/Off | Yes |
| Multiple Connector I/F (optional) | Composite Video In/Out, (BNC) Audio Out, External Alarm Sensor Out External Sensor In (Requires Optional VB-EX50) |
| Weight | 1.05 lbs. (Approx. 480g) |
| Dimensions | WXDXH: 2.60 x 5.28 x 3.81 in
(66.2 x 134.2 x 97.0 mm)
(excluding protruding legs) |
| | |
|
|
|
|
|
|
|
|
|
|
