Canon

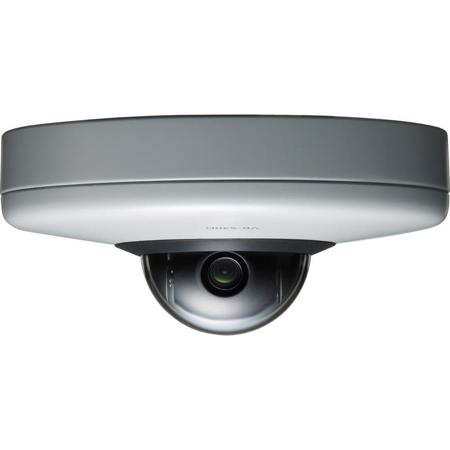

Canon VB-S30D PTZ Micro Dome Full HD PoE Network Camera, 2.1MP, 3.5x Optical/4x Digital Zoom, On-Screen Display

SKU: CAVBS30D MFR: 8818B001
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$599.00
Free Shipping
Qty:

Add to Wishlist

About the Canon VB-S30D

The Canon VB-S30D PTZ Micro Dome Full HD PoE Network Camera is very compact - only 4.72" in diameter and 2.13" thick - and very capable. Leveraging Canon's famous prowess in optical technology, the 3.5x, F1.4 Auto Focus Zoom lens has an impressive 77.7deg. angle of view. To the outstanding image quality delivered by the Aspherical lens elements and the powerful Canon DIGIC DV III image processor, the VB-S30D also adds class-leading low light performance and the DIGIC NET II Processor allows the Full HD images captured to be streamed in your choice of Full HD (1920 x 1080) up to 30fps in MJPEG, or using the low bandwidth H.264 codec.

That's just the beginning of the appeal of this brilliant camera. For financial institutions and commercial offices, the Privacy Mask feature is especially useful in providing detailed coverage without compromising door code security while the viewing range of the Wide Angle Lens helps make it a compelling choice in Casino & Gaming, Educational and Airport & Transportation applications. Users can benefit from the superb flexibility in installation which comes from the light weight and diminutive dimensions of the VB-S30D. This is a camera that can be placed in more of the places where you need it to be to help provide the coverage you require.

You will appreciate the impressive low light performance, which allows it to provide quality color video in a range from .95 lux down to .025 lux and black / white video from .05 lux to .015 lux. An impressive array of On-board Video Analytics, with set triggers including Moving, Removed and Abandoned Object Detection and Passing Detection are included to provide a wide range of options to help tailor this camera to your specific needs. With the VB-S30D you may choose preset camera positions and combine them as you wish to create a custom tour.

The VB-S30D is IEEE802.1x Client Authentication protocol compliant, giving additional network security through port based access control - vital in high security areas. Further security is provided by the support of HTTPS. ONVIF Profile S conformant as well, you will be able to integrate the VB-S30D into a network system with ease when working with compliant equipment from different manufacturers and third party recording software systems.

Class-leading compact size, light weight, Full HD video performance and outstanding analytical capabilities combine in the VB-S30D to help make it a perfect choice for a wide array of demanding surveillance situations.

Compact PTZ Camera with High Quality Full HD Video
The VB-S30D has been designed with components maximized to save space yet provide high quality video at the same time. To accomplish this, smaller circuit boards are combined with meticulous layout planning. The lens has been designed with aspherical elements and a high refractive index. This allows for a much more compact lens assembly as well as superb image capture capability, so the Full HD Video is clear and crisp. The VB-S30D is smaller and lighter than many other cameras of its type, increasing the options available when mounting in tight spaces. It is even light enough to allow installation without hardware.

Genuine Canon 77.7deg. Angle of View 3.5x Optical Zoom F1.4 Lens
Thanks to the impressive 77.5deg. viewing angle and 3.5x optical zoom, this lens delivers excellent image quality while possessing the smallest form factor in its class, all in a compact size. Frequently, challenging low-light situations are found in surveillance locations. The ability of a security camera to capture the highest quality video possible in such conditions is very important. The VB-S30D combines a high sensitivity sensor, bright lens, enhanced noise reduction and video quality optimization to deliver Full HD video with low-light performance at the top of the compact HD class in Canon testing.

ONVIF v2.2
Ease in system integration is important to ensure that users can create a network which best meets their specific requirements. The VB-S30D makes this possible with ONVIF version 2.2 protocol compatibility, including the Profile S standard which includes greater interoperability than found in previous network cameras. It is simpler to integrate the VB-S30D with other ONVIF compliant 3rd party products and it is backwards compatible with earlier versions of the ONVIF protocol.

2.1 Megapixel CMOS Sensor
The Megapixel CMOS Sensor of the VB-S30D ensures maximum image quality, a hallmark of Canon products. Its approximately 2.1 million pixels deliver incredibly sharp, high resolution video, with detail that ensures clearer, more effective video monitoring.

DIGIC DV III
The VB-S30D has at its core Canon's powerful and highly regarded DIGIC DV III Image Processor. It's known for providing superior image quality through more life-like colors, tonal accuracy and reduced noise. This comes with the additional benefit of low power consumption.

DIGIC NET II
Working in tandem with DIGIC DV III is DIGIC NET II. It is a sophisticated, efficient compression, encryption and transmission processor, which allows high quality Full HD (1920 x 1080) video at 30fps in both MJPEG and high quality, low bandwidth H.264 Codec. Users have the flexibility of multiple sizes of MJPEG streaming from which to choose and the VB-S30D will also allow 2 different sizes of H.264 which can be streamed simultaneously.

H.264 Codec
The H.264 Codec has adjustable I-frames and, by combining both high quality video and high compression rates, it gives the user the considerable benefits of low bandwidth utilization and low disk space usage with video of the quality demanded.

IEEE802.1x Client Authentication
The IEEE802.1x Client Authentication Support of the VB-S30D helps to enhance the security of the user's network with port based access control. It is possible for the camera to be installed in the most sensitive high security areas, as the Client Authentication Support ensures that only client authorized devices are connected to the network.

SSL Support
With the HTTP over SSL (HTTPS) support of the VB-S30D, both self-signed and Certificate Authority issued certificates can be recognized in order to ensure that communication between the camera and the client is secure, preserving the integrity of your data.

Auto IP Feature
The VB-S30D will assign itself a private IP address on startup. Designed for small implementations or demonstrations, this will allow for quick setup and viewing immediately on installation without the need to configure each camera's IP address individually.

On-board Video Analytics
The capability of the VB-S30D is greatly enhanced by the range of Video Analytics available to the user. They include Moving Object Detection, Removed Object Detection, Abandoned Object Detection, Sound Level Detection, Camera Tampering Detection, Passing Detection. In each of these analytics, the user can customize the behavior of the VB-S30D by precisely tuning the camera's event detection triggers. These include the detection area, sensitivity and duration. When an event occurs, advanced event notification tools can alert the selected personnel, maximizing response time. Now users will also have a Quick Setting in the Removed Object Detection analytic, which when triggered, rapidly identifies objects in the camera's field of view and places a visual 'box' around the object automatically. This can significantly reduce the time required to configure and identify the location of removed objects.

Scheduled Preset Tours
Another customization offering of the VB-S30D is the Preset Setting Tool. This allows the scheduling of start and stop times of preset tours, in which the camera moves to configured digital preset locations at the user's specifically desired time periods. Together with the available range of analytics, such tours can be a highly precise way to monitor specific areas at times of peak risk.

Digital & Viewer PTZ
With the VB-S30D's ability to allow the user to digitally pan, tilt and zoom in the incoming video stream, details in the camera's field of view can be investigated without the need to physically reposition the camera.

Scheduled Custom Video Settings
For maximum user flexibility in tailoring the settings of the video capture, the VB-S30D allows for customization of the video settings when switching from day to night mode, as well as setting a daily schedule. These settings can be pre-programmed to ensure that the image quality is optimized throughout the day for ambient light conditions.

Flexibility in Video Size Choices
Flexibility is a hallmark of the VB-S30D and that extends to choices in the size of live and recorded video streams to select those best suited to their specific requirements. The user may choose between the 16:9 sizes of Full HD and HD video sizes such as 720p as well as additional 4:3 aspect ratio video sizes.

On-screen Display
The VB-S30D supports an on-screen display which can be customized to contain time & date and also has a text field in which the camera location can be identified for easier analysis.

Built-in microSD Card Slot
Live images and H.264 video can be saved to a memory card with the VB-S30D's built-in microSD Memory Card slot. The use of microSD, microSDHC and microSDXC cards allows the user to save events which occurred during live network outages, event triggers and scheduled times, as well as events that were manually recorded, for future review and analysis.

Admin Viewer H.264 Support
The user can view high quality, low bandwidth video directly from the webpage of the VB-S30D without installing any software.

Canon VB-S30D Includes

  • Canon VB-S30D PTZ Micro Dome Full HD PoE Network Camera
  • Setup CD-ROM
  • Wire Unit
  • Screw for Wire
  • Template
  • Installation Guide
  • Canon 1 Year Limited Warranty

Canon VB-S30D Specifications

Image Sensor 1/4.85 type CMOS (primary color filter)
Number Of Effective Pixels Approx. 2.1 million pixels
Scanning Method Progressive
Lens 3.5x optical (4x digital) zoom lens with auto focus
Focal Length 2.25 (W) - 7.88mm (T)
F-Number F1.4 (W) - F2.6 (T)
Horizontal Viewing Angle 77.7deg. (W) - 20.7deg. (T)
Vertical Viewing Angle 40.4deg. (W) - 11.6deg. (T)
Day/Night Switch Auto/Manual
I/R Cut Filter Fixed
Min. Subject Illumination-Day (Color) 0.95 lux (F1.4, shutter speed 1/30 sec., smart shade control is off, 50IRE)
0.07 lux (F1.4, shutter speed 1/2 sec., smart shade control is off, 50IRE)
0.025 lux (F1.4, shutter speed 1/2 sec., smart shade control is on, 50IRE)
Min. Subject Illumination Night Monochrome: '0.5 lux (F1.4, shutter speed 1/30 sec., smart shade control is off, 50IRE)
0.04 lux (F1.4, shutter speed 1/2 sec., smart shade control is off, 50IRE)
0.015 lux (F1.4, shutter speed 1/2 sec., smart shade control is on, 50IRE)
Focus Auto/One-shot AF/Manual/Fixed at infinity
Shooting Distance 0.3m (12 in.) - infinity (W)
Shutter Speed 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 sec.
Exposure Auto/ Auto (Flickerless)/ Auto (shutter-priority AE)/ Manual (Shutter Speed, Gain)
White Balance Auto/Light Source (Daylight Fluorescent/White Fluorescent/Warm Fluorescent/Mercury Lamp/Sodium Lamp/Halogen Lamp)/ Manual (One-shot WB / R Gain/ B Gain)
Metering Mode Center-Weighted/Average/Spot
Exposure Compensation 9 levels
Smart Shade Control Auto / Manual / Disable
Auto: 3 Levels
Manual: 7 Levels
AGC Limit 5 levels
Pan Angle Range 350deg. (±175deg.)
Tilt Angle Range 90deg. (ceiling-mounted position: -90deg. - 0deg.)
Moving Speed Pan: Max. 120deg./sec., Tilt: Max. 120deg./sec.
Video Compression Method JPEG, H.264
Video Size JPEG, H.264: 1920 x 1080, 960 x 540, 480 x 270
1280 x 720, 640 x 360, 320 x 180
1280 x 960, 640 x 480, 320 x 240
Video Quality JPEG, H.264: 5 levels
Frame Rate JPEG: 0.1 - 30 fps
H.264: 1/2/3/5/6/10/15/30 fps
Maximum Frame Rate JPEG, H.264 (1920 x 1080): 30fps
I-Frame Interval 0.5/1/1.5/2/3/4/5 sec.
Simultaneous Client Access Max. 30 Clients + 1 Admin Client
- H.264: Max. 10 Clients
Camera Control Administrator, Authorized user, Guest user
Max. 50 user names and passwords registered for authorized users.
Access Control User authority (user name and password), Host Access Restrictions (IPv4, IPv6)
Encrypted Communications SSL/TLS, IPsec (Auto Key Exchange/Manual)
IEEE 802.1X EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP
IPv4 Protocol TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF
Ipv6 Protocol TCP/IP, UDP, HTTP, FTP, SMTP (Client), DHCPv6 (Client), DNS (Client), ICMPv6, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon Proprietary), ONVIF
Auto IP Yes
Audio Compression Method G.711 u-law (64 kbps)
Audio Communication Method Sound Transfer Protocol by Canon
Privacy Mask Number of registration: Max. 8 places,
Number of mask colors: 1 (select from 9 colors)
View Restriction Yes
Presets Max. 20 positions
Intelligent Function - Video Moving object detection, abandoned object detection, removed object detection, camera tampering detection and passing detection
Intelligent Function: Detection Settings Max. 15
Intelligent Function - Volume Volume Detection
Event Trigger Type External Device Input, Timer, Intelligent Function (Video), Intelligent Function (Volume)
Image Upload FTP/HTTP/SMTP (e-mail)
Temporary storage memory in camera: Max. approx. 5 MB, Frame Rate: Max. 10 fps (JPEG)
Max. 30 fps (H.264)
Event Notification HTTP/SMTP (e-mail)
On-Screen Display Yes
Day Light Saving Time Yes
Custom Settings Number of Registers: 4
Items to Register: Pan/Tilt/Zoom, Exposure, Smart Shade Control, Focus,White Balance, Image Quality Adjustment, Day/Night
Network Terminal LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex))
Audio Input Terminal F3.5mm (F0.14 in.) mini-jack connector (monaural)
Switch LINE IN/MIC IN in the setting page.
LINE IN x 1 (connect to an amplifier microphone) or
MIC IN x 1 (connect to a microphone without amplifier)
External Device I/O Terminal Input x 1, Output x 1
Memory Card MicroSD Memory Card, MicroSDHC Memory Card, MicroSDXC Memory Card Compatible.
Frame Rate: Max. 1 fps (JPEG)
Max. 30 fps (H.264)
Temperature Temperature: -10deg.C - +50deg.C (+14deg.F - +122deg.F)
Humidity Humidity: 5% - 85% (without condensation)
Poe PoE power supply via LAN connector (IEEE802.3af compliant)
Power Consumption With PoE: Max. approx. 7.8 W
Mounting Position Horizontal
Dimensions (Diam. x H) 120 x 54mm / 4.72 x 2.13"
Weight 0.59lbs / 0.26kg (Approx.)
