About Canon VB-S800D

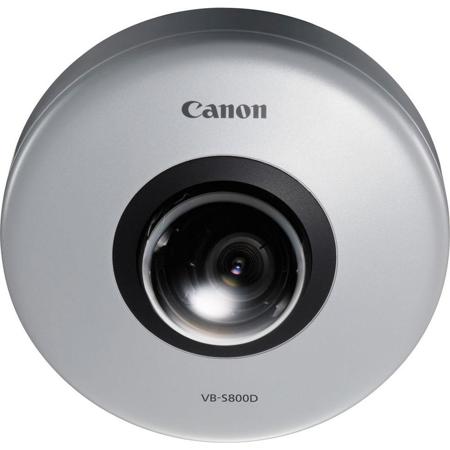

The Canon VB-S800D Micro Dome Full HD PoE Network Camera is very compact - only 4.72" in diameter and 2.13" thick - and very capable. Leveraging Canon's long-standing prowess in optical technology, the F1.6 Auto Focus lens has an outstanding 95deg. angle of view. In addition to the superb image quality delivered by the UD and Aspherical lens elements and the powerful Canon DIGIC DV III image processor, the VB-S800D adds class-leading low light performance and the DIGIC NET II Processor allows the Full HD images captured to be streamed in your choice of Full HD (1920 x 1080) up to 30fps in MJPEG, or using the low bandwidth H.264 codec.

That's just the beginning of the appeal of the VB-S800D. For financial institutions and commercial offices, the Privacy Mask feature is especially useful in providing detailed coverage without compromising door code security while the extensive viewing range of the Wide Angle Lens makes it a compelling choice in Airport & Transportation and Commercial Warehouse applications. A user can benefit from the outstanding flexibility in installation which comes from the light weight and diminutive dimensions of the VB-S800D. A special feature of this camera is the new lens design, specifically created to help minimize the negative effects of temperature changes on the lens barrel. Large changes in temperature can affect the refractive index, causing an unwanted focus shift. The new design helps mitigate these changes, allowing placement of the camera in areas which experience wide shifts in temperature.

Sure to be noticed is the outstanding low light performance, which allows it to provide quality color video in a range from .45 lux down to .01 lux and black / white video from .025 lux to .007 lux. An impressive array of On-board Video Analytics, with set triggers including Moving, Removed and Abandoned Object Detection and Passing Detection are included to provide a wide range of options to help tailor this camera to your specific needs. With the VB-S800D you may choose preset camera positions and combine them as you wish to create a custom tour.

The VB-S800D is IEEE802.1x Client Authentication protocol compliant, giving additional network security through port based access control - vital in high security areas. Further security is provided by the support of HTTPS. ONVIF Profile S conformant as well, you will be able to integrate the VB-S800D into a network system with ease when working with compliant equipment from different manufacturers and third party recording software systems.

For those installations where compact size, outstanding low light performance and a fixed dome is required, the Full HD video performance, outstanding analytical capabilities and temperature stability help make the VB-S800D a great choice in a variety of surveillance cameras.

Compact Camera with High Quality Full HD Video
The VB-S800D has been designed with components maximized to save space yet provide high quality video at the same time. To accomplish this, smaller circuit boards are combined with meticulous layout planning. The lens has been designed with UD, aspherical elements and a high refractive index. This allows for a much more compact lens assembly as well as superb image capture capability, so the Full HD Video is clear and crisp. The VB-S800D is smaller and lighter than many other cameras of its type, increasing the options available when mounting in tight spaces. It is even light enough to allow installation without hardware.

Power over Ethernet
A key component in the compact size of the VB-S800D is the sole use of Power over Ethernet as the method of power, with a maximum usage of 4.1 watts.

Genuine Canon 95deg. Angle of View Lens
Canon's world-wide fame in optical technology means that this same expertise is seen in the superb lens fitted to the VB-S800D. In addition to a wide 95deg. viewing angle, the UD, aspherical elements and high refractive index mean this lens delivers excellent image quality while at the same time possessing the smallest form factor in its class, all in a compact size. Another benefit this lens brings to the user is the mitigation of environmentally caused focus shift. Wide temperature ranges to which the camera may be exposed can result in thermal expansion of the lens barrel. This affects the lens' refractive index, causing focus shift. This problem is largely eliminated in the VB-S800D.

Class Leading Low-Light Performance
Frequently, challenging low-light situations are found in surveillance locations. The ability of a security camera to capture the highest quality video possible in such conditions is very important. The VB-S800D combines a high sensitivity sensor, bright lens, enhanced noise reduction and video quality optimization to deliver Full HD video with low-light performance at the top of the compact HD class in Canon testing.

ONVIF v2.2
The VB-S800D makes this possible with ONVIF version 2.2 protocol compatibility, including the Profile S standard which includes greater interoperability than found in previous network cameras. It is simpler to integrate the VB-S800D with other ONVIF compliant 3rd party products and it is backwards compatible with earlier versions of the ONVIF protocol.

2.1 Megapixel CMOS Sensor
The Megapixel CMOS Sensor of the VB-S800D ensures maximum image quality, a hallmark of Canon products. Its approximately 2.1 million pixels deliver incredibly sharp, high resolution video, with detail that ensures clearer, more effective video monitoring.

The VB-S800D has at its core Canon's powerful and highly regarded DIGIC DV III Image Processor. It's known for providing superior image quality through more life-like colors, tonal accuracy and reduced noise. This comes with the additional benefit of low power consumption.

Working in tandem with DIGIC DV III is DIGIC NET II. It is a sophisticated, efficient compression, encryption and transmission processor, which allows high quality Full HD (1920 x 1080) video at 30fps in both MJPEG and high quality, low bandwidth H.264 Codec. Users have the flexibility of multiple sizes of MJPEG streaming from which to choose and the VB-S800D will also allow 2 different sizes of H.264 which can be streamed simultaneously.

H.264 Codec
The H.264 Codec has adjustable I-frames and, by combining both high quality video and high compression rates, it gives the user the considerable benefits of low bandwidth utilization and low disk space usage with video of the quality demanded.

IEEE802.1x Support
The IEEE802.1x Client Authentication Support of the VB-S800D helps to enhance the security of the user's network with port based access control. It is possible for the camera to be installed in the most sensitive high security areas, as the Client Authorization Support ensures that only client authorized devices are connected to the network.

SSL Support
With the HTTP over SSL (HTTPS) support of the VB-S800D, both self-signed and Certificate Authority issued certificates can be recognized in order to ensure that communication between the camera and the client is secure, preserving the integrity of your data.

Auto IP Feature
The VB-S800D will assign itself a private IP address on startup. Designed for small implementations or demonstrations, this will allow for quick setup and viewing immediately on installation without the need to configure each camera's IP address individually.

On-board Video Analytics
The capability of the VB-S800D is greatly enhanced by the range of Video Analytics available to the user. They include Moving Object Detection, Removed Object Detection, Abandoned Object Detection, Sound Level Detection, Camera Tampering Detection, Passing Detection. In each of these analytics, the user can customize the behavior of the VB-S800D by precisely tuning the camera's event detection triggers. These include the detection area, sensitivity and duration. When an event occurs, advanced event notification tools can alert the selected personnel, maximizing response time.

Scheduled Preset Tours
Another customization offering of the VB-S800D is the Preset Setting Tool. This allows the scheduling of start and stop times of preset tours, in which the camera moves to configured digital preset locations at the user's specifically desired time periods. Together with the available range of analytics, such tours can be a highly precise way to monitor specific areas at times of peak risk.

Scheduled Custom Video Settings
For maximum user flexibility in tailoring the settings of the video capture, the VB-S800D allows for customization of the video settings when switching from day to night mode, as well as setting a daily schedule. These settings can be pre-programmed to ensure that the image quality is optimized throughout the day for ambient light conditions.

Built-in microSD Card Slot
Live images and H.264 video can be saved to a memory card with the VB-S800D's built-in microSD Memory Card slot. The use of microSD, microSDHC and microSDXC cards allows the user to save events which occurred during live network outages, event triggers and scheduled times, as well as events that were manually recorded, for future review and analysis.

Auto Smart Shade Control
The image quality of the VB-S800D is enhanced by Smart Shade Control. It brightens the underexposed areas of the image, while leaving the properly exposed areas alone. This gives the user an image which is evenly exposed. Those details which might otherwise be hidden in underexposed areas can now be easily identified, without compromising the overall image.

Canon VB-S800D Specifications

Image Sensor
1/3 type CMOS (primary color filter)
Number Of Effective Pixels
Approx. 2.1 million pixels
Fixed focal length lens (4x digital zoom)
Focal Length
2.7 mm
Horizontal Viewing Angle
Vertical Viewing Angle
Day/Night Switch
I/R Cut Filter
Min. Subject Illumination - Day (Color)
0.45 lux (F1.6, shutter speed 1/30 sec., smart shade control is off, 50IRE)
0.03 lux (F1.6, shutter speed 1/2 sec., smart shade control is off, 50IRE)
0.01 lux (F1.6, shutter speed 1/2 sec., smart shade control is on, 50IRE)
Min. Subject Illumination - Night (Mono)
0.25 lux (F1.6, shutter speed 1/30 sec., smart shade control is off, 50IRE)
0.02 lux (F1.6, shutter speed 1/2 sec., smart shade control is off, 50IRE)
0.007 lux (F1.6, shutter speed 1/2 sec., smart shade control is on, 50IRE)
Shooting Distance
0.5m (1.6') - infinity
Shutter Speed
1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000,1/2000, 1/4000, 1/8000, 1/16000 sec.
Auto / Auto (Flickerless)/Auto (Shutter-priority AE)/Manual (Shutter Speed, Gain)
White Balance
Auto/Light Source (Daylight Fluorescent/White Fluorescent/Warm
Fluorescent/Mercury Lamp/Sodium Lamp/Halogen Lamp)/ Manual
(One-shot WB / R Gain/ B Gain)
Metering Mode
Exposure Compensation
9 levels
Smart Shade Control
Auto / Manual / Disable
Auto: 3 Levels
Manual: 7 Levels
AGC Limit
5 levels
Pan Angle Range
350deg. (±175deg.)
Tilt Angle Range
90deg. (ceiling-mounted position: -90deg. - 0deg.)
Rotation Angle Range
180deg. (±90deg.)
Video Compression Method
JPEG, H.264
Video Size
JPEG, H.264: 1920 x 1080, 960 x 540, 480 x 270
1280 x 720, 640 x 360, 320 x 180
1280 x 960, 640 x 480, 320 x 240
Video Quality
JPEG, H.264: 5 levels
Frame Rate
JPEG: 0.1 - 30 fps
H.264: 1/2/3/5/6/10/15/30 fps
Maximum Frame Rate
JPEG, H.264 (1920 x 1080): 30fps
I-Frame Interval
0.5/1/1.5/2/3/4/5 sec.
Simultaneous Client Access
Max. 30 Clients + 1 Admin Client
- H.264: Max. 10 Clients
Camera Control
Administrator, Authorized user, Guest user
Max. 50 user names and passwords registered for authorized users.
Access Control
User authority (user name and password), Host Access Restrictions (IPv4, IPv6)
Encrypted Communications
SSL/TLS, IPsec (Auto Key Exchange/Manual)
IEEE 802.1X
IPv4 Protocol
TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF
IPv6 Protocol
TCP/IP, UDP, HTTP, FTP, SMTP (Client), DHCPv6 (Client), DNS (Client), ICMPv6, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon Proprietary), ONVIF
Auto IP
Audio Compression Method
G.711 u-law (64 kbps)
Audio Communication Method
Sound Transfer Protocol by Canon
Privacy Mask
Number of registration: Max. 8 places, Number of mask colors: 1 (select from 9 colors)
View Restriction
Max. 20 positions
Intelligent Function - Video
Moving object detection, abandoned object detection, removed object detection, camera tampering detection and passing detection
Intelligent Function: Detection Settings
Max. 15
Intelligent Function - Volume
Volume Detection
Event Trigger Type
External Device Input, Timer, Intelligent Function (Video), Intelligent Function (Volume)
Image Upload
FTP/HTTP/SMTP (e-mail)
Temporary storage memory in camera: Max. approx. 5 MB
Frame Rate: Max. 10 fps (JPEG)
Max. 30 fps (H.264)
Event Notification
HTTP/SMTP (e-mail)
On-Screen Display
Image Cropping Function
Digital PTZ
Cropping Sizes: 640x360, 512x288, 384x216, 256x144, 128x72
640x480, 512x384, 384x288, 256x192, 128x96
DayLight Saving time
Custom Settings
Number of Registers: 4
Items to Register: Exposure, Smart Shade Control, White Balance, ImageQuality Adjustment, Day/Night
Network Terminal
LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex))
Audio Input Terminal
F3.5mm (F0.14 in.) mini-jack connector (monaural)
Switch LINE IN/MIC IN in the setting page.
LINE IN x 1 (connect to an amplifier microphone) or
MIC IN x 1 (connect to a microphone without amplifier)
External Device I/O Terminal
Input x 1, Output x 1
Memory Card
MicroSD Memory Card, MicroSDHC Memory Card, MicroSDXC Memory
Card Compatible.
Frame Rate: Max. 1 fps (JPEG)
Max. 30 fps (H.264)
Temperature: -10deg.C - +50deg.C (+14deg.F - +122deg.F)
Humidity: 5% - 85% (without condensation)
PoE power supply via LAN connector (IEEE802.3af compliant)
Power Consumption
With PoE: Max. approx. 4.1 W
Mounting Position
Horizontal / Vertical
Dimensions (Diam. x H)
120 x 54mm / 4.72 x 2.13"
0.53lbs / 0.24kg (Approx.)
