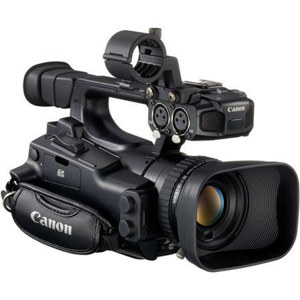

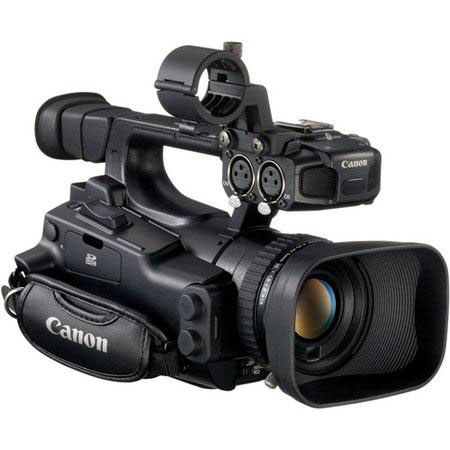

Canon XF-105 "PAL" High Definition Professional Camcorder, XF Codec, CF Card Media, 10X HD Zoomlens, 1920x1080 CMOS Sensor

SKU: CAXF105E

This item is no longer available.

Overview
Compare
Accessories
Learn
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Canon XF-105 Specifications

  • Standard Definition or High Definition

    High Definition

  • Power Supply (rated)

    7.4V DC (battery pack)

  • Video Recording system

    Compression: MPEG-2 Long GOP
    Color Space: 4:2:2 (at 50Mbps recording)
    File Format: MXF
    Recording Modes:
    50Mbps (CBR) 4:2:2, 1920x1080, (60i/30p/24p), 1280x720 (60p/30p/24p)
    35Mbps (VBR) 4:2:0, 1920x1080 (60i/30p/24p), 1280x720 (60p/30p/24p)
    25Mbps (CBR) 4:2:0, 1440x1080 (60i/30p/24p)

  • Audio Recording system

    2-Channel, PCM digital recording, 16-Bit; 48kHz

  • Image Sensor

    1/3-inch CMOS

  • Total Pixels

    Approx. 2.37 megapixels (2044 x 1160 pixels)

  • Effective Pixels

    Approx. 2.07 megapixels (1920 x 1080 pixels)

  • Maximum recording Time

    64GB Compact Flash (CF) card
    Greater capacity is possible when two cards are used.
    25Mbps: 310 minutes
    35Mbps: 225 minutes
    50Mbps: 160 minutes

  • Lens

    Canon 10x HD Zoom Lens, 4.25-42.5mm (35mm equivalent 30.4-304mm), f/1.8-2.8

  • Focusing System

    TVAF plus External Phase Difference Metering Sensor, Autofocus (Instant AF, Medium AF, Normal AF, Face AF, Face Only AF), Manual, Full Manual

  • Max Shutter Speed

    1/2000

  • Minimum Focusing Distance

    20mm (wide macro), 60cm (entire zoom range)

  • White Balance

    Auto, Manual, Custom (2000K - 15000K in 100K increments), Daylight, Tungsten

  • Frame Rate

    60i, 60p, 30p, 24p (50i and 25p optional upgrade available through Canon Factory Service Center)

  • Minimum Illumination

    Full AUTO mode: 4.5 lux (Shutter speed 1/60, Gain +24dB); Manual mode: .11 lux (shutter speed 1/4, Gain +33dB), (when 60i is selected)

  • Genlock Terminal

    BNC (input only) Same terminal as Time Code

  • HD/SD-SDI Terminal

    BNC (output only), with embedded audio and time code

  • Timecode Terminals

    BNC (input/output) Same terminal as Genlock

  • Image Stabilization

    SuperRange Optical (Lens Shift) 4 modes: Standard, Powered, Dynamic, Off

  • Filter Diameter

    58mm

  • Viewfinder

    0.24-inch color widescreen, approx. 260,000 dots, approx. 100% field of view

  • LCD Screen

    3.5-inch color widescreen LCD, approx. 920,000 dots, approx. 100% field of view

  • Microphone

    Stereo electrect condenser microphone

  • Recording Media

    CF Card: 2 Slots, Movie files only
    SD Card: Still images, Custom Picture Data, Clip Metadata, Custom Settings

  • USB Terminal

    Mini-B USB 2.0 Hi-Speed

  • Video Terminal

    Component: Output only
    Composite: A/V terminal 3.5mm mini-jack, output only

  • Audio Terminal

    XLR 3-pin jack (2), Switchable between MIC/LINE, 3.5mm stereo mini-jack

  • HDMI Terminal

    Yes (Type A)

  • AV Mini Terminal/Headphone Terminal

    3.5mm stereo mini-jack

  • Remote Control Terminal

    Yes (compatible with LANC protocol)

  • Operating Temperature range

    0deg. - 40deg. C, 32deg. - 104deg. F, 85% relative humidity

  • Dimensions

    4.8" x 5.8" x 9.8" / 121 x 148 x 250 mm

  • Weight

    2.8 lbs / 1290 g

Related Articles & Videos

6 Accessories for Canon XF-105 "PAL" High Definition Professional Camcorder, XF Codec, CF Card Media, 10X HD Zoomlens, 1920x1080 CMOS Sensor

  • All Accessories (6)
  • Batteries & Power Supply (4)
  • Filters (1)
  • Lenses (1)

About Canon XF-105

Compact in size, light weight and fully featured, the Canon XF105 Professional Camcorder can be tailored to fit a wide range of individual needs. While sharing many of the capabilities of the Canon XF305 and XF300 Professional Camcorders, including the Canon XF Codec and Compact Flash (CF) recording, the XF105 offers some exciting new features of its own.

Whether used as a companion to the XF305 or XF300 or as a standalone camcorder, the XF105 is geared for a wide range of applications where high image quality, extreme portability and efficient workflow are of the utmost importance. And with infrared recording and true stereoscopic 3-D production capabilities, the XF105 allows users to explore new creative outlets and emerging markets.

The XF105 utilizes Canon's XF Codec - a file-based MPEG-2 compression with an MXF File Wrapper that ensures the widest compatibility with existing industry infrastructure, metadata and non-linear editing (NLE) systems. The codec's 4:2:2 color sampling provides ultra-fine transitions in tone and color for maintaining the highest image quality needed for advanced post production processing.

The XF105's newly developed Genuine Canon 10x HD Video Lens along with a Canon native 1920 x 1080 CMOS Image Sensor delivers exceptional image quality. The XF105 also offers multiple recording bit rates, resolutions and variable frame rates to expand creative flexibility, allowing users to work in virtually any production environment.

Incorporating industry-standard HD-SDI output, genlock input SMPTE time code input/output terminals makes the Canon XF105 perfectly matched for live application and multi-camera shooting.

What's in the box:

  • Canon XF-105
  • PAL
  • High Definition Camcorder
  • Lens Hood
  • Battery Pack BP-925
  • Compact Power Adapter CA-930
  • DC Cable DC-930
  • Wireless Controller WL-D6000
  • Shoulder Strap SS-1200
  • Microphone Holder Unit
  • Component Cable CTC-100/S
  • Canon XF Utilities Disc
  • Adorama 90 Day Warranty Important Note: This is a PAL System and it is not compatible with USA NTSC TV standards
