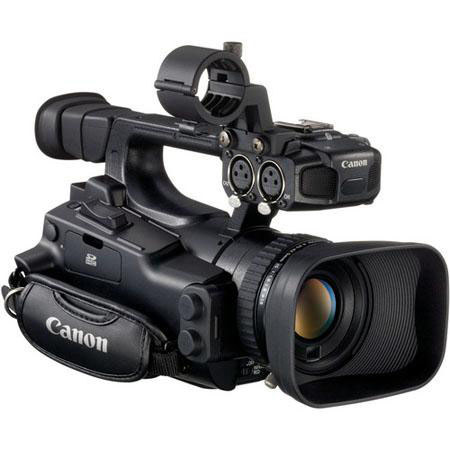

Canon XF-105 High Definition Professional Camcorder - Bundle - with Switronix XP-L90S 14.4V 6.3Ah Battery, Charger, Switronix 20" Powertap Adapter Cable, and Switronix Shoulder Support

Canon XF-105: Picture 1 thumbnail Canon XF-105: Picture 2 thumbnail Canon XF-105: Picture 3 thumbnail Canon XF-105: Picture 4 thumbnail Canon XF-105: Picture 5 thumbnail

Original Price: $3,637.21 Kit Discount: -$342.22

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $124.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $179.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $249.95
Kit Savings

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Special Offers

More Buying Options

Product Highlights

  • XF-105 Professional Camcorder
  • XP-L90S Camcorder Batterie
  • Power Tap Charger
  • XP-DV-C20 Power Cable
  • HDV PRO Camera Shoulder Support

About Canon XF-105

Save $342.22 when you buy this Canon XF-105 . This Value Bundle comes with a Canon XF-105, Switronix Power Tap Charger, Switronix HDV PRO Camera Shoulder Support and a Switronix XP-DV-C20 and Shipping is free! .

Compact in size, light weight and fully featured, the Canon XF105 Professional Camcorder can be tailored to fit a wide range of individual needs. While sharing many of the capabilities of the Canon XF305 and XF300 Professional Camcorders, including the Canon XF Codec and Compact Flash (CF) recording, the XF105 offers some exciting new features of its own.

Whether used as a companion to the XF305 or XF300 or as a standalone camcorder, the XF105 is geared for a wide range of applications where high image quality, extreme portability and efficient workflow are of the utmost importance. And with infrared recording and true stereoscopic 3-D production capabilities, the XF105 allows users to explore new creative outlets and emerging markets.

The XF105 utilizes Canon's XF Codec - a file-based MPEG-2 compression with an MXF File Wrapper that ensures the widest compatibility with existing industry infrastructure, metadata and non-linear editing (NLE) systems. The codec's 4:2:2 color sampling provides ultra-fine transitions in tone and color for maintaining the highest image quality needed for advanced post production processing.

The XF105's newly developed Genuine Canon 10x HD Video Lens along with a Canon native 1920 x 1080 CMOS Image Sensor delivers exceptional image quality. The XF105 also offers multiple recording bit rates, resolutions and variable frame rates to expand creative flexibility, allowing users to work in virtually any production environment.

Incorporating industry-standard HD-SDI output, genlock input SMPTE time code input/output terminals makes the Canon XF105 perfectly matched for live application and multi-camera shooting.

Summary of Customer Reviews

Customers most agreed on the following attributes:
Great picture quality (3)
Best Uses:
HD shooting (3)

Canon XF-105 Features

  • Adorama Camera Valuable Bundle. Kit Includes.
  • Canon XF-105 High Definition Camcorder, Lens Hood, Battery Pack BP-925, Compact Power Adapter CA-930, DC Cable DC-930, Wireless Controller WL-D6000, Shoulder Strap SS-1200, Microphone Holder Unit, Component Cable CTC-100/S, Canon XF Utilities Disc, Canon 1 Year Warranty
  • Switronix XP-L90S 90wh Lithium Ion Brick Battery, 6.3Ah. Power TAP Charger for PB70, PowerBase 70 Battery Pack
  • Switronix XP-DV-C20 20 inch DV/HDV Camcorder Cable
  • HDV PRO Camera Shoulder Support

Canon XF-105 Specifications

Standard Definition or High Definition
High Definition
Power Supply (rated)
7.4V DC (battery pack)
Video Recording system
Compression: MPEG-2 Long GOP
Color Space: 4:2:2 (at 50Mbps recording)
File Format: MXF
Recording Modes:
50Mbps (CBR) 4:2:2, 1920x1080, (60i/30p/24p), 1280x720 (60p/30p/24p)
35Mbps (VBR) 4:2:0, 1920x1080 (60i/30p/24p), 1280x720 (60p/30p/24p)
25Mbps (CBR) 4:2:0, 1440x1080 (60i/30p/24p)
Audio Recording system
2-Channel, PCM digital recording, 16-Bit; 48kHz
Image Sensor
1/3-inch CMOS
Total Pixels
Approx. 2.37 megapixels (2044 x 1160 pixels)
Effective Pixels
Approx. 2.07 megapixels (1920 x 1080 pixels)
Maximum recording Time
64GB Compact Flash (CF) card
Greater capacity is possible when two cards are used.
25Mbps: 310 minutes
35Mbps: 225 minutes
50Mbps: 160 minutes
Canon 10x HD Zoom Lens, 4.25-42.5mm (35mm equivalent 30.4-304mm), f/1.8-2.8
Focusing System
TVAF plus External Phase Difference Metering Sensor, Autofocus (Instant AF, Medium AF, Normal AF, Face AF, Face Only AF), Manual, Full Manual
Max Shutter Speed
Minimum Focusing Distance
20mm (wide macro), 60cm (entire zoom range)
White Balance
Auto, Manual, Custom (2000K - 15000K in 100K increments), Daylight, Tungsten
Frame Rate
60i, 60p, 30p, 24p (50i and 25p optional upgrade available through Canon Factory Service Center)
Minimum Illumination
Full AUTO mode: 4.5 lux (Shutter speed 1/60, Gain +24dB); Manual mode: .11 lux (shutter speed 1/4, Gain +33dB), (when 60i is selected)
Genlock Terminal
BNC (input only) Same terminal as Time Code
HD/SD-SDI Terminal
BNC (output only), with embedded audio and time code
Timecode Terminals
BNC (input/output) Same terminal as Genlock
Image Stabilization
SuperRange Optical (Lens Shift) 4 modes: Standard, Powered, Dynamic, Off
Filter Diameter
0.24-inch color widescreen, approx. 260,000 dots, approx. 100% field of view
LCD Screen
3.5-inch color widescreen LCD, approx. 920,000 dots, approx. 100% field of view
Stereo electrect condenser microphone
Recording Media
CF Card: 2 Slots, Movie files only
SD Card: Still images, Custom Picture Data, Clip Metadata, Custom Settings
USB Terminal
Mini-B USB 2.0 Hi-Speed
Video Terminal
Component: Output only
Composite: A/V terminal 3.5mm mini-jack, output only
Audio Terminal
XLR 3-pin jack (2), Switchable between MIC/LINE, 3.5mm stereo mini-jack
HDMI Terminal
Yes (Type A)
AV Mini Terminal/Headphone Terminal
3.5mm stereo mini-jack
Remote Control Terminal
Yes (compatible with LANC protocol)
Operating Temperature range
0deg. - 40deg. C, 32deg. - 104deg. F, 85% relative humidity
4.8" x 5.8" x 9.8" / 121 x 148 x 250 mm
2.8 lbs / 1290 g
Mfr #
4885B001 K

Canon XF-105 Reviews

Reviewed by 3 customers


Video Man


from Houston, TX  -  Pro Videographer

This camera does it all for the legal video specialist, it has the time stamp in seconds and so many option and adjustment for video, white balance, audio, fade to black, color bars and so on. Excellent camera for any pro video person


Great Picture Quality!


from Portsmouth, OH  -  Semi-pro Videographer

I shoot wrestling, mma, and dance. Got this camera out of the box on Thursday and had to shoot with it Saturday for an all day Dance Competition. What an improvement over my GL2s! Love the Menu and interface. Love how everything I need is built into the camera rather than hooking up multiple adapters. XLR inputs seem to work very well too. Cons: Only cons I have with the camera are -Quick pans with the camera seem a bit off. Hard to describe. -I also wish it had an internal hard drive to go along with the 2 CF Card slots. -Zoom does not go as far as teh GL2s unless there is a setting that I haven't found yet.


Love this camera


from Deltona, Fl  -  Video Enthusiast

Alright, so about a year ago I got a job as a media director at a church. This job consist of almost anything to do with digital media and then some. When I got here there were things I wanted to change because, well they were outdated. I came from our schools webcast team and have had plenty of experience with broadcasting and producing. Well I get here and the camera they have is about 15 years old and I was like ohhh this thing has to go. Well finally after about 10 months and having some extra money we got this baby. The main reason we got this camera was because it was the cheapest we could find with BNC connectors. Needless to say we have only had the camera for about 3 weeks and it is amazing. It is a lot smaller then what I thought it was going to be. But this baby has amazing image quality. I mean crystal clear and beautiful image quality. And the nice thing is that even recording at 1080 the videos files aren't that large. Soon we will be shooting a lot more videos with this, instead of using my HDSLR camera. Also it will be nice to use to go around and grab really nice footage of events that we put on year around. This lil guy is light so it won't be a pain to lug around all day for a long event. Now as for some of the settings I wish I had just a little bit more control over things like gain and shutter speed. You can store 3 presets for for each of these options along with the automatic setting. But this isn't something to complain about too much as you can always go into the menu and quickly change it as need be. I can't wait to really but this camera to the test and shoot some awesome promo material with it.
