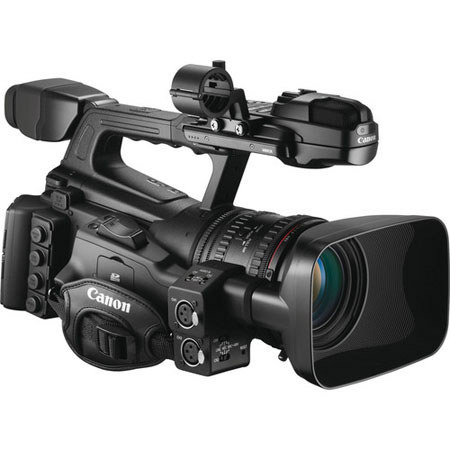

Canon XF-305 HD Pro Camcorder Deluxe Kit
Canon

Canon XF-305 High Definition Pro Camcorder, with - Deluxe - Bundle

SKU: CAXF305KB MFR: 4454B001 B
What's Included
What's Included With This Item:
  • Canon XF-305 High Definition Pro Camcorder
  • XF305 Body
  • Lens Hood
  • Eyecup
  • Battery Pack BP-955
  • Compact Power Adapter CA-930
  • DC Cable DC-930
  • Wireless Controller WL-D6000
  • Shoulder Strap SS-1200
  • Component Cable DTC-1500
  • Canon XF Utilities Disc
  • Canon 1 Year Parts and Labor Limited Warranty br> Switronix HDV PRO/V Camera Shoulder Support
  • XP-L90S 90wh Li-Ion Battery
  • Power Tap Charger & XP-DV-C20 Canon Adapter
  • TL-50 30w Dimmerable DC ED Light
  • Bescor Shoe Adaptor
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

$7,922.75 Regular Price
- $23.73Adorama Kit Discount

Our Price

$7,899.02
Free shipping
Qty:

Add to Wishlist

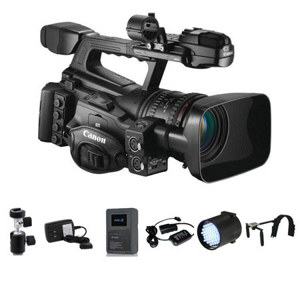

This Kit Includes:

Canon XF305 HD Pro Camcorder
Canon XF305 HD Pro Camcorder
SKU: CAXF305 MFR: 4454B001
Switronix HDV PRO/V Camera Shoulder Support
Switronix HDV PRO/V Camera Shoulder Support
SKU: SXHDVPROV MFR: HDV-PRO/V
Switronix XP-L90S 90wh Lithium Ion Brick Battery, 6.3Ah
Switronix XP-L90S 90wh Lithium Ion Brick Battery, 6.3Ah
SKU: SXXPL90S MFR: XP-L90S
Switronix Power Tap Charger for PowerBase 70 Battery
Switronix Power Tap Charger for PowerBase 70 Battery
SKU: S7PB70C MFR: PB70C
Switronix TL-50 50w DC Powered LED Light Fixture 5600k
Switronix TL-50 50w DC Powered LED Light Fixture 5600k
SKU: SXTL50 MFR: TL50
Bescor SA-1 Swivel Shoe Mount Adaptor with Sony AIS
Bescor SA-1 Swivel Shoe Mount Adaptor with Sony AIS
SKU: BOSA1 MFR: SA1
Switronix XP-DV-C20 20 inch DV/HDV Camcorder Cable
Switronix XP-DV-C20 20 inch DV/HDV Camcorder Cable
SKU: SXXPDVC20 MFR: XP-DV-C20
OverviewFeaturesTech SpecsAccessories

Canon XF-305 Includes

  • Canon XF-305 High Definition Pro Camcorder
  • XF305 Body
  • Lens Hood
  • Eyecup
  • Battery Pack BP-955
  • Compact Power Adapter CA-930
  • DC Cable DC-930
  • Wireless Controller WL-D6000
  • Shoulder Strap SS-1200
  • Component Cable DTC-1500
  • Canon XF Utilities Disc
  • Canon 1 Year Parts and Labor Limited Warranty br> Switronix HDV PRO/V Camera Shoulder Support
  • XP-L90S 90wh Li-Ion Battery
  • Power Tap Charger & XP-DV-C20 Canon Adapter
  • TL-50 30w Dimmerable DC ED Light
  • Bescor Shoe Adaptor

Canon XF-305 Features

  • MPEG-2 4:2:2 50Mbps Codec (Canon XF Codec)
  • Record to easily accessible and affordable Compact Flash Cards
  • Genuine Canon 18x HD L-Series Lens
  • Three Canon Native 1920 x 1080 CMOS Image Sensors
  • Industry Standard HD-SDI Output, Genlock & SMPTE Time Code and Other Terminals
  • Multiple Recording Bit Rates, Resolutions and Variable Frame Rates
  • Canon DIGIC DV III Image Processor
  • Brilliant Ergonomics
  • Large, 4.0-inch, 1.23-megapixel LCD Monitor and High Resolution, 1.55-megapixel EVF
  • Exceptional Customization
  • Workflow
  • Audio System
  • Waveform Monitor and Vectorscope
  • Intelligent Battery System
  • Photo Capture
  • Color Bars with Reference Tone
  • Support for 9 languages

Canon XF-305 Specifications

Standard Definition or High Definition High Definition
Video Recording system Compression: MPEG-2 Long GOP
Color Space: 4:2:2 (at 50Mbps recording)
File Format: MXF
Recording Modes: 50Mbps (CBR) 4:2:2, 1920x1080, (60i/30p/24p), 1280x720 (60p/30p/24p);
35Mbps (VBR) 4:2:0, 1920x1080 (60i/30p/24p), 1280x720 (60p/30p/24p);
25Mbps (CBR) 4:2:0, 1440x1080 (60i/30p/24p)
Audio Recording system 2-Channel, PCM digital recording, 16-Bit; 48kHz
Image Sensor (3) 1/3-inch CMOS
Total Pixels Approx. 2.37 megapixels (2044 x 1160 pixels) each x 3
Effective Pixels Approx. 2.07 megapixels (1920 x 1080 pixels)
Maximum recording time 64GB Compact Flash (CF) card - Type 1
Greater capacity is possible when two cards are used. UDMA supported.
25Mbps: 310 minutes
35Mbps: 225 minutes
50Mbps: 160 minutes
Lens Canon 18x HD L Series Zoom, 4.1-73.8mm (35mm equivalent 29.3 - 527.4mm), f/1.6-2.8
Focusing System TVAF plus External Phase Difference Metering Sensor, Autofocus (Instant AF, Normal AF, Face AF), Manual, Full Manual
Max Shutter Speed 1/2000
Minimum Focusing Distance 20mm (wide macro), 1m (entire zoom range)
White Balance Auto, Manual, Custom (2000K - 15000K in 100K increments), Daylight, Tungsten
Frame Rate 60i, 60p, 30p, 24p (50i, 50p and 25p optional upgrade available through Canon Factory Service Center)
Minimum Illumination Full AUTO mode: 4.5 lux (Shutter speed 1/60, Gain +21dB); Manual mode: 08 lux (Shutter speed 1/4, Gain +33dB), (when 60i is selected)
Genlock Terminal BNC (input only)
HD/SD-SDI Terminal BNC (output only), with embedded audio
Timecode Terminals BNC (input/output)
Image Stabilization SuperRange Optical (Lens Shift) Modes: Standard, Powered, Dynamic, Off
Filter Diameter 82mm
Viewfinder 0.52-inch color widescreen, approx. 1,555,000 dots, approx. 100% field of view
LCD Screen 4.0-inch color widescreen LCD, approx. 1,230,000 dots, approx. 100% field of view
Microphone Stereo electrect condenser microphone
Recording Media CF Card : 2 Slots, Movie files only, Type 1 only, UDMA supported
SD Card: Still images, Custom Picture Data, Clip Metadata, Custom Settings
USB Terminal Mini-B USB 2.0 Hi-Speed
Video Terminal Component: Output only
Composite: A/V terminal 3.5mm mini-jack, output only, BNC terminal, output only, signals can be output simultaneously through A/V terminal and BNC terminal
Audio Terminal XLR 3-pin jack (2), Switchable between MIC/LINE
HDMI Terminal Yes (Type A)
AV Mini Terminal/Headphone Terminal 3.5mm stereo mini-jack
Remote Control Terminal Yes (compatible with LANC protocol)
Operating Temperature range 0 - 40° C, 32 - 104° F , 85% relative humidity
Power Supply (rated) 7.4V DC (battery pack)
Dimensions Approx. 6.0 x 9.3 x 15.0 in. (153 x 236 x 382mm) (not including lens hood, eyecup, grip belt)
Weight(not including lens hood & eyecup) 5.9 lbs (2,670 g) (includes grip belt)
Weight (fully loaded) 6.6 lbs (2,980 g) (includes grip belt, lens hood, BP-955, CF Card (x1) and SD card/not including eyecup)
