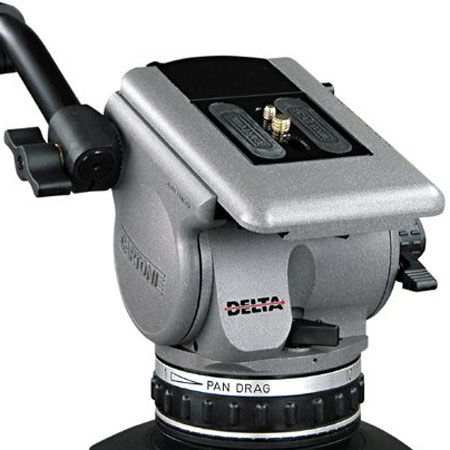

Cartoni D600 Delta 100mm Ball Base Fluid Head with Telescopic Pan Bar, Maximum Load Capacity 48 lb.
What's Included With This Item:
- Cartoni 1x Telescopic Pan Bar (#D515)
- Camera Mounting Plate (#B511)
- Tie Down Cup (#D514)
- Cartoni Warranty
The Cartoni D600 Delta 100mm Ball Base Fluid Head is ideal for supporting ENG dockable camcorders or EFP cameras equipped with long focal lenses and top mounted viewfinders, the Delta is manufactured with an extensive use of ultra-light magnesium alloy. The fully variable counterbalance system is designed to accommodate offset payloads of 22 Kg (48 lbs) ensuring excellent performances at any tilt angle.
The Delta features a continuously adjustable fluid damping mechanism providing extremely smooth and precise camera movements. Standard performances of +70, -60 degrees, with the European style quick attachment camera plate, can be increased to +/- 90 ° with the optional sliding base plate. Powered by a 9V battery, two digital displays indicate the counterbalance and tilt drag values, while an illuminated spirit level allows easy set-up even in low light conditions.
|Load Capacity||48 lbs|
|Diameter/Thread||100mm 4" Half Ball|
|Counter Balance System||Single Spring Module|
|Counter Balance Range||18 to 38 lb, Infinitely Adjustable|
|Center of Gravity||4"|
|Quick Release/Wedge Plate||Yes (Cat #B511)|
|Balance Plate||60mm Sliding Plate, 2x 3/8" Screws|
|Tilt Drag||Infinitely Adjustable with 10 Settings|
|Tilt Range||±90° with sliding base plate
+70/-60 with quick attachment plate
|Pan Range||360°, Infinitely Adjustable with 10 Settings|
|Leveling Bubble/Illuminated||Yes, Illuminated|
|Temperature Range||-40°/+60°C (-40°/+158°F)|
