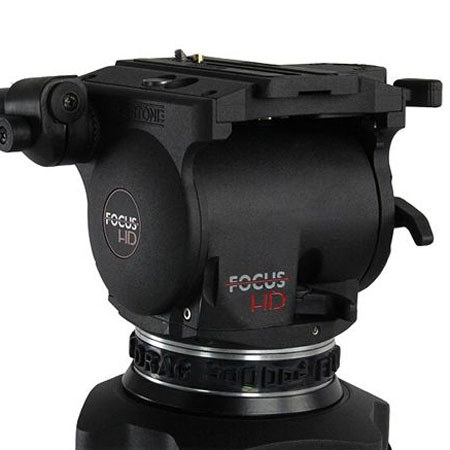

The Cartoni Focus HD head is the ideal support for the latest DV cameras weighing from 0 to 10 Kg (0 to 22 lbs). Extremely compact and lightweight, the innovative Focus features a continuously variable fluid damping system on both pan and tilt movements and a unprecedented patented variable counterbalance which brings its range of use to cover all existing Eng and DV cameras.
The Focus head comes equipped with a quick release sliding camera plate, illuminated spirit level and orientable pan bar. Its tilting angle is +/- 90° with perfect response throughout the entire tilt range. It interfaces with all 100mm bowl base tripods and supports. The extreme ruggedness and versatility together with an outstanding quality/price ratio make the Focus the best possible support for News operators and DV videographers.
|Tilt range||+/- 90°|
|Temp. range||-40°/+60°C (-40°/+158°F)|
|Bowl diameter||100 mm|
|Payload capacity||0-12 Kg (0-26 lbs)|
|Weight||2 Kg (4.4 lbs)|
