Cartoni K479 C40 S Fluid Head with Quick Release & Flat Base - Supports 110 lbs

Cartoni

List Price: $8,395.00

Free Shipping

See all shipping options

Drop Ship - This item is typically shipped to you directly from Manufacturer within 2-5 Days. Delivery is subject to availability. learn more

Our Price

$7,555.50
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Cartoni K479

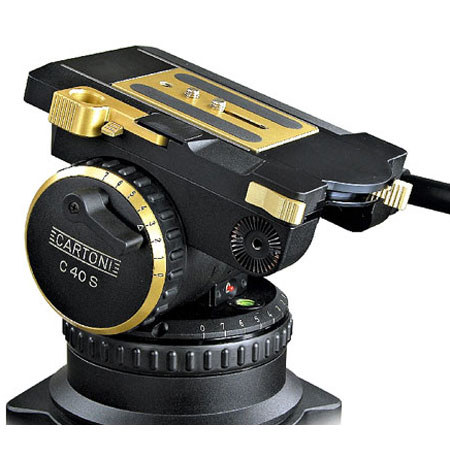

The Cartoni K479 C40 S Fluid Head is a heavy-duty fluid action head specifically designed to support studio configurations or 35mm film cameras. The counterbalance system activated by an 8-position easy-grip selector, combined with a 150mm sliding base plate, allows the cameraperson to fine tune an extremely wide range of cameras weighing from 22 lbs to 100 lbs throughout a tilt range of -/+ 65 degrees.

Features a patented fluid drag control system for both pan and tilt functions allowing the damping levels to range from "0" for freewheeling to "7" for maximum drag. Also equipped with a built-in illuminated spirit level, two telescopic handles and a standard flat Mitchell base, while options include a 150mm-ball base and a eyepiece extension holder.

Cartoni K479 Features

  • Counterbalance System with 7 Settings plus 0 : The C40S Dutch features an 8-position easy grip selector with a sliding balance plate, allowing the cameraperson to fine tune an extremely wide range of cameras weighing up to 100 lbs throughout a tilt range
  • Pan and Tilt Control : Features 3-fluid damping modules, which assure outstanding, drag levels and extraordinary smoothness in both pan and tilt functions. Pan and tilt movements can be dampened with 7 precisely repeatable steps of drag.
  • 150mm sliding balance plate allows tilt angle to be increased up to +/-65 degrees
  • Built-in illuminated spirit level allows easy set-up even in low light conditions
  • Maximum load capacity of: 110 lb

Cartoni K479 Specifications

Load Capacity
110.0 lbs
Diameter/Thread
Flatbase
Counter Balance System
Single Spring Module
Counter Balance Range
15 to 100 lb, 7 Settings + 0
Center of Gravity
4"
Quick Release/Wedge Plate
Yes
Balance Plate
150mm Sliding Plate, 2x 3/8" Screws
Tilt Drag
7 Settings
Tilt Range
-65/+65°
Tilt Lock
Yes
Pan Drag
7 Settings
Pan Range
360°
Pan Lock
Yes
Leveling Bubble/Illuminated
Yes, Illuminated
Temperature Range
-22° to +158°F (-30° to +70°C)
Weight
23.5 lbs
Warranty
Cartoni warranty
