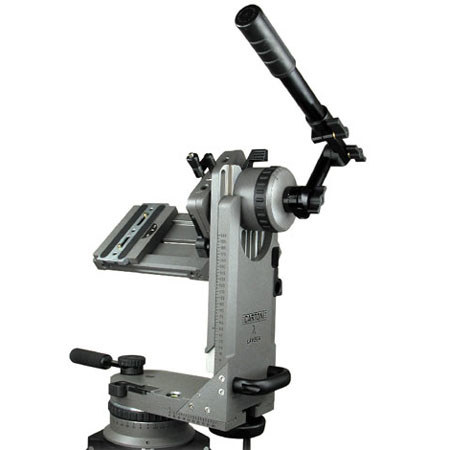

Cartoni L100 Lambda Nodal Swing Head, Supports 88 lbs

Cartoni
SKU: CCL100 MFR: L100
Cartoni L100: Picture 1 thumbnail Cartoni L100: Picture 2 thumbnail

List Price: $16,995.00

Free Shipping

See all shipping options

Drop Ship - This item is typically shipped to you directly from Manufacturer within 2-5 Days. Delivery is subject to availability. learn more

Our Price

$15,295.50
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Cartoni L100

The Cartoni L100 Lambda Nodal Swing Head is ideally suited for 35MM film cameras fully equipped with long lenses, mattebox and extra large film magazines. Providing a high level of operational flexibility, this Fluid Head can be easily fitted to a wide range of supports including tripods, dollies, cranes and camera cars.

The mounting can be inverted in under-slung position for low line positioning and allow the camera to be moved all the way to the ground and provide for accurate images which normally cannot be obtained with other traditional supports. The balance system is designed so that the camera may swing on its center of gravity and rotate 360° on its vertical axis. No springs or similar counter reaction elements are required to set the head in a fixed tilt position and fluid pan and tilt movements have the same identical feel. The lens focal distance can be kept constant by presetting the fore and aft horizontal sliding plate.

The Lambda employs the patented Cartoni fluid drag control system on both pan and tilt modes. In order to obtain the 3rd Axis rotation, the Lambda features the 3rd Axis accessory comprising an additional fluid drag system with 7 steps + "0". A variety of accessories as the orientable extendable pan bar, the round steering wheel, the short pan handle, the 150mm bowl base, the counterweights and rods for nodal setting complete the equipment.

Cartoni L100 Features

  • The mounting can be inverted for low line lens positioning allowing the camera to be moved all the way to the ground and provide for accurate images which normally cannot be obtained with other traditional fluid heads.
  • With the Lambda, there is no need to change or disassemble a variety of additional platforms or risers to suit the optical center of the camera
  • The balance system is designed so that camera swings on its own center of gravity and rotates 360° on its vertical axis.
  • No springs or similar counter reaction elements are required to set the head in a fixed tilt position allowing both pan and tilt movements to have identical feel. The lens focal distance can be kept constant by choosing the suitable camera position with its relevant sliding plate.
  • The Lambda employs the patented fluid drag control system on both pan and tilt modes allowing the damping levels to range from "0" for freewheeling to "7" for maximum drag.

Cartoni L100 Specifications

Payload capacity
40 kg (88 lbs)
Pan range
360°
Tilt range
360°
3rd Axis range
360°
Fluid drag
7 + 7
Bowl diameter
Flat Mitchell/150mm
Temp range
-40°/+60°C (-40°/+158°F)
3rd Axis weight
15.5 kg (35 lbs)
Weight
21 kg (46 lbs)
Warranty
Cartoni warranty
Mfr #
L100
SKU
CCL100
