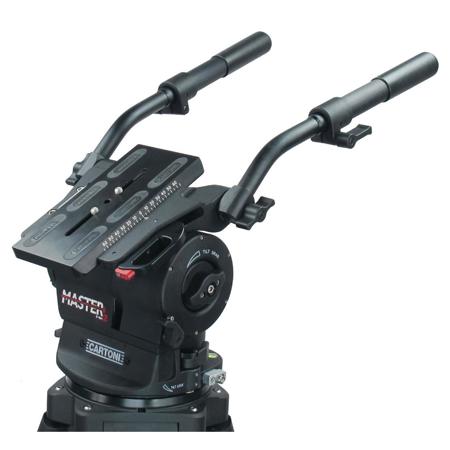

About the Cartoni M530

Designed to support cameras weighing from 10 Kg (22 lbs) to 30 Kg (66 lbs) the Cartoni Master combines a wide range of counterbalance capabilities with an outstanding fluid damping system. The frictionless variable fluid modules perform a wide variety of fluid drag allowing smooth and precise movements in any shooting situation.

The new patented counterbalance system supports a wide range of payloads at any angle throughout the +/- 90° tilt angle. All operating knobs and levers are conveniently located and easy to reach with a special care for ergonomics. The head comes equipped with two telescopic pan bars, illuminated spirit level and digital readouts for drag and counterbalance settings.

Cartoni M530 Includes

  • Cartoni One (1) Wedge Plate
  • Two (2) Telescopic Pan Arms
  • Cartoni Warranty

Cartoni M530 Features

  • Digital readouts for drag and counterbalance settings
  • All operating knobs and levers are conveniently located and easy to reach with a special care for ergonomics
  • Continuously variable counterbalance and drag systems for perfectly smooth moves and effortless tilt control

Cartoni M530 Specifications

Payload capacity 30 kg (66 lbs)
Pan range 360°
Tilt range +/- 90°
Counterbalance Continuous
Fluid drag Continuous
Bowl Diameter Flat Mitchell/150mm
Temp range -40°/+60°C (-40°/+158°F)
Quick Release/Wedge Plate Yes
Balance Plate Yes
Tilt Lock Disc brake
Pan Drag Stepless True Fluid Drag
Pan Lock Disc brake
Leveling Bubble/Illuminated Yes / Yes
Weight 9 kg (19 lbs)
Warranty Cartoni warranty
