Cartoni P7MA1 P70 Pneumatic Pedestal System with Master Fluid Head & 2 Pan Bars

Cartoni
SKU: CCP7MA1 MFR: P7MA1
Cartoni P7MA1: Picture 1 thumbnail Cartoni P7MA1: Picture 2 thumbnail Cartoni P7MA1: Picture 3 thumbnail Cartoni P7MA1: Picture 4 thumbnail Cartoni P7MA1: Picture 5 thumbnail

Regular Price: $18,967.50 Instant Rebate: -$950.00

Free Shipping

See all shipping options

Drop Ship - This item is typically shipped to you directly from Manufacturer within 2-5 Days. Delivery is subject to availability. learn more

Special

Final Price

$18,017.50
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Cartoni P7MA1

Get this Cartoni P7MA1 ,normally $18967.50, on sale at $18017.50 for a total savings of $950.00 and Shipping is free!.

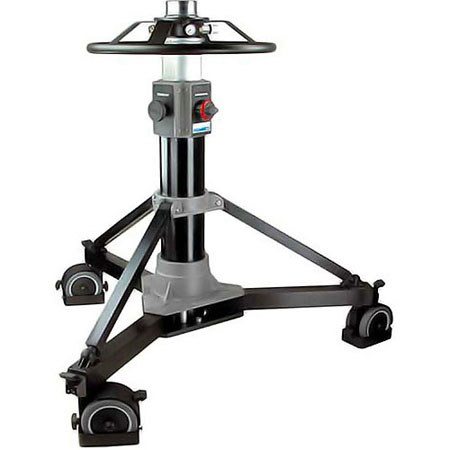

The Cartoni P7MA1 Pedestal System is a lightweight, yet paradoxically thoroughly robust, pedestal for handling payloads up to 150 lbs (68.0 kg) in outside broadcast settings. The one-shot pneumatic column may be pressurized using bottled gas, a compressor, or manually with no danger of over-inflation, thanks to a built-in safety valve.

The dolly is foldable for easy transport and comes equipped with 4.5" (125mm) twin wheels which may be replaced with optional 7.8" (200mm) pneumatic wheels. Designed to support cameras weighing from 10 kg (22 lbs) to 30 kg (66 lbs) the CARTONI MASTER combines a wide range of counterbalance capabilities with an outstanding fluid damping system.

Cartoni P7MA1 Features

  • P-70 Pedestal: Payload capacity of 150.0 lbs (68.0 kg) with pneumatic positioning
  • 17.7" (45.0 cm) Steering wheel
  • Column equipped with safety valve to prevent over-inflation
  • Folds down easily and compactly without tools, for convenient transport
  • On-shot stroke capability of 19.7" (50.0 cm)
  • 125 mm twin wheels with fast-action brakes and cable guards

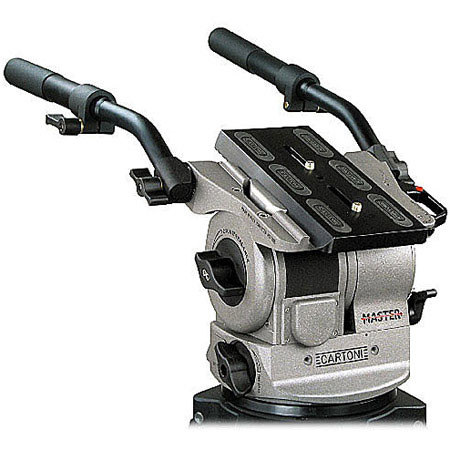

  • Master Fluid Head: The patented counterbalance system supports a wide range of payloads at any angle throughout the +/- 90° tilt angle. All operating knobs and levers are conveniently located and easy to reach with special care for ergonomics

Cartoni P7MA1 Specifications

Load Capacity
66 lbs (30 kg)
Trim Weights
No
Bowl Diameter/Thread
100 mm
Steering Ring Diameter
17.7" (45.0 cm)
Post Stages
1
Post On-Shot Stroke
19.7" (50.0 cm)
Dolly Doorway Tracking Width
39.4" (100.0 cm)
Dolly Wheel Diameter
4.5" (12.5 cm)
Minimum Height
30" (75 cm)
Maximum Height
55.1" (140.0 cm)
Weight
62 lbs (28 kg)
Warranty
Cartoni warranty
