Cartoni P7SI1 P70 Pneumatic Pedestal System Sigma Fluid
Cartoni

Cartoni P7SI1 P70 Pneumatic Pedestal System with Sigma Fluid Head & 2 Pan Bars

SKU: CCP7SI1 MFR: P7SI1
What's Included
What's Included With This Item:
  • Cartoni P7SI1 P70 Pneumatic Pedestal System
  • Sigma Fluid Head
  • 2 x Pan Bars
  • Cartoni Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$18,484.95
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The Cartoni P7SI1 Pedestal System is a lightweight, yet paradoxically thoroughly robust, pedestal for handling payloads up to 150 lbs (68.0 kg) in outside broadcast settings. The one-shot pneumatic column may be pressurized using bottled gas, a compressor, or manually with no danger of over-inflation, thanks to a built-in safety valve.

The dolly is foldable for easy transport and comes equipped with 4.5" (125mm) twin wheels which may be replaced with optional 7.8" (200mm) pneumatic wheels. Designed to support cameras weighing from 10 kg (22 lbs) to 40 kg (88 lbs) the CARTONI SIGMA combines a wide range of counterbalance capabilities with an outstanding fluid damping system.

What's Included With This Item

  • Cartoni P7SI1 P70 Pneumatic Pedestal System
  • Sigma Fluid Head
  • 2 x Pan Bars
  • Cartoni Warranty

Key Features

  • P-70 Pedestal: Payload capacity of 150.0 lbs (68.0 kg) with pneumatic positioning
  • 17.7" (45.0 cm) Steering wheel
  • Column equipped with safety valve to prevent over-inflation
  • Folds down easily and compactly without tools, for convenient transport
  • On-shot stroke capability of 19.7" (50.0 cm)
  • 125 mm twin wheels with fast-action brakes and cable guards

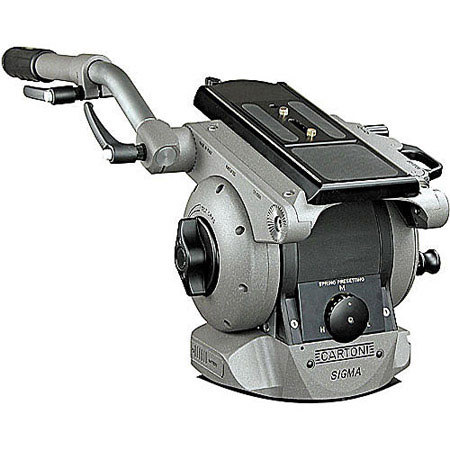

  • Sigma Fluid Head: The head comes equipped with two telescopic pan bars, illuminated spirit level and digital readouts for drag and counterbalance settings

Technical Specs

Load Capacity 88 lbs (40 kg)
Trim Weights No
Bowl Diameter/Thread 100 mm
Steering Ring Diameter 17.7" (45.0 cm)
Post Stages 1
Post On-Shot Stroke 19.7" (50.0 cm)
Dolly Doorway Tracking Width 39.4" (100.0 cm)
Dolly Wheel Diameter 4.5" (12.5 cm)
Minimum Height 30" (75 cm)
Maximum Height 55.1" (140.0 cm)
Weight 62 lbs (28 kg)
Warranty Cartoni warranty
