Cartoni P90MA1 P-90 Pedestal with Master Fluid Head & 2 Pan Bars

Cartoni P90MA1: Picture 1 thumbnail Cartoni P90MA1: Picture 2 thumbnail Cartoni P90MA1: Picture 3 thumbnail Cartoni P90MA1: Picture 4 thumbnail Cartoni P90MA1: Picture 5 thumbnail Cartoni P90MA1: Picture 6 thumbnail Cartoni P90MA1: Picture 7 thumbnail Cartoni P90MA1: Picture 8 thumbnail

List Price: $33,820.00

Free Shipping

See all shipping options

Drop Ship - This item is typically shipped to you directly from Manufacturer within 2-5 Days. Delivery is subject to availability. learn more

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Cartoni P90MA1

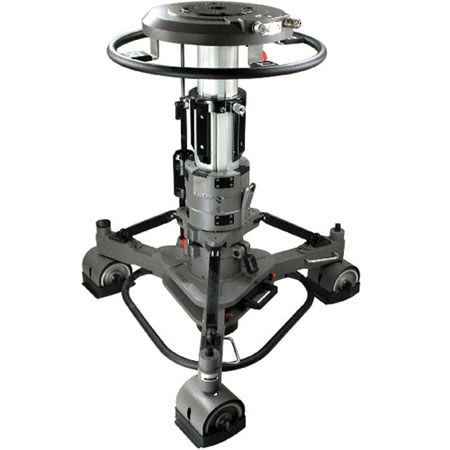

The Cartoni P90MA1 Pedestal System is the P-90 pedestal with the Master fluid head and two pan-bars. This system is compact and portable, yet it will work with a 66 lb camera, lens and teleprompter combination.

Designed to support cameras weighing from 10 kg (22 lbs) to 30 kg (66 lbs) the Cartoni Master combines a wide range of counterbalance capabilities with an outstanding fluid damping system.

Cartoni P90MA1 Features

  • Flat Base: This system comes with a flat base adapter for heads that utilize flat base attachment
  • On-Shot Stroke: The two stage column enables an "on-shot" stroke 77mm with one smooth and precise movement of the camera operator. The column works with compressed air and can be serviced with a hand pump
  • Dolly: The dolly is equipped with double wheels interlocked by a chain operating accurate synchronous travel and steering
  • Crab Position: he crab position capability allows for movement through narrow doorways

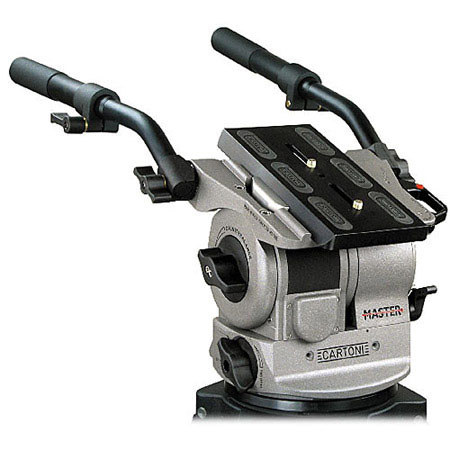

  • Master Fluid Head: The frictionless variable fluid modules perform a wide variety of fluid drag allowing smooth and precise movements in any shooting situation

Cartoni P90MA1 Specifications

Load Capacity
66 lbs, 30 kg
Trim Weights
Bowl Diameter/Thread
Flat Base Adapter
Steering Ring Diameter
22.6", 57.5cm
Post Stages
2 Stages
Post On-Shot Stroke
30.3", 77cm
Dolly Doorway Tracking Width
31.4", 80cm
Dolly Transit Doorway Width
31.4", 80cm
Dolly Narrow Doorway Width
31.4", 80cm
Dolly Wheel Diameter
49.2", 125cm
Dolly Wheel Lock
Dolly Cable Guards
Minimum Height
25.9", 66cm
Maximum Height
56.2", 143cm
110 lbs, 50 kg
Cartoni warranty
Mfr #
