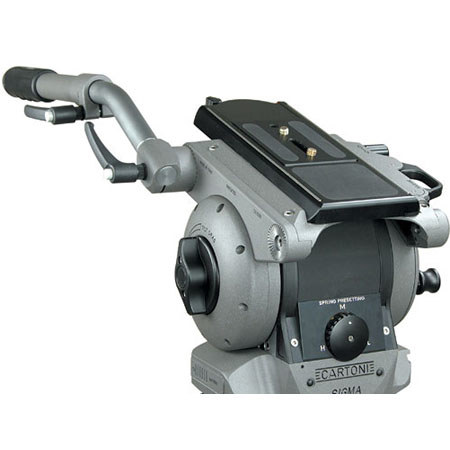

Cartoni S100 Fluid Head (Mitchell Base), Supports 88 with 2 Pan Bars
What's Included With This Item:
- Cartoni S100 Sigma Fluid Head
- 2x Telescopic Pan Bar (#S109)
- Camera Mounting Plate (#K512)
- Cartoni Warranty
The Cartoni S100 Sigma Fluid Head combines a patented counterbalance system with an advanced damping module for both pan and tilt functions. The continuously variable counterbalance system is ideally suited to operate with cameras featuring a high center of gravity and weighing from 45 - 100lbs.
The frictionless damping modules, features a new patented "planetary" design, which provides for extraordinary performances over an extended temperature range, with smooth and precise movements together with a linear response in any critical environment.
And for ease of use the counterbalance and damping system are connected to easy-to-read digital readouts, allowing quick set up even in low light situations.
The Sigma interfaces directly with any Mitchell or 150mm bowl base and can be easily mounted on top of all existing pedestals featuring the 4-hole bores. Comes provided with an integral soft grip-carrying handle, two telescopic pan bars and illuminated spirit level.
|Load Capacity||100.0 lb|
|Counter Balance System||Single Spring Module|
|Counter Balance Range||45 to 100 lb, Continuously Adjustable|
|Center of Gravity||8"|
|Quick Release/Wedge Plate||Yes (Cat #K512)|
|Balance Plate||90mm Sliding Plate, 2x 3/8" Screws|
|Tilt Drag||Continuously Adjustable|
|Pan Drag||Continuously Adjustable|
|Leveling Bubble/Illuminated||Yes, Illuminated|
|Temperature Range||-22° to +158°F (-30° to +70°C)|
