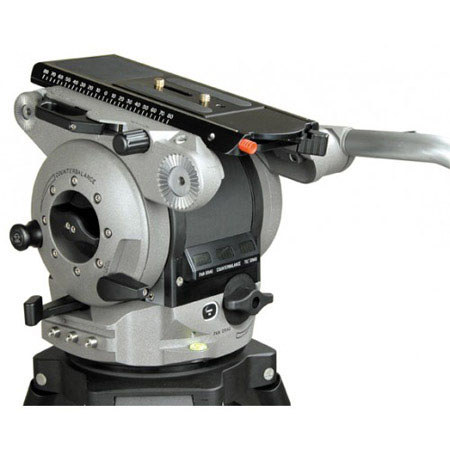

Cartoni S101 Fluid Head (Flatbase) with Short Handle & 1 Pan Bar Handles, Supports 88 lbs

SKU: CCS101 MFR: S101
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$9,895.00 List Price

Our Price

$9,299.99
Free Shipping
Qty:

Add to Wishlist

About the Cartoni S101

The Cartoni S101 Sigma Fluid Head (Flatbase) with 1 Pan Bar combines a patented counterbalance system with an advanced damping module for both pan and tilt functions. The continuously variable counterbalance system is ideally suited to operate with cameras featuring a high center of gravity and weighing from 45 - 100lbs.

The frictionless damping modules, features a new patented "planetary" design, which provides for extraordinary performances over an extended temperature range, with smooth and precise movements together with a linear response in any critical environment.

And for ease of use the counterbalance and damping system are connected to easy-to-read digital readouts, allowing quick set up even in low light situations. The Sigma interfaces directly with any Mitchell or 150mm bowl base and can be easily mounted on top of all existing pedestals featuring the 4-hole bores. Comes provided with an integral soft grip-carrying handle, two telescopic pan bars and illuminated spirit level.

Cartoni S101 Includes

  • Cartoni S101 Sigma Fluid Head (Flatbase)
  • 1x Telescopic Pan Bar Handle (#S109)
  • 1x Short Pan Bar Handle
  • Camera Mounting Plate (#K512)
  • Cartoni Warranty

Cartoni S101 Features

  • Continuously Adjustable Counterbalance System: The Sigma features continuously adjustable counterbalance system allows the cameraperson to fine-tune an extremely wide range of cameras featuring a high center of gravity and weighing from 45 - 100 lbs throughout a tilt range of -/+ 90 degrees
  • Variable adjustment connected to a digital readout display, the counterbalance-operating knob is conveniently located on the side of the head.
  • Pan and Tilt Control: Features frictionless damping modules, with a new patented "planetary" design, which provide extraordinary performances over an extended temperature range, with smooth and precise movements together with a linear response in any critical environment
  • The rear panel the continuously variable fluid control knobs are easy to reach and have the benefit of a digital readout, which allows the cameraman for a quick set-up even in low light conditions.
  • Built-in illuminated spirit level allows easy set-up even in low light conditions
  • Integral soft grip carrying handle
  • Maximum load capacity of: 100 lb

Cartoni S101 Specifications

Load Capacity 100.0 lb
Diameter/Thread Flatbase
Counter Balance System Single Spring Module
Counter Balance Range 45 to 100 lb, Continuously Adjustable
Center of Gravity 8"
Quick Release/Wedge Plate Yes (Cat #K512)
Balance Plate 90mm Sliding Plate, 2x 3/8" Screws
Tilt Drag Continuously Adjustable
Tilt Range -90/+90°
Tilt Lock Yes
Pan Drag Continuously Adjustable
Pan Range 360°
Pan Lock Yes
Leveling Bubble/Illuminated Yes, Illuminated
Temperature Range -22° to +158°F (-30° to +70°C)
Weight 22.0 lb
Warranty Cartoni warranty
