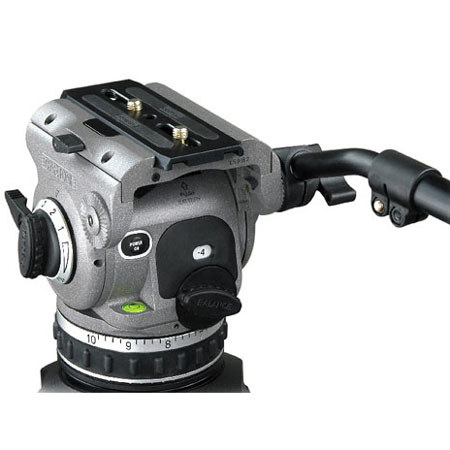

Cartoni Z100 Laser 100mm Ball Base ENG Fluid Head
What's Included With This Item:
- Cartoni 1x Telescopic Pan Bar (#G200)
- Camera Mounting Plate (#Z125)
- Tie Down Cup (#B466)
- Cartoni Warranty
The Cartoni Z100 Laser 100mm Ball Base ENG Fluid Head is designed for performing ENG digital camcorders weighting from 8 to 22 lbs. The Laser fluid head employs the latest in design and state-of-the-art materials giving the operator an extremely rugged, lightweight and cost-effective camera support. Offering a host of advanced features including infinitely adjustable tension settings, a perfect counterbalance system and illuminated bubble level.
The award winning, patented fluid damping system ensures consistent drag levels and smooth camera movements throughout the range and allows continuous adjustments in both pan and tilt modes. Featuring an infinitely variable counterbalance with easily readable numerical reference, it provides excellent performance at any tilt angle from +90 to -90 degrees.
Outstanding compensation performances are obtained throughout the tilt range, even for critical positions at +/-60 degrees, with a an extremely compact counterbalance mechanism based on the combined compression of 4 flexible elements controlled by an ergonomic knob.
|Load Capacity||22 lb|
|Diameter/Thread||100mm 4" Half Ball|
|Counter Balance System||4 Flexible Elements|
|Counter Balance Range||8 to 21 lb, Continuously Adjustable|
|Center of Gravity||5"|
|Quick Release/Wedge Plate||Yes (Cat #Z125)|
|Balance Plate||Sliding, 2x 3/8" Screws|
|Tilt Drag||Continuously Adjustable|
|Pan Drag||Continuously Adjustable|
|Leveling Bubble/Illuminated||Yes, Illuminated|
|Temperature Range||-22° to +140°F (-30° to +60°C)|
