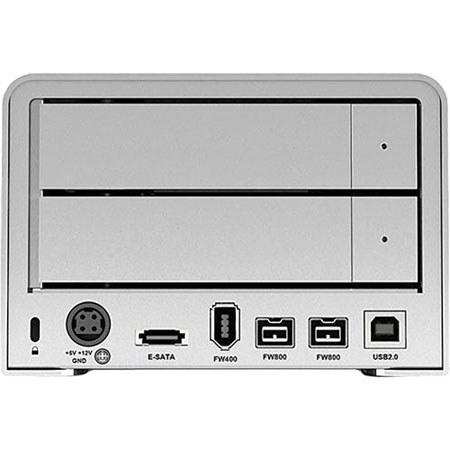

CalDigit VR Two Drive RAID System, Upto 6TB, eSATA/FireWire 800/400/USB 2.0

SKU: CD720516

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2013-03-11T21:00:00

Rated 5 out of 5

Big value in a small package!

I have many of these in production and they are all reliable workhorses!

Roy B.

CalDigit VR Two Drive RAID System, Upto 6TB Specifications

  • Capacity

    Up to 6TB

  • Host Interface

    eSATA x 1
    FireWire 800 x 2
    FireWire 400 x 1
    USB 2.0 x 1

  • Interface Transfer Rate

    eSATA: up to 3Gbits/s
    FireWire 800: up to 800Mbits/s
    FireWire 400: up to 400Mbits/s
    USB 2.0: up to 480Mbits/s

  • RAID Function

    Supports RAID 0, 1, Spanning, JBOD
    Automatically online fast disk rebuilding
    Automatic disk failure detection
    Hot swappable disks
    SATA interface only supports RAID 0, 1 and Spanning

  • Full range AC Input

    100 - 240V, 50-60Hz, 1.5A

  • DC Output

    5V/4.2A, 12V/3A

  • Power plug

    4Pin

  • Fan Module: Size (L x W x H)

    50 x 50 x 10mm / 1.97 x 1.97 x 0.39in

  • Fan Module: Rated Voltage

    DC 12V, 45mA

  • Fan Module: Speed

    3000 R.P.M. +/- 10%

  • Fan Module: Airflow

    7.1 CFM(ft3/min)

  • Fan Module: Noise Level

    16.0 dB(A)

  • System Requirements

    Windows 2000, XP, Vista, 7(32 or 64bit)
    Mac OS 10.4 or later

  • LCD Module

    Displays RAID information
    Displays system temperature

  • Dimensions (H x W x D)

    3.6 x 5.3 x 8.5 in / 92 x 134 x 216 mm

  • Weight

    6.6lbs / 3.0 kg

About CalDigit VR Two Drive RAID System, Upto 6TB

The CalDigit 720516 VR is the most complete two drive RAID system on the market today. It offers unmatched performance, impressive connectivity and superior quality all in a sleek and easily upgradeable enclosure that is both portable and functional. The CalDigit VR features true hardware RAID, which provides an independent CPU and dedicated cache memory to manage the RAID volume. This dedicated processor eliminates additional strain from the host system's CPU, allowing applications full access.

The quadruple interface supports USB 2.0, FireWire 400, FireWire 800 and eSATA, making the CalDigit VR extremely versatile. Two FireWire 800 ports make it easy to daisy chain multiple CalDigit VRs together without any performance loss. The CalDigit VR uses two hot-swappable drive modules, allowing easy replacement and expansion. The modular design even allows for easy replacement of the fan.

CalDigit VR Two Drive RAID System, Upto 6TB Features

  • The CalDigit VR uses two hot-swappable drive modules, allowing easy replacement and expansion. The modular design even allows for easy replacement of the fan
  • The CalDigit VR can reach speeds over 250 MB/s in RAID 0, and over 160 MB/s with RAID 1 protection. RAID 1 provides the ultimate in protection and backup for valuable data by mirroring data on both drives. If a drive fails, all data can be restored
  • The CalDigit VR comes with RAID Tool, a unique software that provides easy management, monitoring, diagnostic reports, email notification and firmware update capabilities. This provides users with interactive assurance
  • This easy to use software is the command center for the CalDigit VR, which allows users to update the firmware. Other two drive arrays lack this important capability, which allows for additional features as well as bug fixes
  • The CalDigit VR also utilizes a LCD screen that provides detailed information about temperature, fan RPM and hard drive health, so you are always in the know. It also allows configuration without being attached to a computer
  • The energy saving, ambient temperature-controlled smart fan runs only when the CalDigit VR needs it most. It runs extremely quiet, ensuring proper airflow and advanced cooling without compromise
  • In addition, the CalDigit VR is designed with an all aluminum enclosure to assist with heat dissipation. The CalDigit VR takes advantage of the latest technology, ensuring both a cool and quiet experience
  • The CalDigit VR includes a security lock as well as locking drive modules. For sensitive data, RAID Tool software provides password protection against unauthorized changes
  • The easy to read back lit LCD provides valuable data and added confidence that is just a glance away. Additionally, the LED status lights provide a visual representation of the CalDigit VR's operation. It also allows configuration without being attached to a computer

What's in the box:

  • CalDigit VR Two Drive RAID System
  • 1x Driver CD
  • 1x eSATA Cable
  • 1x AC Adapter
  • 1x FireWire 800 Cable
  • 2x Key
  • CalDigit Warranty
