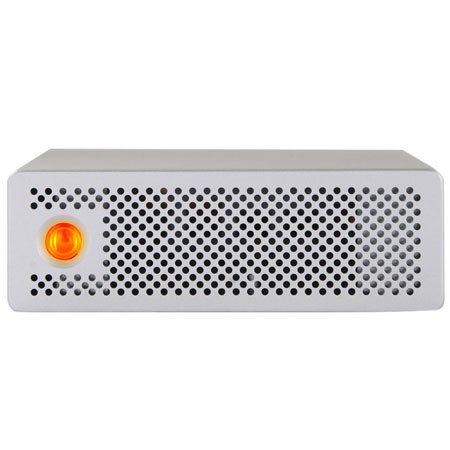

CalDigit AV Single Drive 1TB, USB 3.0 and FW800, for Mac & Windows

SKU: CD791903

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

CalDigit AV Single Drive 1TB, USB 3.0 and FW800 Specifications

  • Interface

    1 x USB 3.0 Super Speed port
    2 x IEEE 1394b ports
    USB 3.0 up to 5Gbps
    USB 2.0 up to 480Mbps
    IEEE 1394B up to 800Mbps

  • Fan: Size (L x W x H)

    40 x 40 x 10 mm / 1.57 x 1.57 x 0.39 inches

  • Fan: Rated Voltage

    DC 12V, 45mA

  • Fan: Speed

    3700 R.P.M. +/- 10%

  • Fan: Airflow

    3.5 CFM (ft3/min)

  • Fan: Noise Level

    16.0 dB(A)

  • Storage

    Single 7200 RPM SATA II 3G hard drive

  • Operating Temperature

    0 - 40 deg.C

  • Storage Temperature

    -20 - 60 deg.C

  • Operating Humidity

    20%RH - 80%RH

  • Storage Humidity

    10%RH - 80%RH

  • System Requirements

    Windows 7, Vista, XP
    Mac OS 10.6, 10.5, 10.4
    Linux: Red Hat, SUSE, Fedora, CentOS, Debian, etc

  • Power supply

    AC Power Adapter Full range
    Input: AC 100-240V-1.3A, 50-60Hz
    Output: DC 12V, 3A Max

About CalDigit AV Single Drive 1TB, USB 3.0 and FW800

The CalDigit AV Drive is one of the most uniquely designed single drive systems on the market. It features the first dual interface with USB 3.0 and FireWire 800 connectivity. The CalDigit AV Drive is the first USB 3.0 drive for the Mac, all in a sleek and compact design. The CalDigit AV Drive can reach extreme speeds up to 145MB/s. The CalDigit AV Drive features USB 3.0 allowing it to reach speeds over 145MB/s, all from a single drive.

Specially designed for audio and video applications, the CalDigit AV Drive can handle some of the most demanding media formats. USB 3.0 speeds are up to 5 Gbps, much faster than most of today's popular interfaces. If you don't have USB 3.0 yet, FireWire 800 will allow you to connect to your current computer. Then when you get the CalDigit Super Speed PCI Express Card or a USB 3.0 equipped computer, you will be ready to start using the CalDigit AV Drive at the fastest possible speeds.

The CalDigit AV Drive is available individually or bundled with the CalDigit Super Speed PCI Express Card for systems without built-in USB 3.0 support. CalDigit also features a Super Speed Express Card for laptops with expresscard support. The USB 3.0 port on the CalDigit AV Drive is USB 2.0 compatible. When using USB 3.0, throughputs of up to 5Gb/sec can be reached. CalDigit has developed the first USB 3.0 driver for the Mac OS, allowing Macs with the CalDigit Super Speed PCI Express Card to run the CalDigit AV Drive using USB 3.0.

CalDigit AV Single Drive 1TB, USB 3.0 and FW800 Features

  • The CalDigit AV Drive features the latest in FireWire technology from CalDigit. Unlike other FireWire 800 drives on the market, which have typical speeds of 58MB/s though 74MB/s, the CalDigit AV Drive can achieve speeds of 85MB/s
  • The CalDigit AV Drive is designed to work the way you work. With an optional rack mount kit, the CalDigit AV Drive can be mounted for use in the studio
  • Its portable design makes the CalDigit AV Drive easy to bring on the road. It goes where you go, so fast storage is always in reach
  • The CalDigit AV Drive is designed with an all aluminum enclosure to assist with heat dissipation to protect your drive
  • The CalDigit AV Drive is a single drive system designed with the user in mind. The sleek and sexy design is as functional as it is good looking. A front side power button makes powering the unit on and off a breeze and the all aluminum enclosure provides additional heat dissipation

What's in the box:

  • CalDigit AV Single Drive 1TB
  • 1x IEEE1394 9 to 9 Pin Cable 1m
  • 1x PCI Express-2.0 USB 3.0 2-Port Adapter
  • 1x CD Driver
  • 1x Manual (English)
  • 1x AC Adapter
  • 1x AC Power cord (US) 3 Pin
  • CalDigit Warranty
