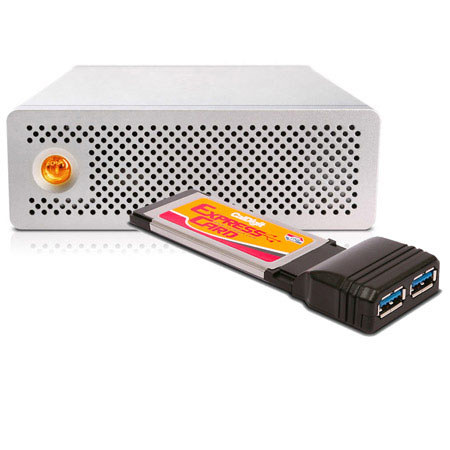

CalDigit 1TB AV Drive with USB 3.0 Card for Laptop, 5 Gbps Speed, Mac/Windows

SKU: CD791953

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

CalDigit 1TB AV Drive with USB 3.0 Card for Laptop Specifications

  • Capacity

    1TB

  • Interface

    1 x USB 3.0 SuperSpeed port
    2 x FireWire 800 ports

  • Rotational Speed

    7200 RPM

  • Cache (Buffer) size

    32 MB

  • Average Seek Time

    8.9 ms

  • Sustained Data Transfer Rate

    USB 3.0: up to 5 Gbps
    USB 2.0: up to 480 Mbps
    FireWire 800: up to 800 Mbps

  • System Requirements

    For Windows Systems: XP, Vista, 7 (Windows 7 required for USB 3.0)
    For Mac Systems 10.4, 10.5, 10.6 (10.5 or higher required for USB 3.0)

  • Mounting

    Desktop

  • Power Requirements

    Input: AC 100 - 240 V, 1.3A, 50 - 60 Hz
    Output: DC 12 V, 3A max
    EMC: CE, FCC, UL, GS, CCC

  • Fan Size

    1.6 x 1.6 x 0.4" (4 x 4 x 1 cm)

  • Fan

    Rated Voltage: DC 12 V, 45mA
    Speed: 3700 RPM (+/-10%)
    Airflow: 3.5 CFM (ft3/min)
    Noise Level: 16 dB(A)

  • Operating Temperature

    32 to 122deg F (0 to 50deg C)

  • Storage Temperature

    -4 to 140deg F (-20 to 60deg C)

  • Operating Humidity

    20 - 80% RH

  • Storage Humidity

    10 - 80% RH

  • Dimensions (W x H x D)

    5.4 x 1.8 x 8.3" (13.6 x 4.6 x 21.1 cm)

  • Weight

    3.3 lb (1.5 kg)

About CalDigit 1TB AV Drive with USB 3.0 Card for Laptop

The CalDigit AV Drive (1TB) With USB 3.0 Card For Laptop combines a high-quality desktop external drive and SuperSpeed Express Card for your PC or Mac laptop. This combo of gear facilitates quick safe storage and backup from your laptop to the 1TB AV Drive via high-speed USB 3.0 connectivity. It reaches rotational speeds of 7200 RPM, enjoys a 32 MB cache and is compatible with both PC and Mac.

The USB 3.0 interface can achieve transfer rates up to 5 Gbps. In order to make their drive more flexible, CalDigit has also equipped the AV Drive with two FireWire 800 ports. Plus, the USB 3.0 is backward compatible with USB 2.0 interfaces as well.

Inside the drive, CalDigit has preloaded AV Drive Assistant, Carbon Copy Cloner, an Intuitive RAID Tool and the software to ensure the AV Drive is Time Machine Ready. The AV Drive also features an intelligent cooling fan and automatic Power Management. The fan runs only when extra cooling is needed. It monitors the temperature, which prevents overheating. The Ambient Temperature Control keeps the drive cool and increases its longevity and reliability. Even the design, with a striking aluminum chassis, works towards heat dissipation.

The Power Management enables automatic turning On and Off in concert with the host computer. Features like this make the AV Drive more energy efficient and environmentally friendly.

CalDigit 1TB AV Drive with USB 3.0 Card for Laptop Features

  • USB 3.0 Interface: The AV Drive offers SuperSpeed USB 3.0 connectivity for both PC and Mac
  • SuperSpeed Express Card For Laptops: The SuperSpeed ExpressCard offers USB 3.0 connectivity to both Mac and PCs with an available ExpressCard/34 slot
  • Optimized FireWire 800: The two FireWire 800 ports on the CalDigit AV Drive have been optimized to provide transfer speeds up to 85 Mbps, making the AV Drive about 30% faster than competing drives. The dual ports also facilitate daisy chaining of multiple drives via the FireWire interface
  • Ambient Temperature Controlled Smart Fan: The fan only runs when extra cooling is needed, keeping it from generating any unnecessary noise. The drive's smart fan technology is always monitoring temperature, which keeps it cool and increases the longevity and reliability of your hard drive
  • AV Drive Assistant: The AV Drive Assistant makes it easy to install and format your drive
  • Carbon Copy Cloner: The inclusion of user friendly software like Carbon Copy Cloner makes it easy to clone, backup, schedule and synchronize your data
  • Intuitive RAID Tool: The RAID Tool is a powerful utility packed with many features in a user-friendly interface. It offers real time information such as drive temperature, health and error logging. RAID Tool can also send email notifications and provides firmware update capabilities
  • Time Machine Ready: The AV Drive is Time Machine ready. Its high transfer speeds make Time Machine backups fast and saves you time when restoring data
  • Automatic Power Management: The AV Drive comes with an automatic power management system that enables it to turn off and on automatically, according to the state of the host computer

What's in the box:

  • CalDigit 1TB AV Drive
  • SuperSpeed ExpressCard for Laptop
  • FireWire 800 Cable
  • AC Power Adapter
  • Power Cord
  • CalDigit 1 Year Limited Warranty
