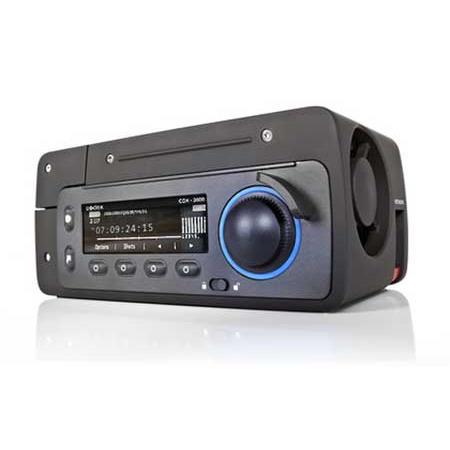

Codex Digital Onboard S Plus Recorder

SKU: CDCDX3601 MFR: CDX-3601
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$15,500.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

With all the reliability you expect from a Codex recorder, only in a smaller package, the Codex Digital Onboard S Plus Recorder can record ARRIRAW, Canon Cinema RAW, uncompressed HD or wavelet encoded HD material - plus audio and metadata - onto a removable, solid-state Capture Drive. It is weather-resistant and weighs only 2.4lbs (1.1kg).

The Onboard S is ideal for smaller cameras like the Canon EOS C500 and C300 and the Sony PMW-F3, as well as the entire ARRI Alexa family. Frame rates of up to 60 FPS 16:9 and 48 FPS 4:3 are supported with the ARRI Alexa. The Codex Onboard S can record up to 120 FPS of Canon Cinema RAW at 4K. With a Codex Media Station or Vault, shots can be delivered from the Codex Capture Drive in multiple industry-standard formats.

Key Features

  • The Codex Onboard S Plus Recorder can record ARRIRAW, Canon Cinema RAW, uncompressed HD or wavelet encoded HD material - plus embedded audio and metadata - onto a removable, solid-state Capture Drive (240 GB or 480GB)
  • It is weather-resistant and weighs only 2.4 lbs/1.1 kgs, making it ideal for smaller cameras like the Canon EOS C500 and 300 and the Sony PMW-F3, as well as the entire Alexa family
  • Frame rates up to 60 frames per second (16:9) or 48 frames per second (4:3) are supported with the Alexa and frame rates of up to 120 frames per second are supported with the Canon C500 at 4K
  • The Capture Drives are fully compatible with the Codex Transfer Station for Mac OS X and the Codex Vault S, allowing for the QC of material, editing of metadata, creation of deliverables and archiving of original camera data

Technical Specs

Video Interface 2 x 4:4:4 Inputs, 2 x 4:2:2 Inputs, 2 x 3G-SDI
1 x 4:4:4 Output, 2 x 4:2:2 Outputs
Recording Formats ARRIRAW
Canon Cinema RAW
Uncompressed HD
Wavelet Encoded HD
Supported Video Formats-1 2048/1920 x 1080 I/PSF 10-/8-BIT YCBYCR 4:2:2 OR 12-/10-/8-BIT RGB 4:4:4 23.98, 24, 25, 29.97, 30 FPS
2048/1920 x 1080P 10-/8-BIT YCBYCR 4:2:2 OR 12-/10-/8-BIT 4:4:4 DUAL-LINK 47.96, 48, 50, 59.94, 60, 100, 119.88 FPS
1280 x 720P 10-/8-BIT YCBYCR 4:2:2 OR 10-/8-BIT RGB 4:4:4 59.94, 60 FPS
Supported Video Formats-2 ARRIRAW 1620P (16:9) 12-BIT BAYER 23.98, 24, 25, 29.97, 30, 48, 50, 59.94, 60 FPS
ARRIRAW 2160P (4:3) 12-BIT BAYER 23.98, 24, 25, 29.97, 30, 48 FPS
Canon Cinema RAW 4096/3840 x 2048P 10-BIT BAYER 23.98, 24, 25, 29.97, 50, 59.94 FPS
Canon Cinema RAW 4096/3840 x 1080P 10-BIT BAYER 50, 59.94, 100, 119.88 FPS
Audio Interface Embedded Digital Audio I/O (8 channels)
3.5MM Stereo Headphone Monitor
Supported Audio Formats 16/24-Bit at 48 KHZ, HD-SDI Embedded
Network Interface 1 x Gigabit Ethernet
Control/Sync Interface X Genlock
1 X LTC Timecode
1 X GPI Record Trigger
1 X RS-4:2:2 Control
Recording Media Solid State 256 - 512 GB Capture Drives
Control Surface Configuration and Recording Using Tactile Control Panel
Power 12 - 34 Volts DC Lemo
Operating Temperature 5-40 Degrees C
Dimensions (WxLxH) 5.47x7.39x3.26" / 13.8x18.7x8.28cm
Weight 2.4lbs / 1.08kg
