Convergent Design nanoFlash Bundle
Convergent Design

Convergent Design nanoFlash Bundle for Panasonic AG-AF100 and AG-3DA1 Camcorder

SKU: CDNF002BUNDL MFR: CD-NF_002-BUNDLE
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$3,145.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

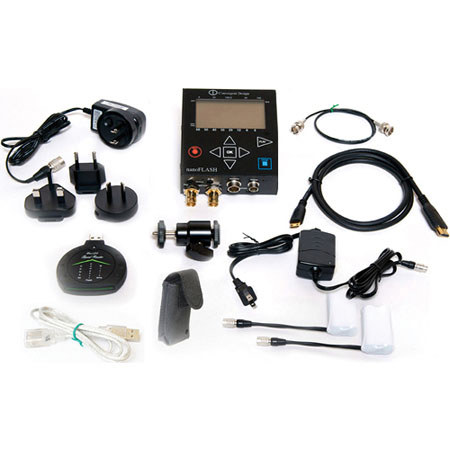

The Convergent Design nanoFlash Bundle for Panasonic AG-AF100 & AG-3DA1 Camcorder consists of a nanoFlash recorder/player, Hotshoe Ball Mount, Battery Pouch, Battery Holder, Two 2-Cell Lithium-Ion batteries, Battery Charger, 18" (45.7 cm) SDI Cable, 3' (91.4 cm) HDMI Cable, AC Power Supply and a USB 2.0 CompactFlash Card Reader. Employing the high-quality Sony 4:2:2 MPEG2 compression codec, the nanoFlash records video, audio and timecode from an HD-SDI stream onto CompactFlash (CF) cards.

Based on the Flash XDR design, the nanoFlash recorder features 2 CF card slots plus embedded audio support (2 channels). The nanoFlash recorder can record MPEG2 audio/video using Long-GOP or Intraframe recording in Quicktime format for Final Cut Pro, MXF for Avid, Sony Vegas and Edius non-linear editors. This enables the users to select the image quality, file size, file type and maximum recording duration. In addition, the recorder supports video format ranging from 720 x 576 @ 25 Hz to 1920 x 1080i @ 60, 59.94, 50 Hz.

The nanoFlash, which is a recorder and player, features HD-SDI I/O, HDMI I/O, LTC in, wired remote control and a power/start/tally light connector. In addition, the nanoFlash recorder can be powered from a camcorder battery (6.5 - 20 VDC) or the included AC power supply. Using the hotshoe ball mount, you can mount the nanoFlash on top of your camcorder.

Key Features

  • Consists of a nanoFlash recorder, Hotshoe Ball Mount, Battery Pouch, Battery Holder, Two 2-Cell Lithium-Ion batteries, Battery Charger, 18" (45.7 cm) SDI Cable, 3' (91.4 cm) HDMI Cable, AC Power Supply, and a USB 2.0 CompactFlash Card Reader
  • Employs high-quality Sony 4:2:2 MPEG2 compression codec
  • Records audio, video, and timecode from an HD-SDI stream onto CompactFlash (CF) cards
  • Based on the Flash XDR design
  • Features 2 CF card slots plus embedded audio support (2 channels)
  • Records record MPEG2 audio/video using Long-GOP or Intraframe recording in Quicktime format for Final Cut Pro, MXF for Avid, Sony Vegas, and Edius non-linear editors
  • Allows users to select the image quality, file size, file type, and maximum recording duration
  • Supports video formats ranging from 720 x 576 @ 25 Hz to 1920 x 1080i @ 60, 59.94, 50 Hz
  • HD-SDI I/O, HDMI I/O, LTC in, wired remote control, and a power/start/tally light connector
  • Powered from a camcorder battery (6.5-20VDC) or the included AC power supply
  • Suitable for applications such as tapeless HD/SD recording and playback
  • Hotshoe Ball Mount Allows you to mount the nanoFlash recorder on top of your camcorder

Technical Specs

Resolutions 1080i 60/59.94/50
1080p 30/29.97/25/24/23.98
720p 60/59.94/50, 486i/576i
XDCAM HD 422 (I-Frame Only) at 100/140/160/220 Mbps
XDCAM HD 422 (Long-GOP) at 50/100/140/160 Mbps
XDCAM EX at 35 Mbps
IMX 422 (Standard-Def) at 50 Mbps
Audio: PCM 24-Bit (recording) / MPEG1 Layer II (ASI)
Recording Time With two 32GB CF cards: 420 minutes at 19 Mbps
160 minutes at 50 Mbps
80 minutes at 100 Mbps
50 minutes at 160 Mbps
Signal Connectors Video In: HD/SD SDI x1, HDMI x1
Video Out: HD/SD SDI x1, HDMI x1
Audio In: 3.5mm Mini x1 (2-CH)
Audio Out: 3.5mm Mini x1
Control: wired remote control port x1
Power Requirements 6.5-19.5VDC
Power Consumption 6W active, 0.1W standby
Dimension (W x H x D) 4.2 x 3.7 x 1.4" (10.7 x 9.4 x 3.6 cm)
Weight 1 lb (0.45kg)
