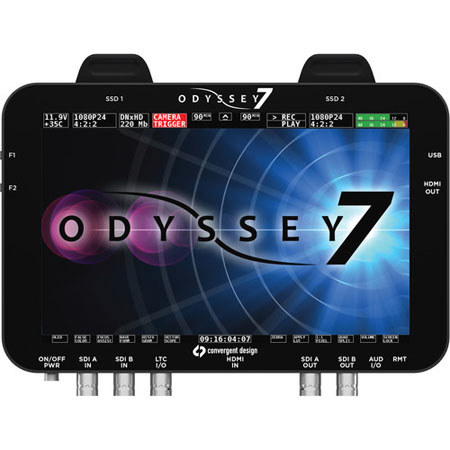

Convergent Design Odyssey7 RAW Monitor & Recorder, 2 In/2 Out, 2 Audio Channels

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,295.00 $52 per week
Free Expedited Shipping
Add to Wishlist In Stock

About the Convergent Design Odyssey7

Odyssey7 and Odyssey7Q. The Odyssey family is intended to follow users as they journey through their careers from DSLRs to high-end 4K raw cine cameras, hugging the ever-changing camera technology curve and adapting to change without invasive hardware changes or costly upgrades. The Odyssey series combines Convergent Design's knowledge and experience of both broadcast and cinematography recorders, while adding the capabilities of a high-end professional monitor for an amazing $1295 USD (Odyssey7 - monitor only)

The Odyssey family is a professional 7.7" OLED monitor with high-end monitor features, including Waveform, Zebras, Histogram, Vectorscope, Focus Assist, False Color, Timecode Display and Audio Level Meters, and 1:1 Pixel mode. Odyssey7 includes HDMI I/O, and SD/HD/3G-SDI I/O; in both single and dual link configurations. As you have come to expect from Convergent Design, Odyssey is low power, lightweight and comes in a rugged magnesium case.

The Odyssey7Q adds two bi-directional SDI's (2-In, 2-I/O, 2-Out), enabling a 4K@60fps-ready option. Additional computational power supports recording/playback of up to four-compressed HD/2K simultaneously, support for one video stream up to 120fps and concurrent proxy and raw recording. Odyssey7Q includes a built-in Quad Splitter and Four-Channel Live Switcher.

Odyssey7 and Odyssey7Q can be upgraded to a full professional recorder with the following options: Compressed (Avid DNxHD up to 120fps), Uncompressed HD/2K RGB 444 (up to 60p), 2K/HD Raw, ARRIRAW (full 16:9 and 4:3 support), and Canon 4K RAW.

Convergent Design Odyssey7 Specifications

Display 7.7" OLED, 1280x800, RGB 8-Bit, 3400:1 Contrast, 176° Viewing, True Blacks
SDI Video I/O SD/HD/3G Support: Single/Dual Link, 2-Inputs, 2-Outputs
SDI Video Formats HD/2K RGB 444 8/10/12-Bit up to 60p/60psf
HD/2K YCC 422 8/10-Bit Up to 120p, QHD/4K 422 up to 30fps
ARRIRAW (16:9) 12-bit up to 60fps, ARRIRAW (4:3) 12-bit up to 48fps
Canon Raw QHD/4K 10-bit up to 60fps
HDMI Video I/O HDMI I/O Version 1.4a support
HDMI Video Formats Up to 1080p60 422 8-bit
LUT Support ARRI, Canon, Sony
Monitor Analysis Tools Focus Assist, YRGB Waveform, Histogram, False Color, Vectorscope, Zebras
H/V Flip/Flop, 1:1 Mode, Recticule Markers, Horizon Indicator
Recorder Options Avid DNxHD up to 1080p30/1080i60, HD/2K Uncompreseed RGB 444 up to 60fps
HD/2K Raw up to 120 fps, ARRIRAW (16:9) up to 60fps, (4:3) up to 48fps, Canon RAW QHD/4K up to 60fps
Record File Formats DNxHD = .mov, Uncompressed = .dpx, HD/2K Raw = .dng
Canon Raw = .rmf, ARRIRAW = .ari
Record Triggers Touchscreen, SDI record trigger (ARRI, Canon, Panasonic, Red, Sony)
Optional remote cable
Digital Audio I/O 2-Channel Embedded Audio (48KHz, 24-bit)
Analog Audio I/O Mono Speaker, 3.5mm headphone output, mono unbalanced consumer input
Remote Control RS-232 I/O, programmable GPIO
Timecode LTC I/O (BNC) or Embedded SDI/HDMI TC
Wireless Control Bluetooth LE with iPhone/Android App
Recording Media 2.5" professional server grade SSD in 240/480/960 GB sizes, 500MB/sec read/write speed, SATA-3 (6 GHz) interface, compatible with off the shelf USB 3.0 and Thunderbolt adapters
User Interface Capacitive Touchscreen, Two mechanical Function Keys
Firmware Update Via USB Port to host computer, download updates from website
DC Power Input 10 to 34 VDC with built-in reverse polarity protection; built-in power switch
Power Dissipation 8 Watts (monitor only), 8-15 Watts (monitor and record mode)
Enviromental 14 to 104°F (Operating), -4 to 158°F (Storage)
-10 to +40°C (Operating), -20 to +70°C (Storage)
Weight 1.2 lbs (540g) cast-magnesium case
Dimensions 7.9 x 6.1 x 1.0" (200 x 155 x 25 mm) measured from end of BNC to SSD tabs
