Coronado

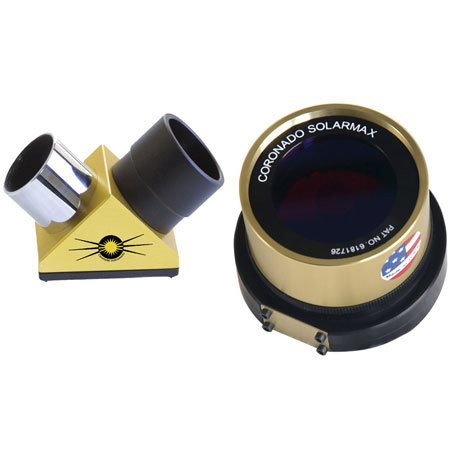

Coronado Solarmax Filter Kit with 40 H-Alpha <.7A, BF-10 Blocker & T-Max Tuner

SKU: CDSM4010 MFR: SM4010
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,799.00 List Price

Our Price

$1,450.00
Free Shipping
Qty:

Add to Wishlist

About this item

The SolarMax 40 system allows for full H-A views of the sun. This highly portable system will work on almost any telescope when attached with an adaptor plate. Adaptor plates are priced separately in accessories. It is sold with a companion T-Max tuner and BF10 blocking filter. The blocking filter is housed in a 1.25" diagonal.

The Advantage of the T-Max:Some events on the Sun,- notably active flares and coronal mass ejections (CMEs), are extremely fast moving. If such features occur on the disc of the Sun, their high velocity towards the observer results in their wavelength being Doppler shifted shorter than Ha. If the velocity is high enough, this wavelength could be outside the passband of the filter and the feature would not be observable. The T-Max allows the user to de-tune the SolarMax slightly to bring such phenomena into better visibility. The T-Max fits between the SolarMax and its adaptor plate. A simple rotary wheel movement accomplishes the tilt necessary to move the passband of the filter. Because of the filter's position at the front end of the telescope, this does not compromise the performance of the filter nor limit the Ha field of view as is the case with rear mounted filters.

Please Note: We are only authorized to sell Coronado Products in North America

What's Included With This Item

  • SolarMax 40 H-Alpha Filter <.7A, T-MAX Tuner, Blocking Filter BF-10 for use on telescopes with focal lengths of 500mm thru 1000mm

Technical Specs

Type AS-1 series thermally stable with hard non-degenerating coatings
Aperture 40mm
Wavelength 6562.8A (H alpha)
Bandwidth <0.7A
