Chief CMS443 Extension Column and Ceiling Mount Kit

Chief

About Chief CMS443

The Chief CMS443 Extension Column and Ceiling Mount Kit is a special kit that includes the Speed-Connect Lightweight Suspended Ceiling System and a Fixed Extension Column. Use this combination unit to install an LCD or DLP projector in a drop down ceiling, where finding hardware that will support the weight of your equipment is a difficult task.

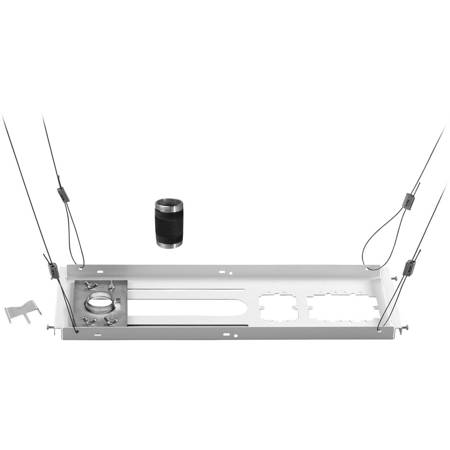

The ceiling kit consists of a metal tray that hangs on cables from the ceiling, yet is still placed above the drop-down ceiling tiles. The extension tube is then mounted to the tray through a hole in a ceiling tile. The projector may then be affixed to the extension pole without regard to its weight, since the ceiling itself and not the drop-down tile is supporting it. The kit will support up to 50 lbs.

Chief CMS443 Features

  • WireVice Cable Suspension System for quick and easy tie-off
  • TwisTile Ceiling Tile Cutter pierces a hole in your tile for column placement
  • Continuously adjustable mounting slot for infinite placement options
  • Single and dual electrical outlet cutouts
  • All-Points Security System exclusive locking hardware at column connection point to protect against theft
  • Includes: (4) 25' flexible cables, (4) wood eyebolts, (4) concrete anchors and a chrome trim ring
  • Fits 24" (600 mm) wide ceiling tile grids
  • 1.5" NPT Compatible

Chief CMS443 Specifications

Construction
Metal
Extension Column
3" (76.2mm)
Load Capacity
50 lbs (22.7 kg)
Dimensions (H x W x D)
1.1" x 24.4" x 8.0" (27 x 619 x 203 mm)
