Chief JWDU Universal Flat Panel Dual Swing Arm Wall Mount, 75 lbs Load Capacity, Black

Chief
SKU: CHJWDUB MFR: JWDUB

See all shipping options

In Stock Online - Usually ships within 2-4 Days learn more

Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Chief JWDU: Picture 1 regular

About Chief JWDU

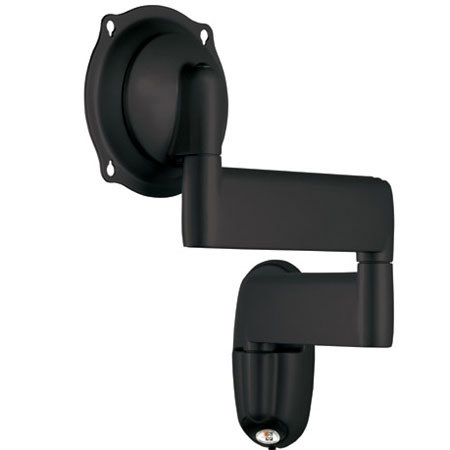

The Chief JWDU Universal Flat Panel Dual Swing Arm Wall Mount (Black) provides a broad range of motion for viewing medium flat panel TVs and monitors from multiple angles. The arm extends out up to 20" and with full swivel and 30deg. of tilt it's easy to find the optimal position to eliminate glare and have the best viewing angle. It comes fully assembled, so all you need to do is attach your television to the arm and the arm to the wall.

Chief JWDU Features

  • Centris Fingertip Tilt provides smooth tilt adjustment in all directions
  • Gravity-centered tilt self-adjusts to securely hold different display weights
  • Teardrop hole pattern makes mounting the screen quick and easy
  • Portrait and landscape screen installation
  • Smooth extension to achieve ideal viewing angle
  • Independently adjustable tension at pivot points for customized control
  • Folds in close to the wall for a low-profile appearance
  • Quick, easy cable management
  • Sleek, attractive design hides all hardware
  • Ships assembled
  • Single stud wall mounting
  • Universal models available for VESA 100 x 100 mm up to 400 x 400mm mounting patterns
  • MSB interface bracket can be purchased separately for non-VESA compatible screens

Chief JWDU Specifications

Maximum Extension
20.38" (517.7mm)
Minimum Depth
2.69" (68.3mm)
Mounting Pattern Compatibility
100 x 100mm (3.93 x 3.93" ) - 400 x 400mm ( 15.74 x 15.74") (Universal Versions)
Orientation
Landscape, Portrait
Post-Installation Leveling (Roll)
Yes
Solution Type
Universal
Tilt
+ 15deg., - 15deg.
Typical Screen Sizes
26 - 45" (660.4 - 1143mm)
Wall Stud Compatibility
Single Stud
Load Capacity
75 lbs (34kg)
Dimensions (H x W x D)
14.7" x 12.1" x 2.7" (373.3 x 307.3 x 68.5mm)
Mfr #
JWDUB
SKU
CHJWDUB
